Torque Specifications

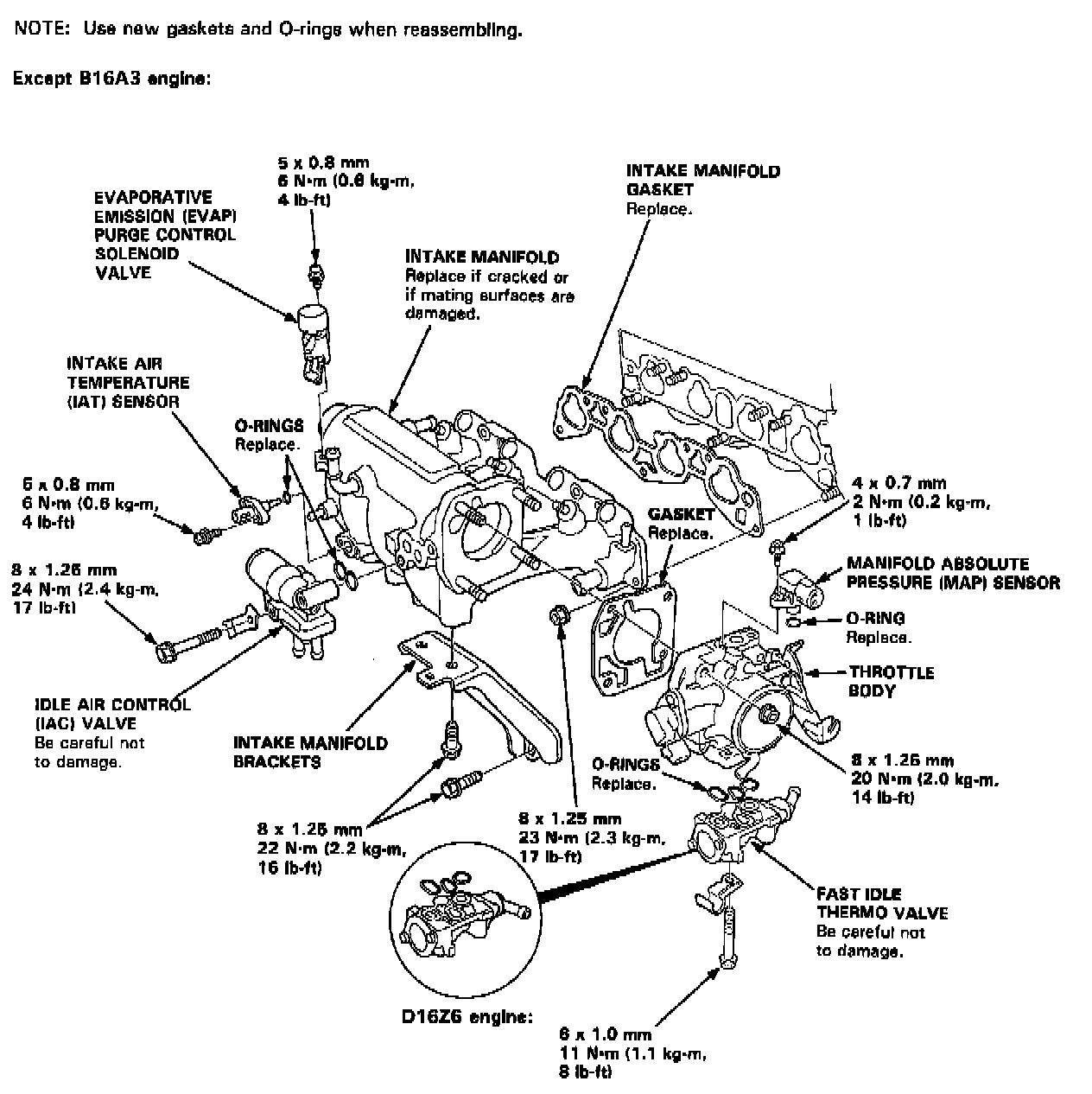

Intake:

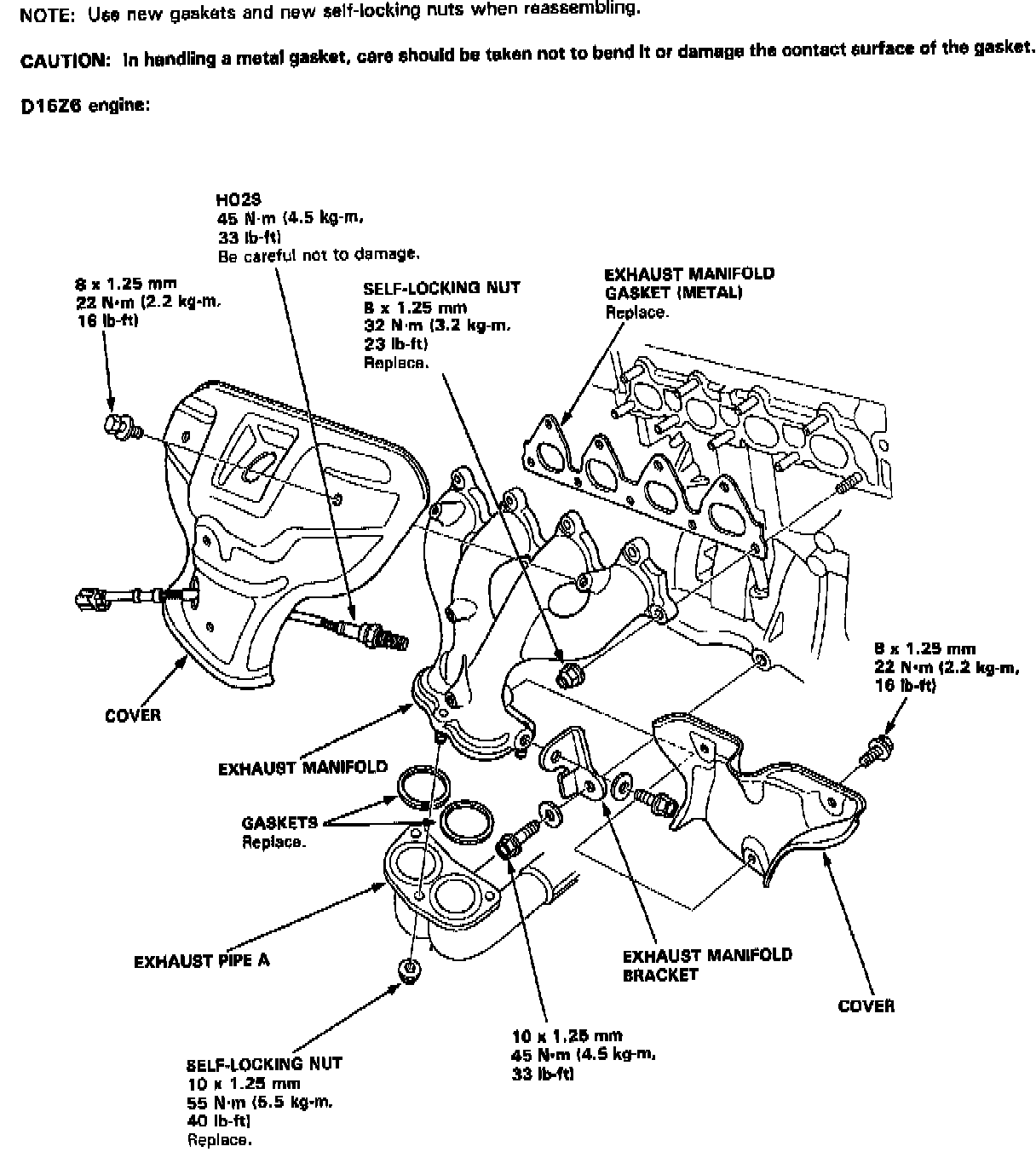

Exhaust Manifold:

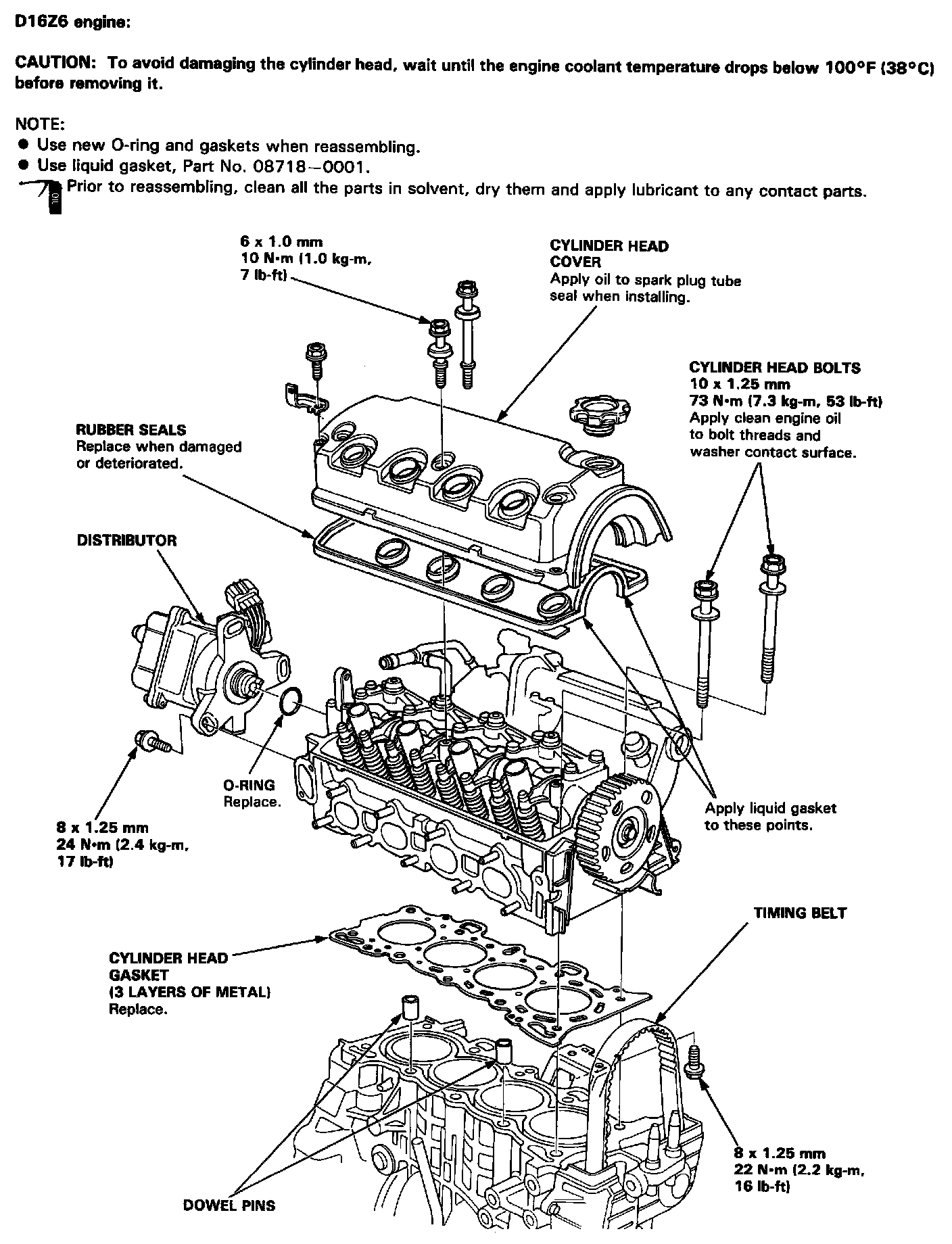

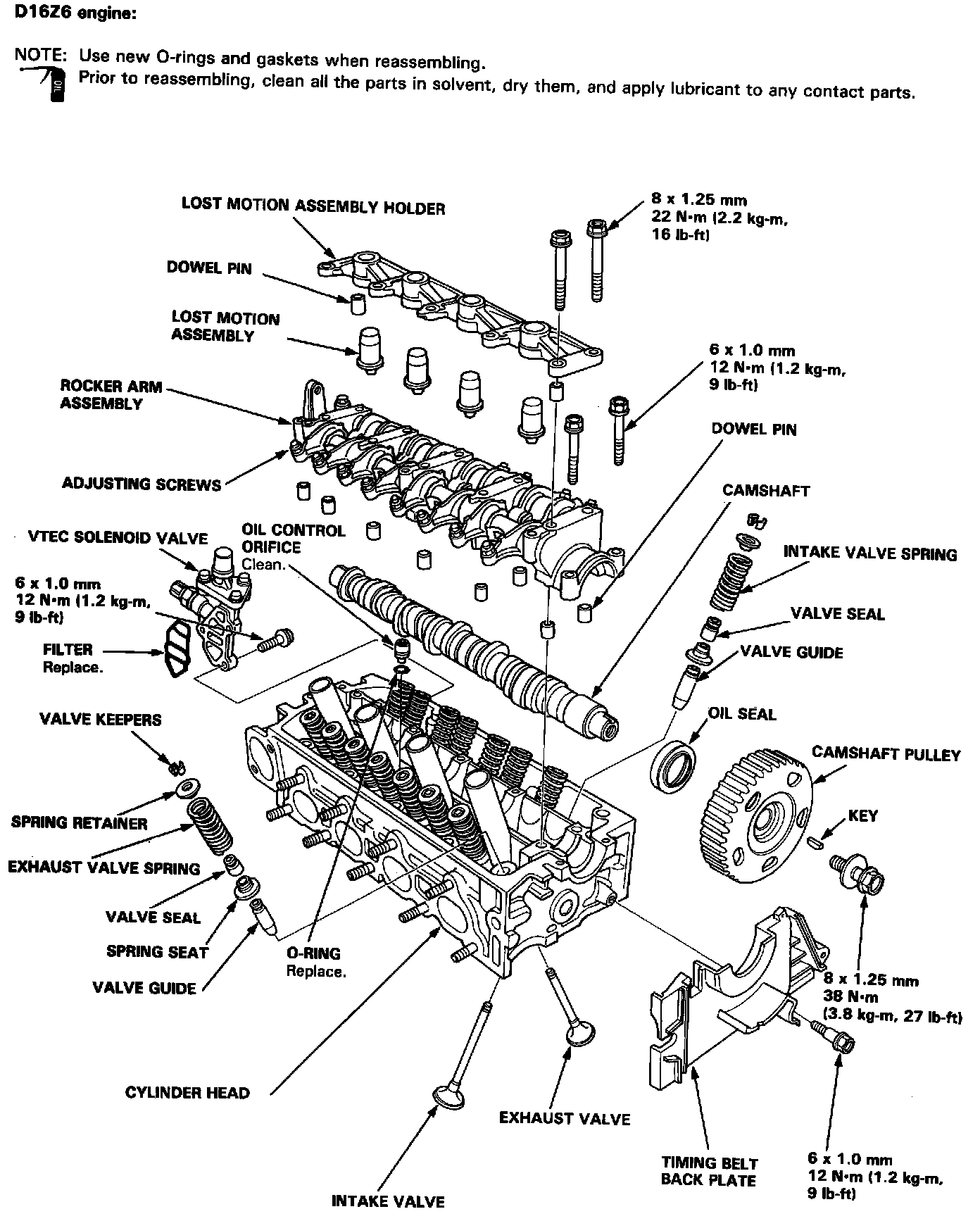

Upper Engine:

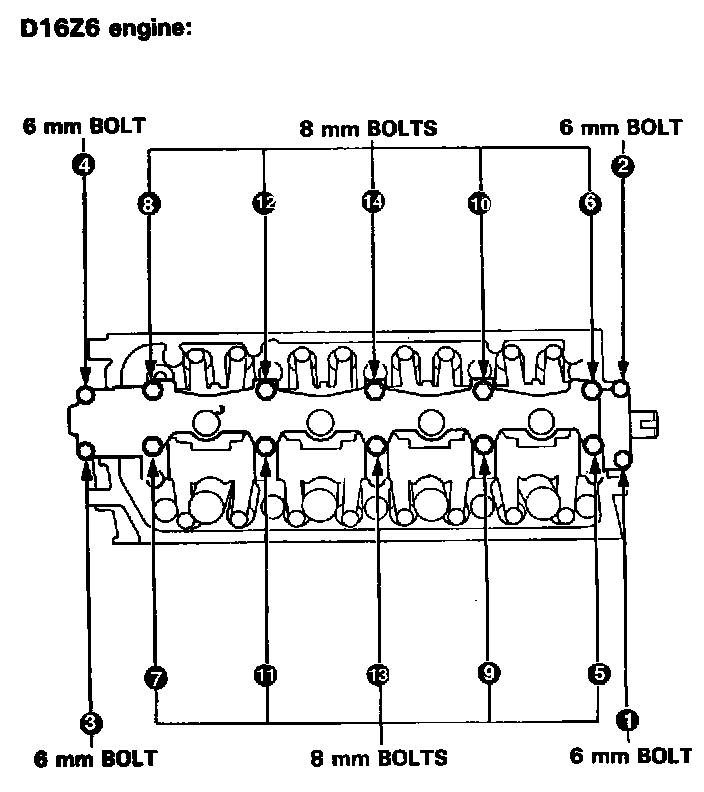

Cam Holder Torque/Sequence:

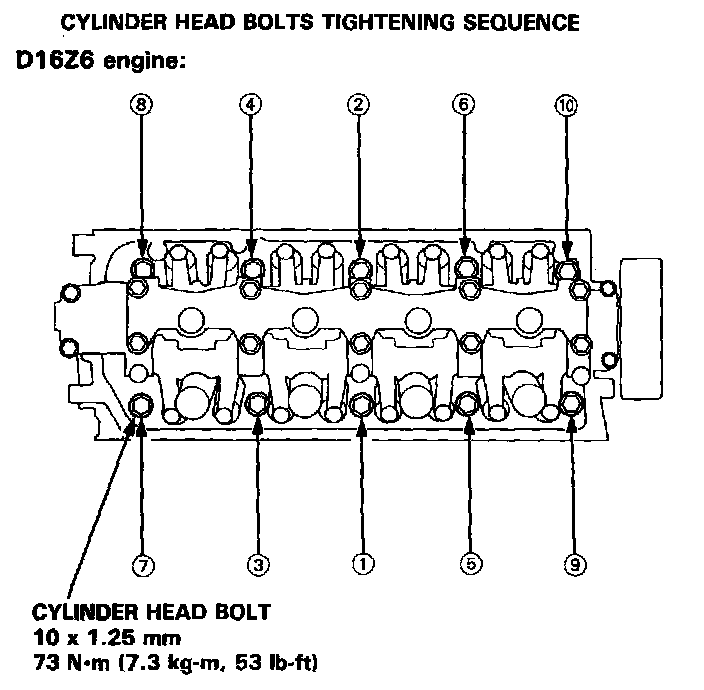

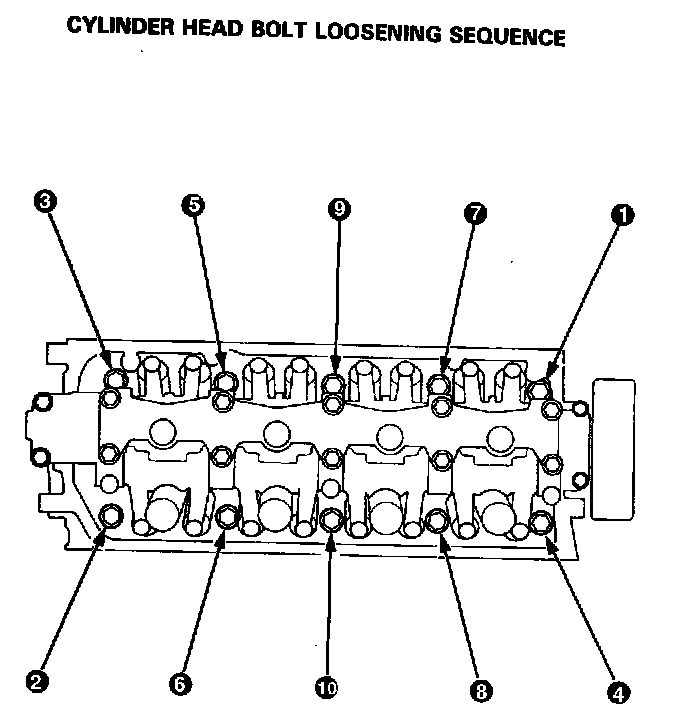

Head Bolt Torque Sequence:

Tighten cylinder head bolts in sequence in two steps:

1st step: 30 N.m (3.0 kg-m, 22 lb.ft)
2nd step: 73 N.m (7.3 kg-m, 53 lb.ft)

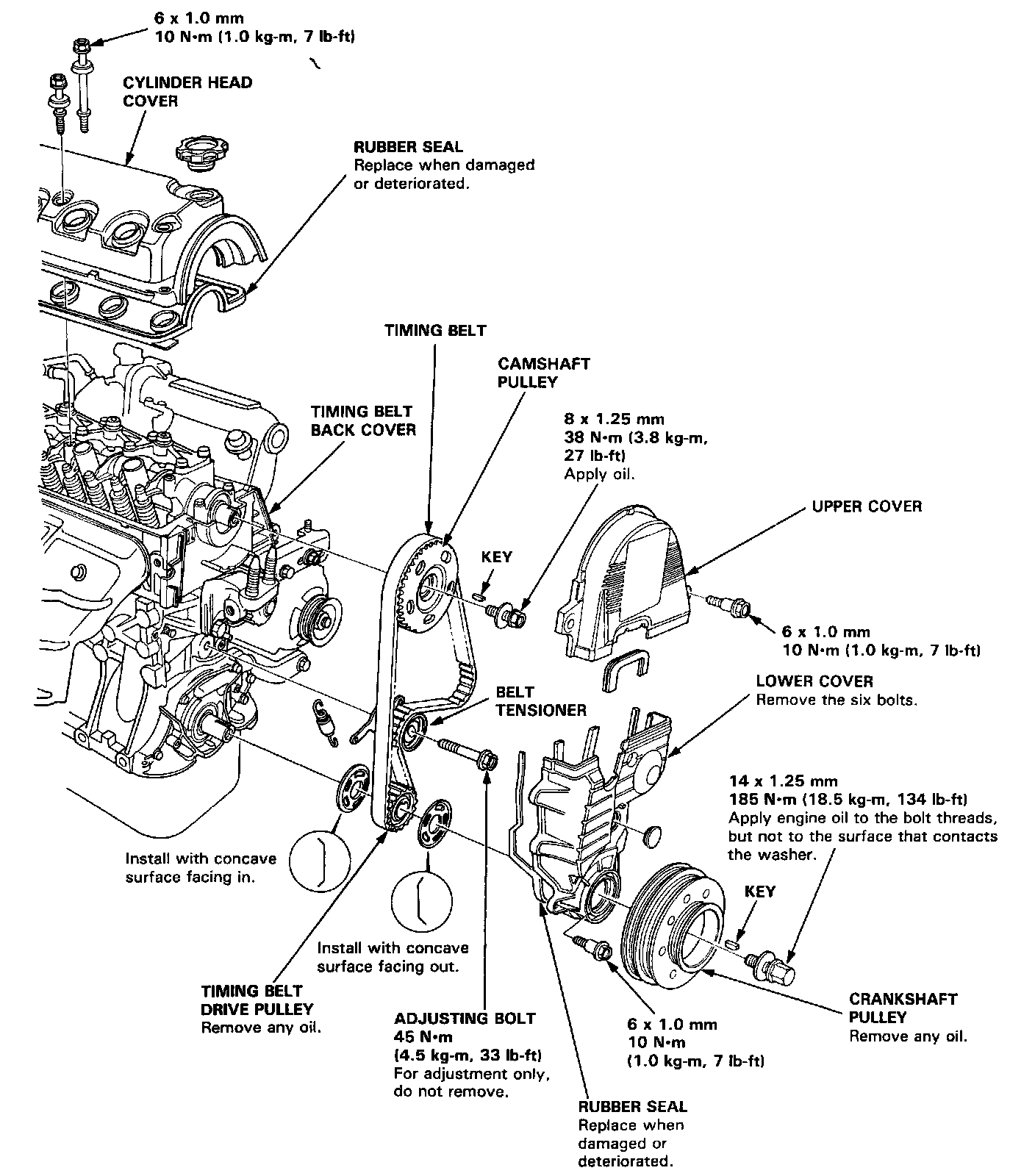

Timing Components:

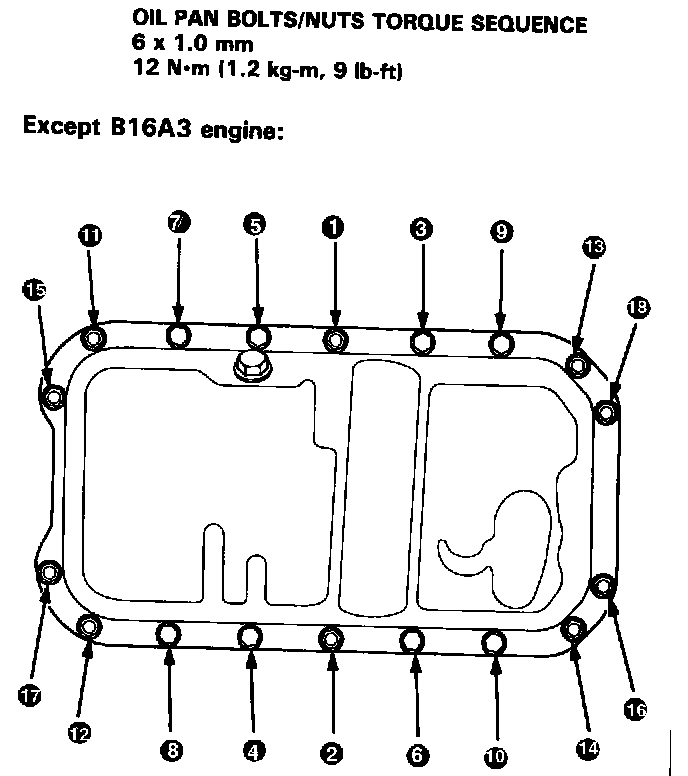

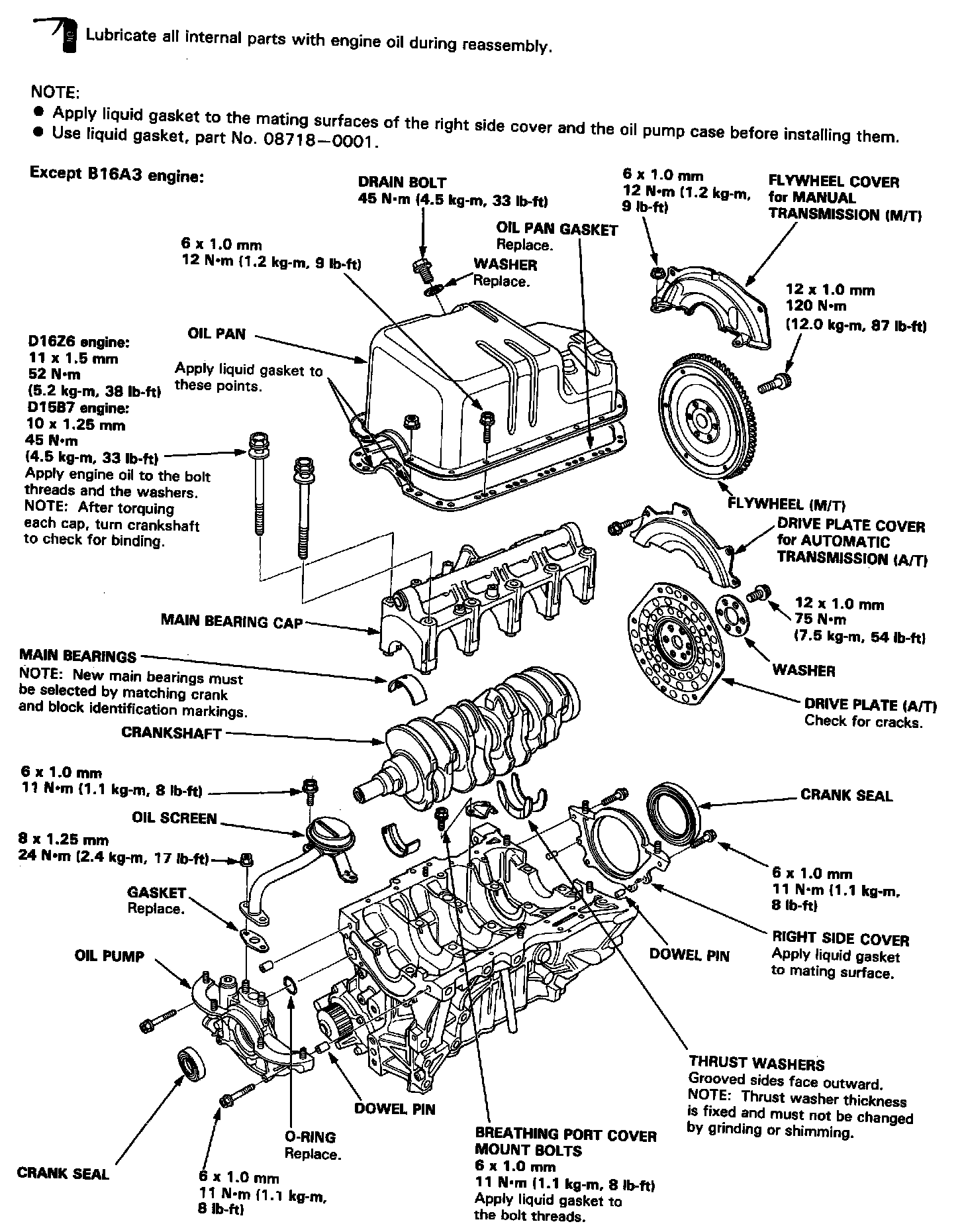

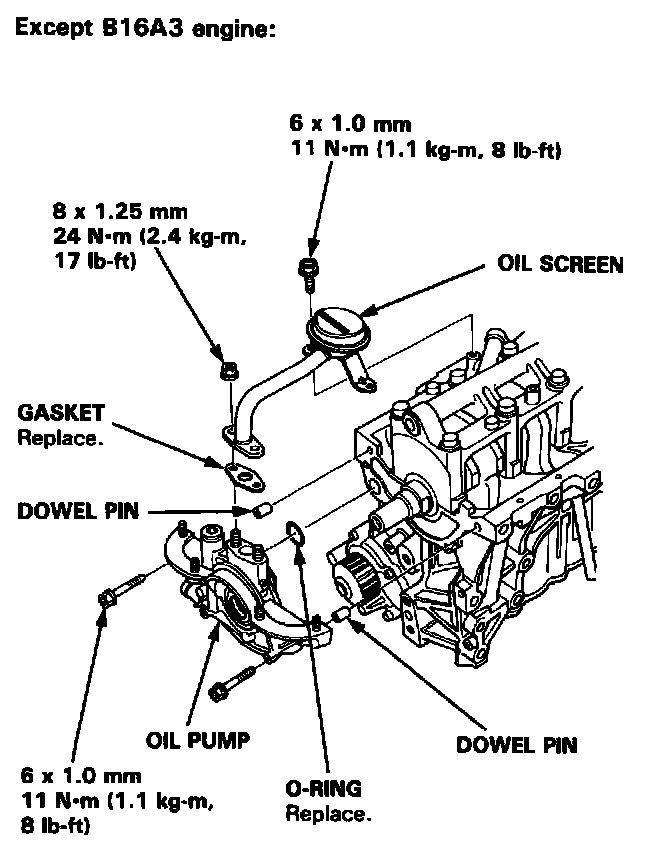

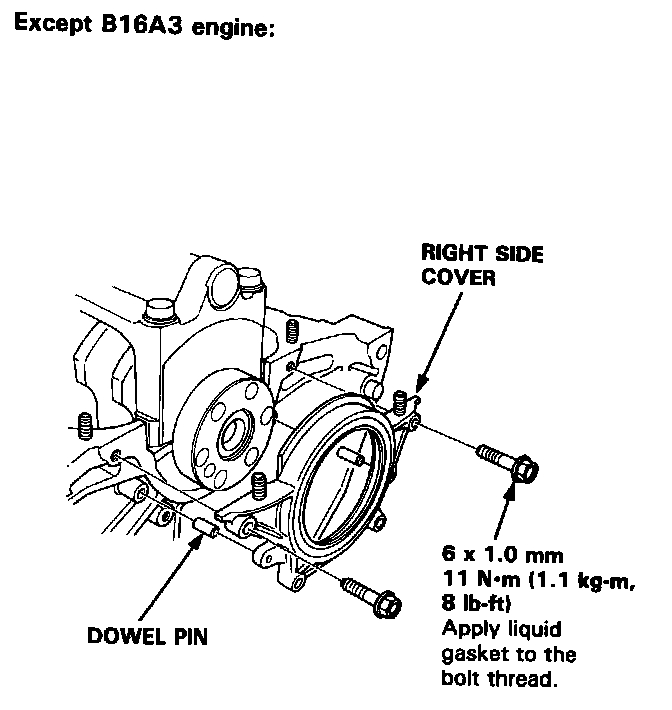

Lower Engine:

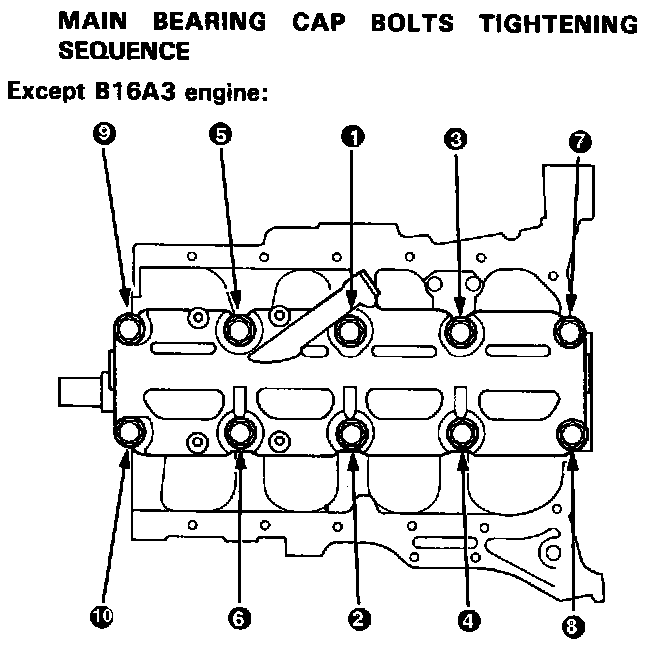

Main Bolt Torque Sequence:

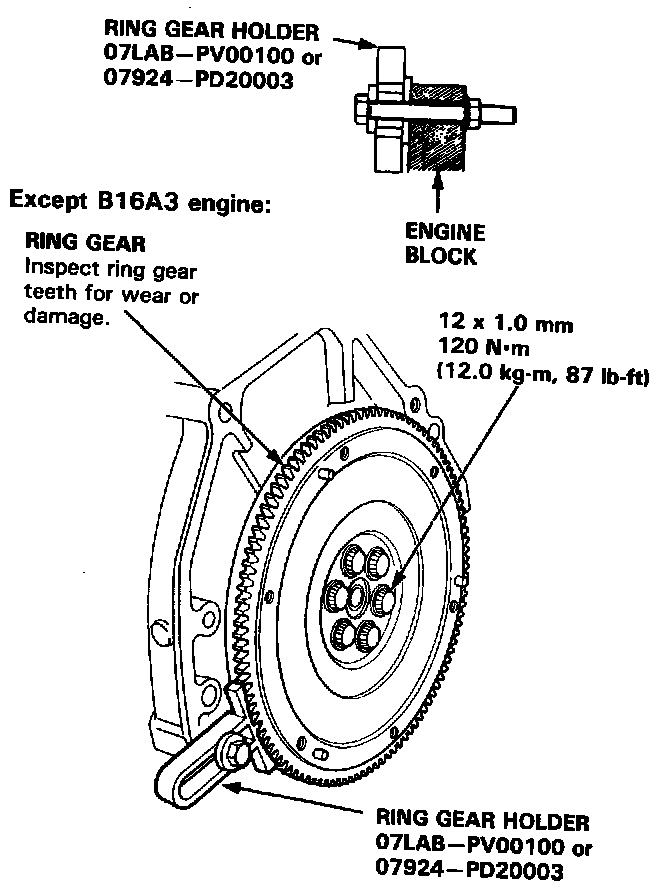

Flywheel (M/T) Torque:

Drive Plate (A/T) Torque:
