Compressor Clutch Relay: Locations
Photo 5 - A/C Pressure Switch:
Left Front Of Engine Compartment

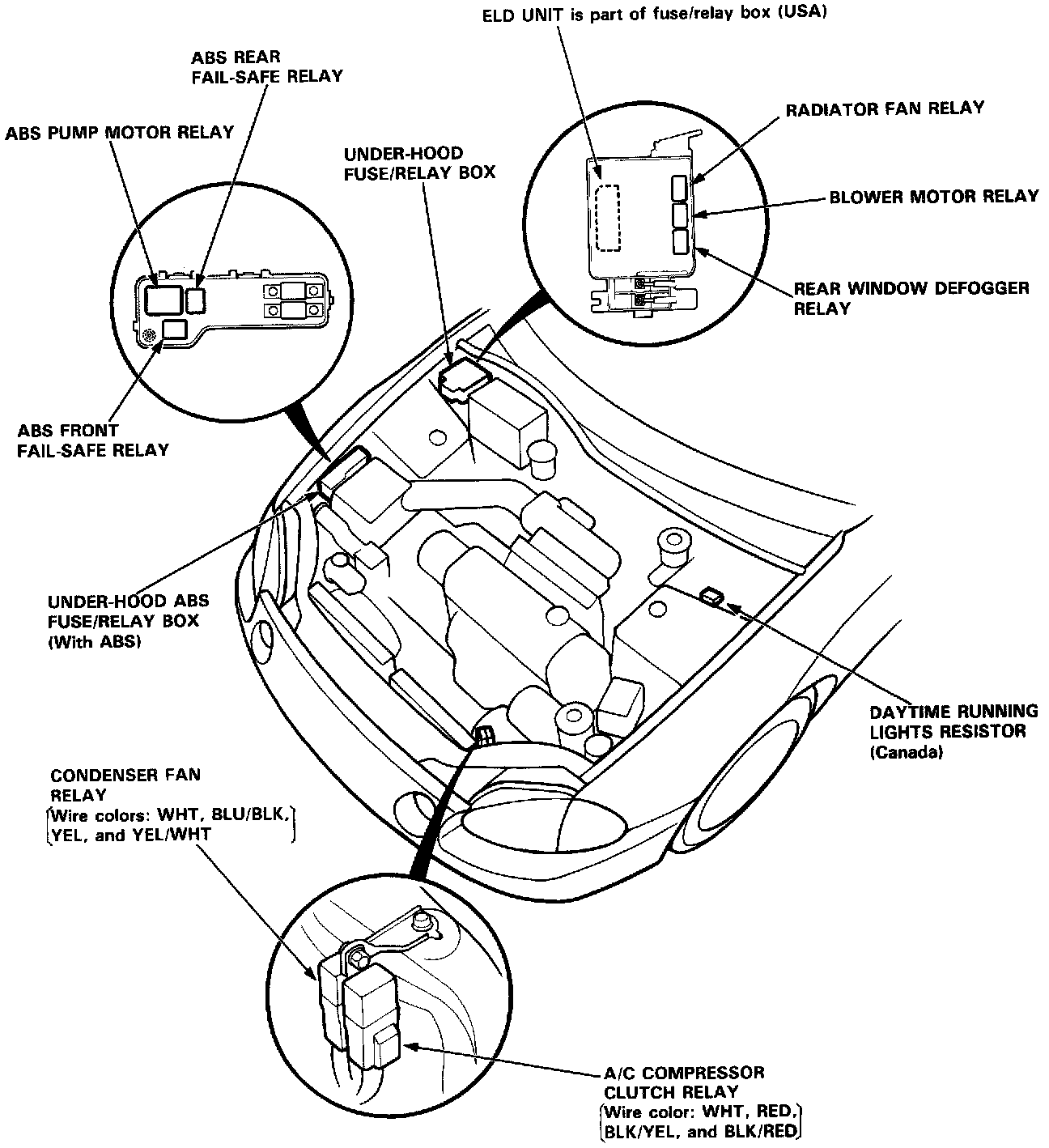

Relay And Control Unit Locations-Engine Compartment:
