Del Sol L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Connector Locations
>>
Dash and Floor
Dash and Floor

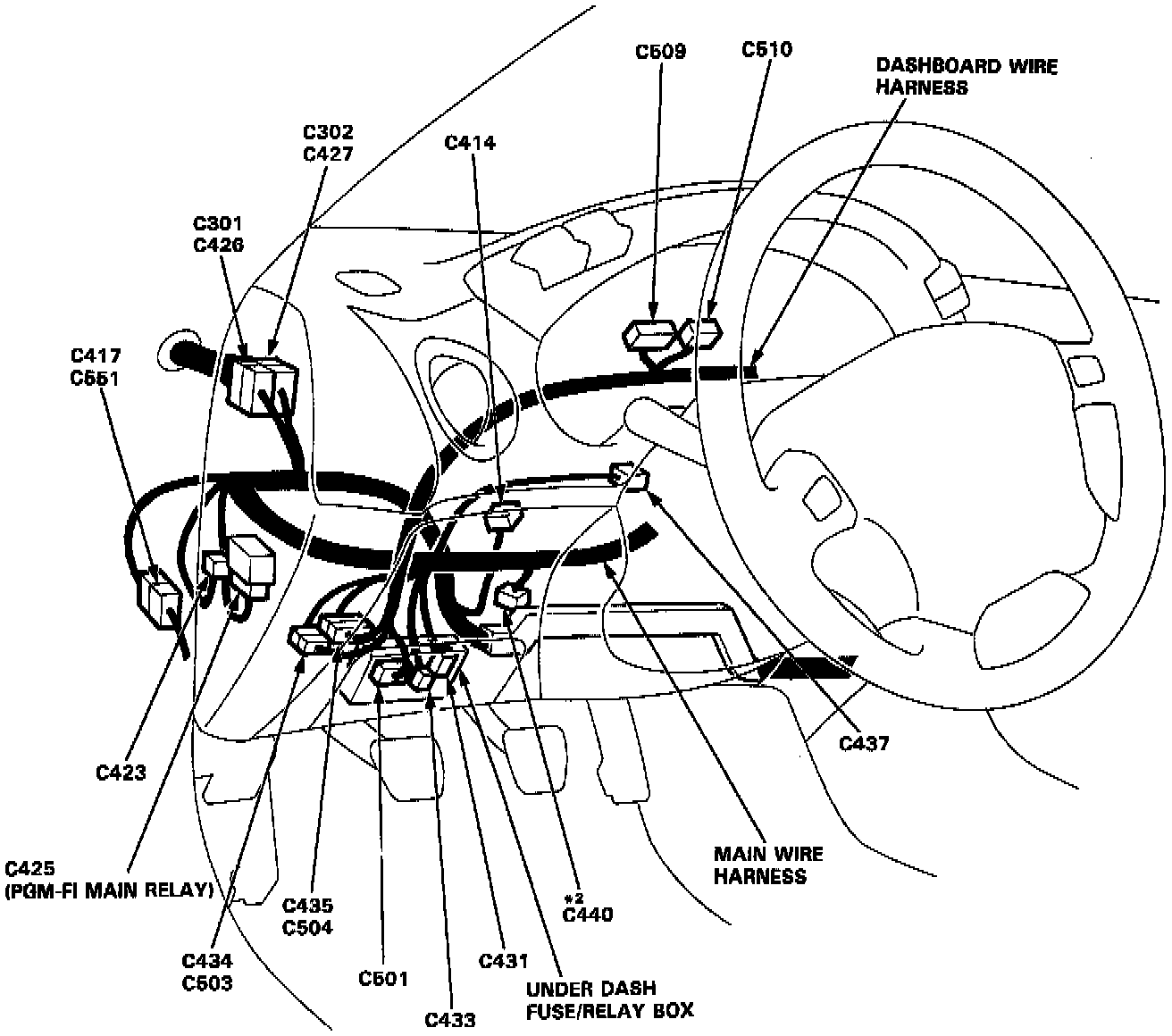

Connector Locations (Dash And Floor):

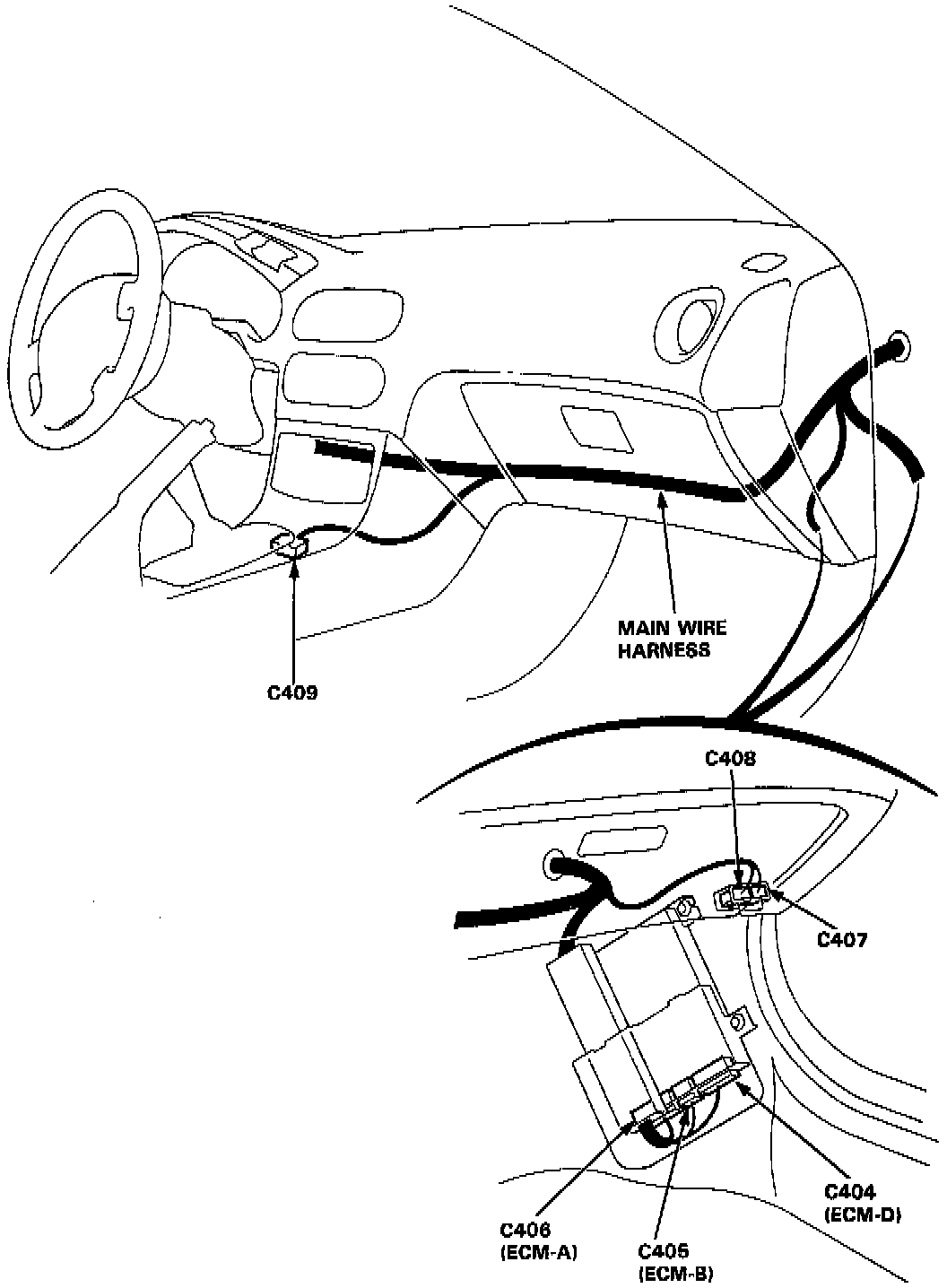

Connector Locations (Dash And Floor):
