Honda
>>
1994
>>
Del Sol L4-1.6L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Schematic and Routing
Schematic and Routing

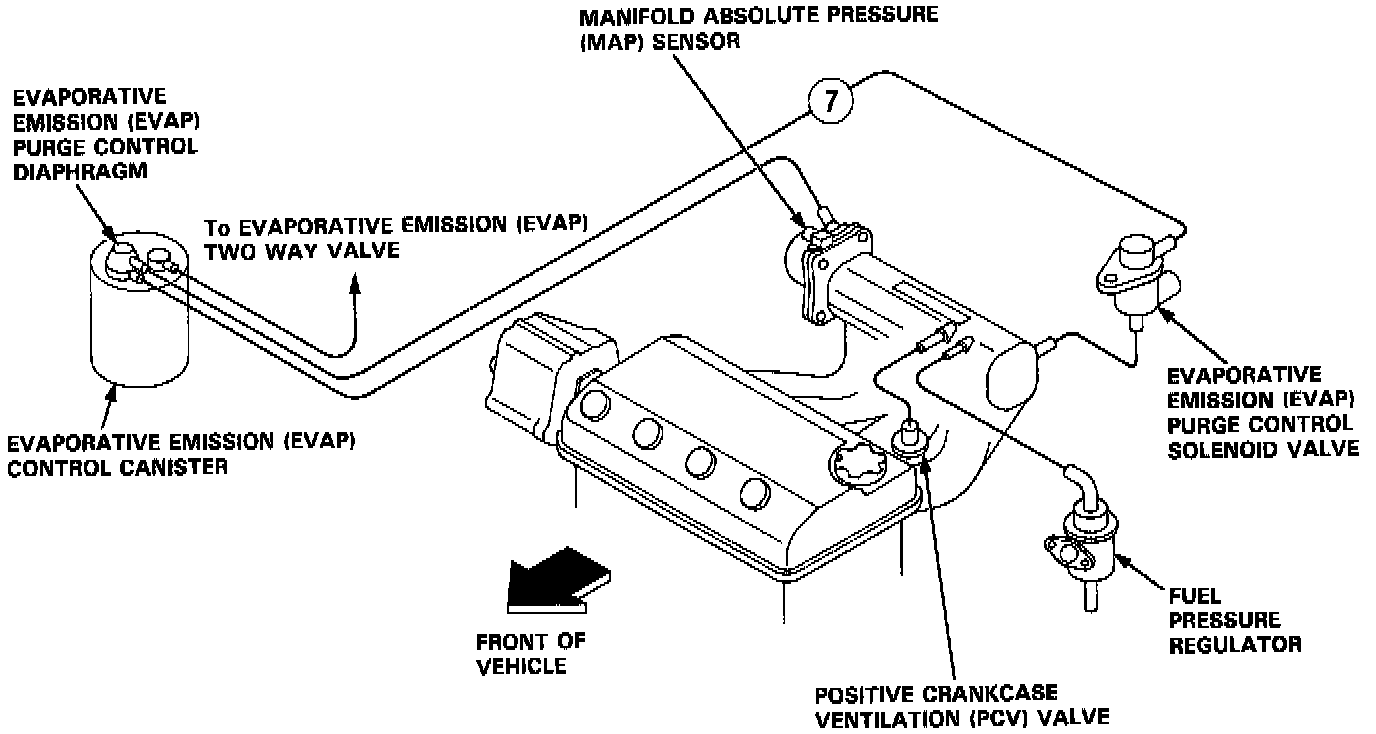

Engine Compartment Vacuum/Vapor Hose Routing:
ENGINE VACUUM HOSE ROUTING

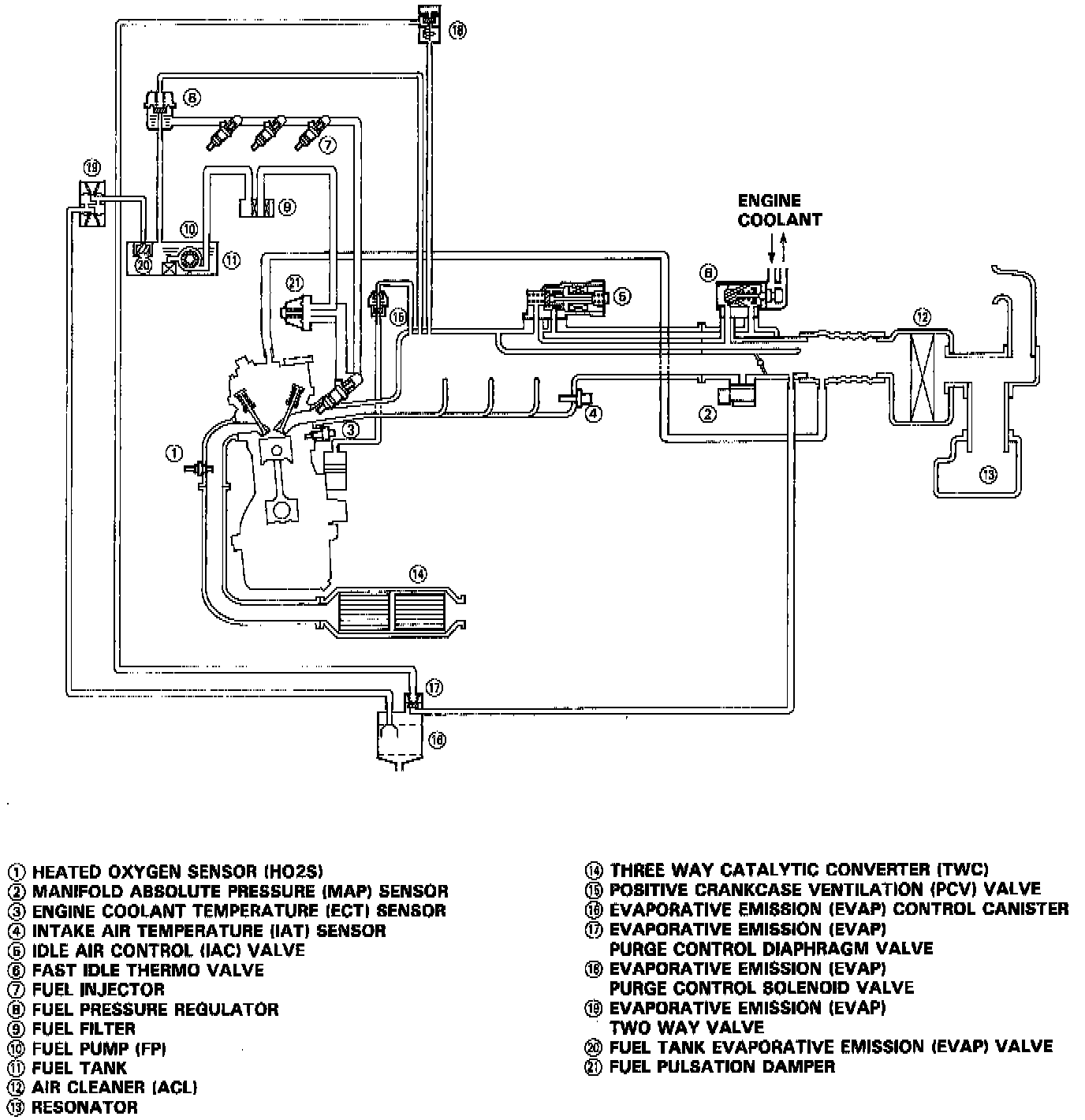

Complete Vacuum/Vapor Hose Diagram:
COMPLETE VACUUM AND VAPOR HOSE SCHEMATIC
