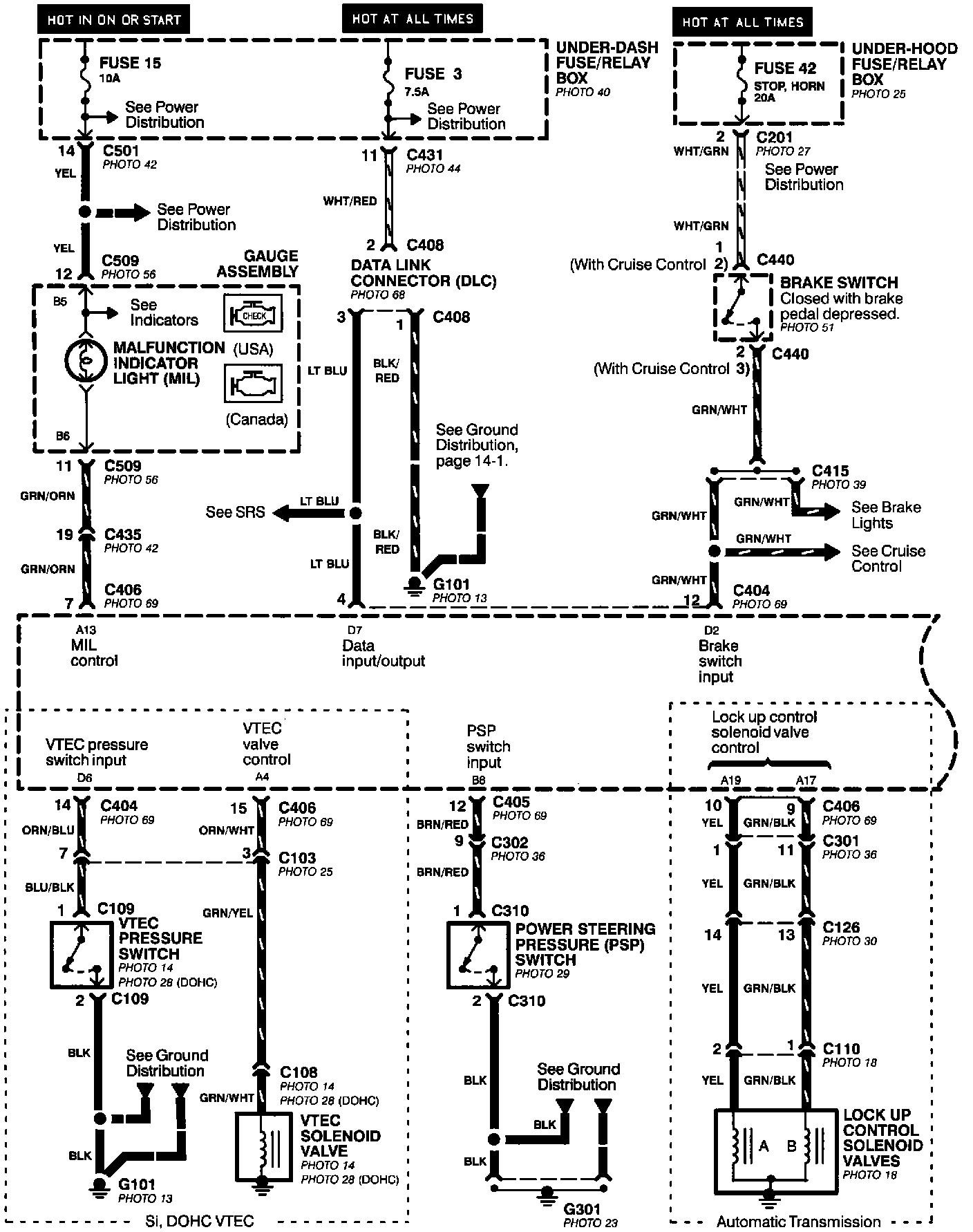

Programmed Fuel Injection System (PGM-FI)- Engine Data Sensors And Vehicle Data Sensors (Part 3 Of 4):
