Power Input, Main Relay and Fuel Control
Power Input, Main Relay and Fuel Control

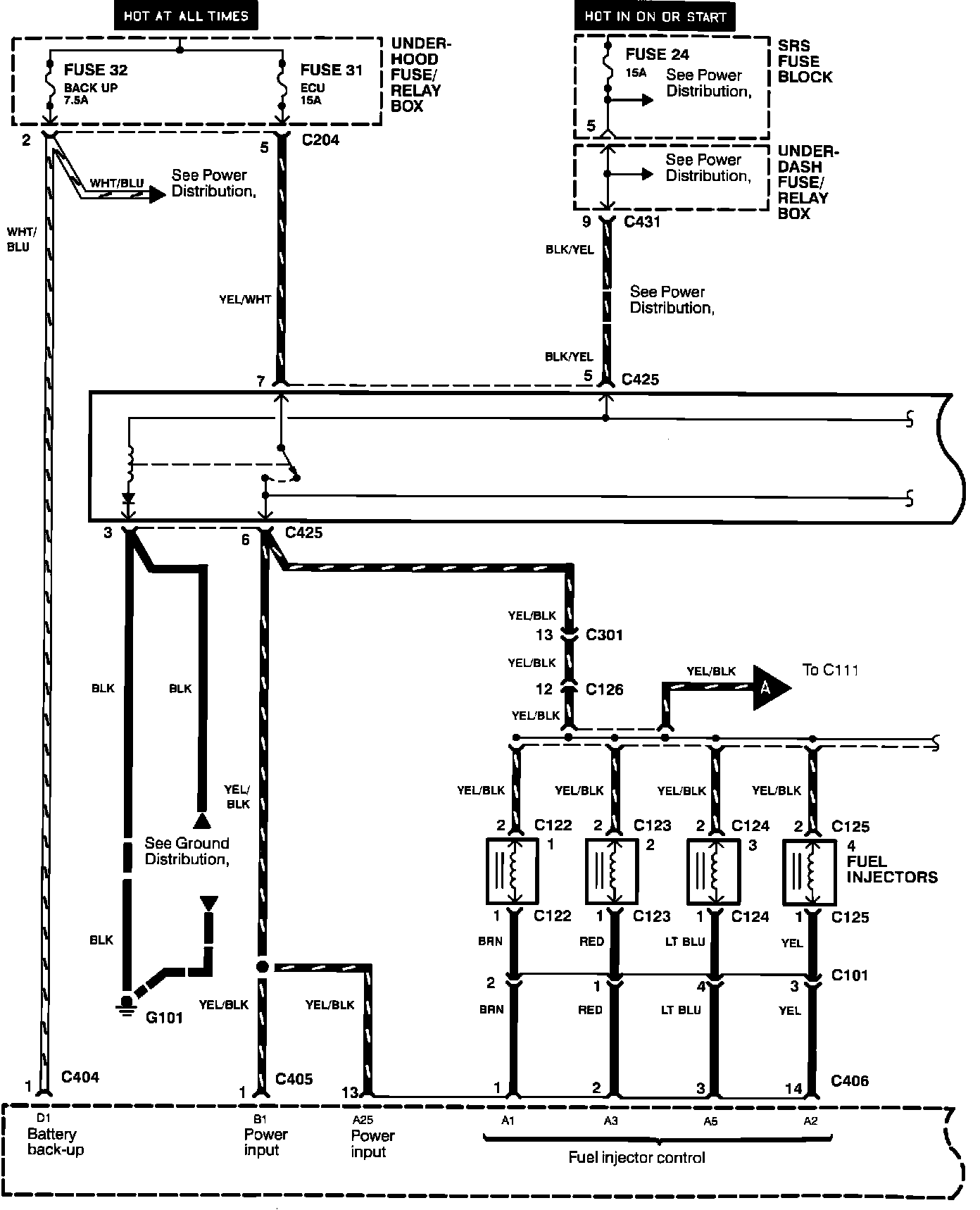

Programmed Fuel Injection System:

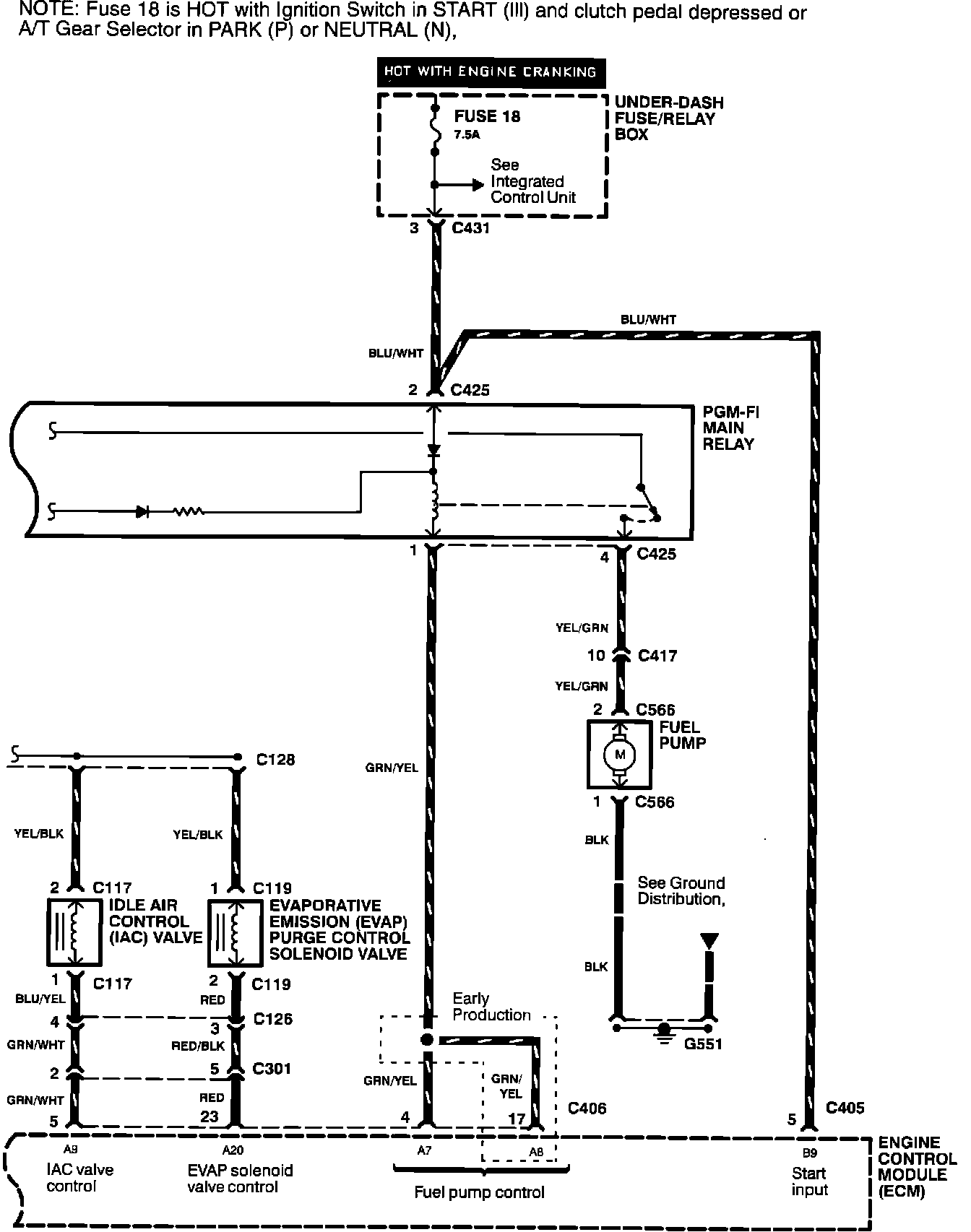

Programmed Fuel Injection System:
