Mainshaft, Countershaft, Shift Fork

REMOVAL




1. Remove the mainshaft and the countershaft assemblies with the shift forks from the clutch housing.

NOTE: Tape the mainshaft spline before removing the mainshaft and the countershaft assemblies.

2. Remove the spring washer and the washer.




3. Remove the differential assembly from the clutch housing.

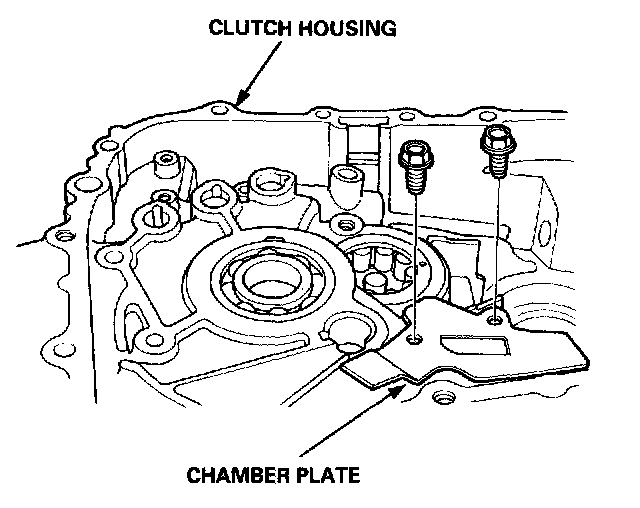

4. Remove the chamber plate.
