Del Sol L4-1.6L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Shift Fork
>>
Service and Repair
>>
Change Holder Assembly
>>

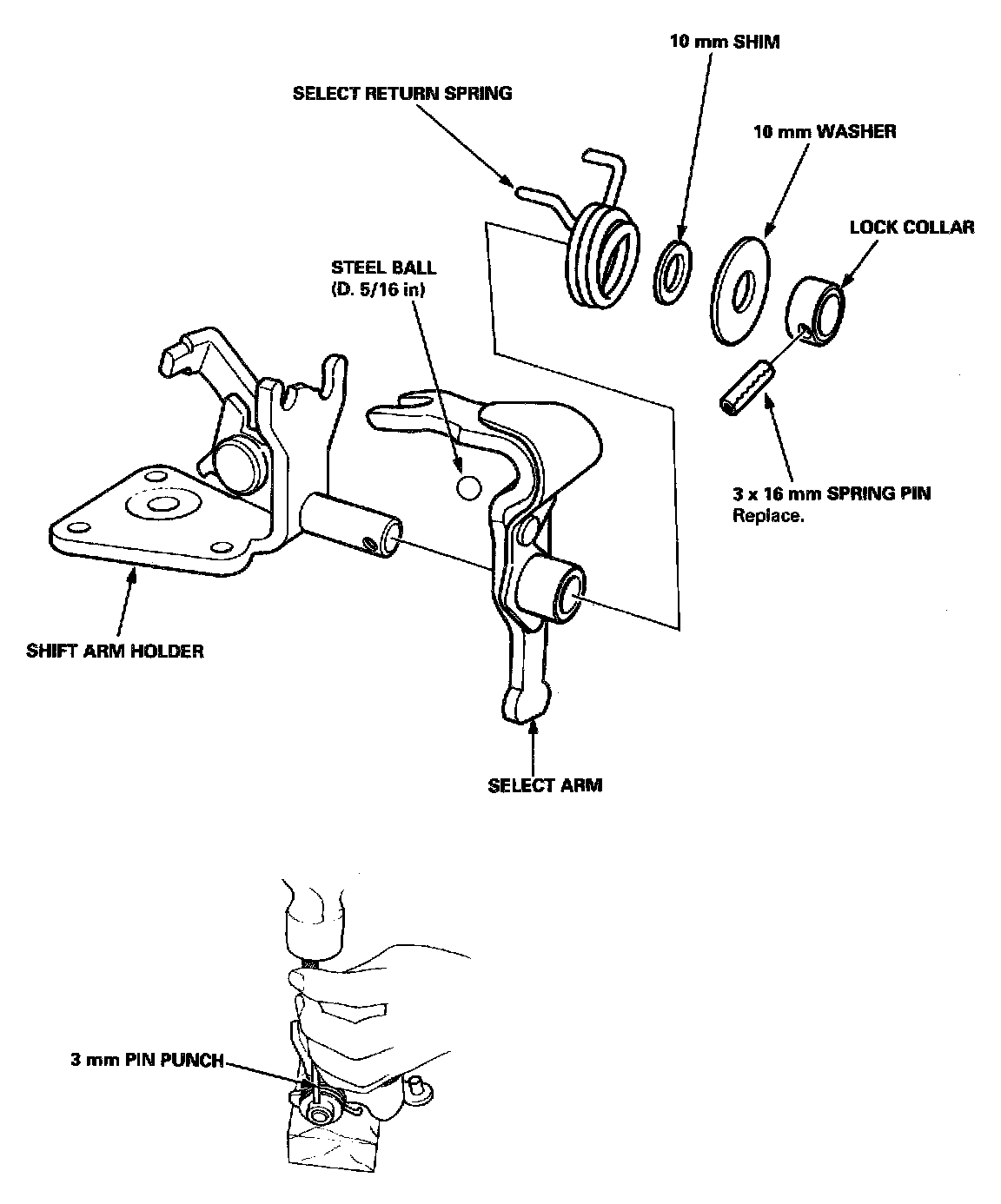

Disassembly/Reassembly
Disassembly/Reassembly
Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact surfaces.
