Home >> Honda >> 1994 >> Del Sol L4-1.6L DOHC (VTEC) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Gear >> Service and Repair >> Reverse Idler Gear >> Removal

Removal

REMOVAL

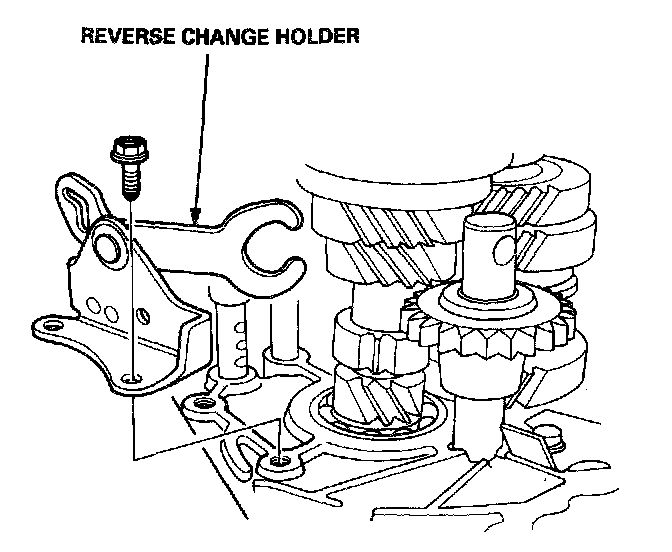

1. Remove the reverse change holder.

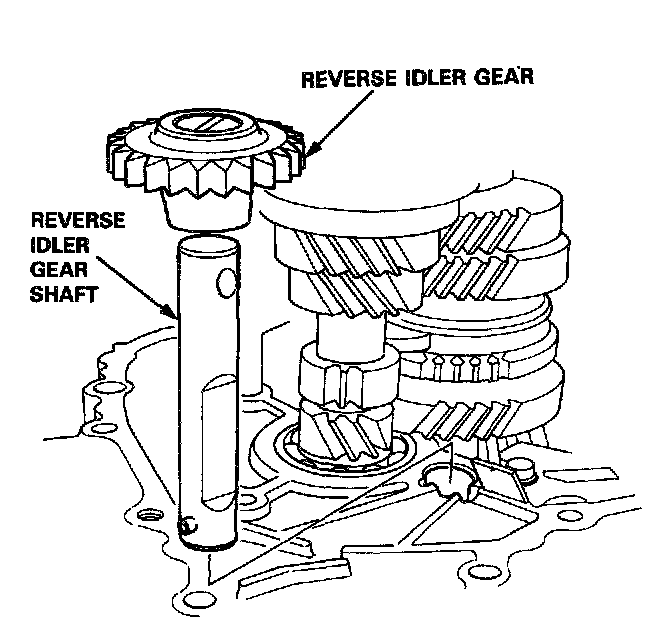

2. Remove the reverse idler gear and the reverse idler gear shaft.
