Nippondenso Starters

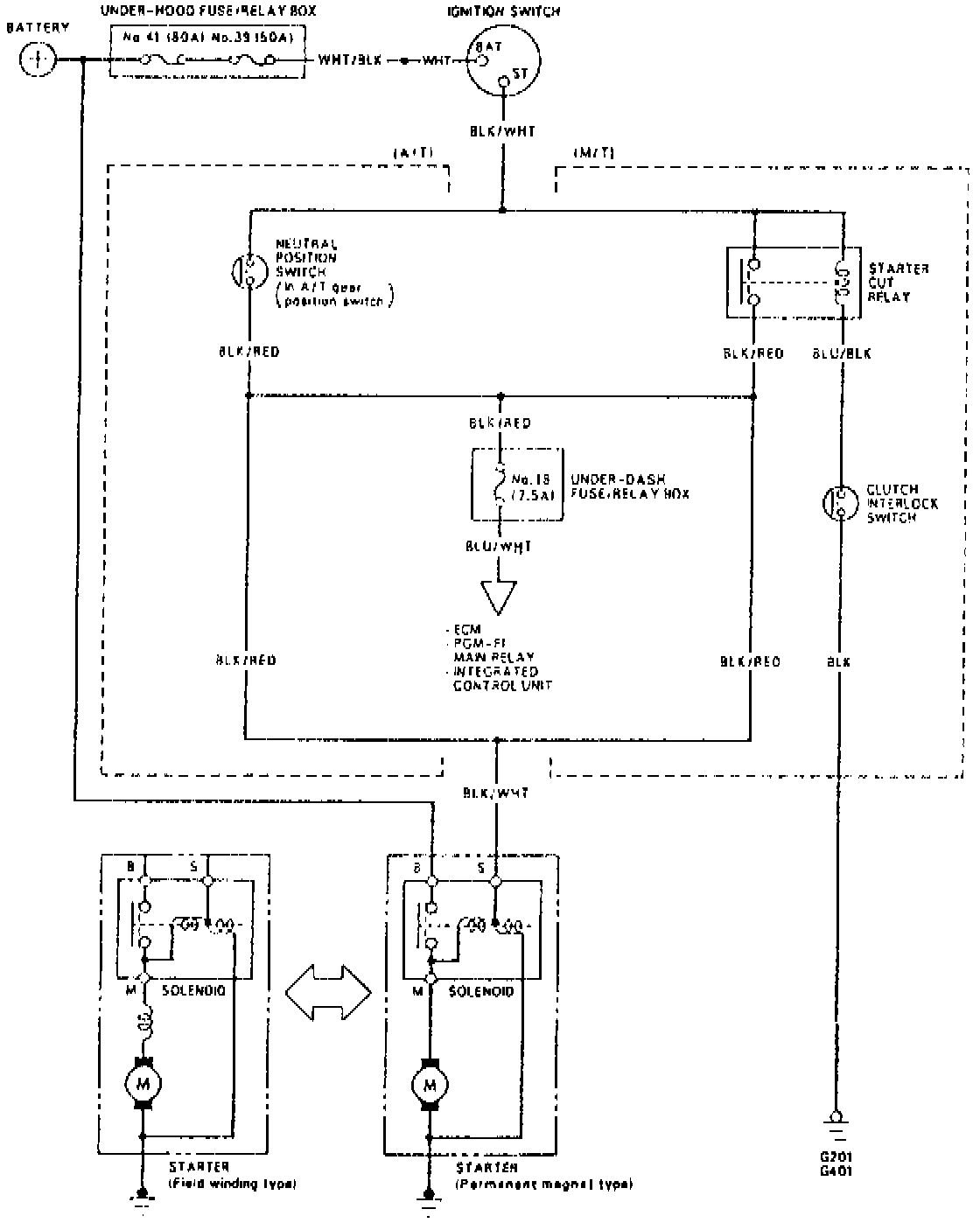

Fig. 8 Starting System Wiring Circuit:





Refer to Fig. 8 when testing this starter.
