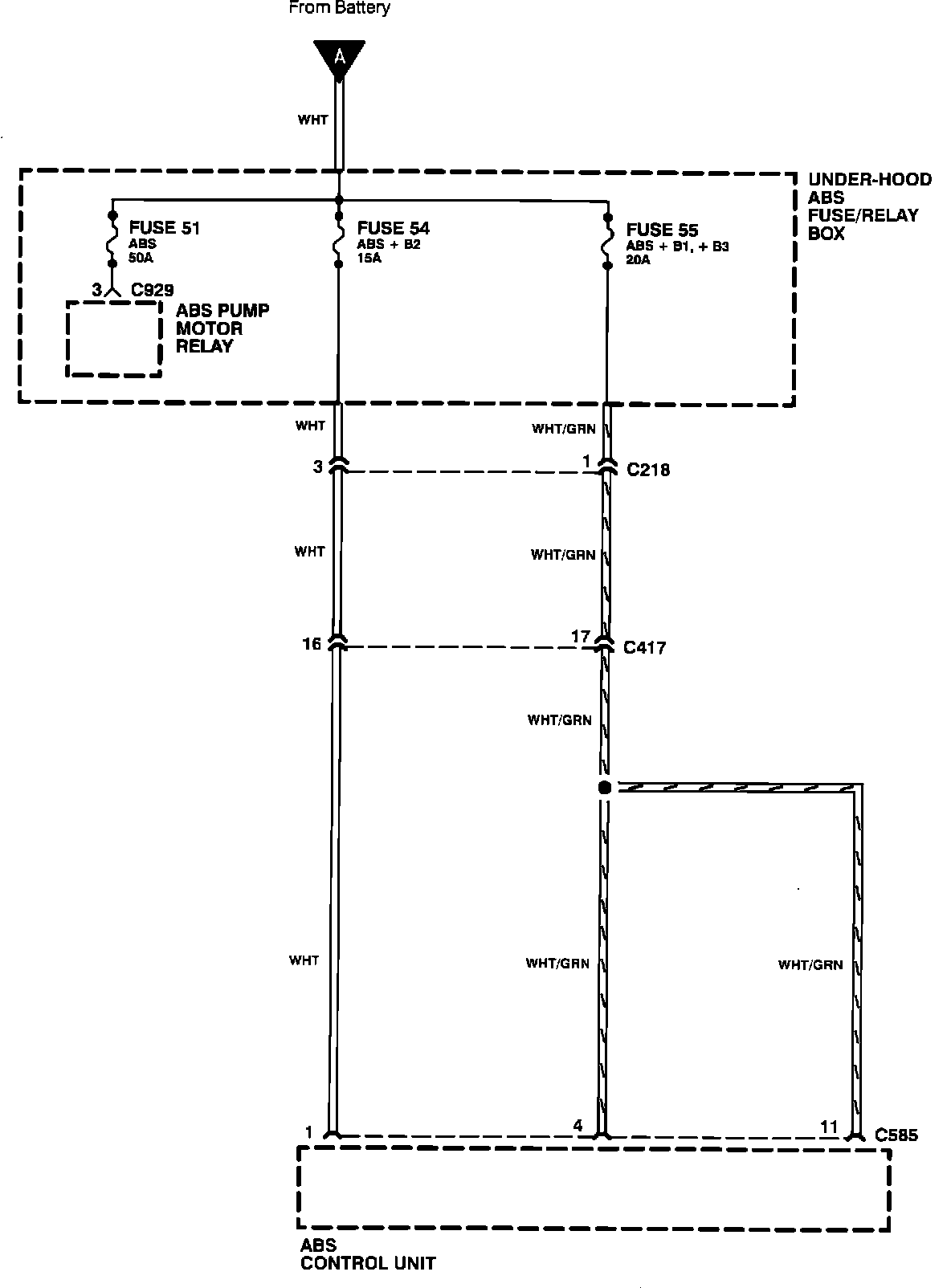

Under-Hood ABS Fuse / Relay Box Protected Systems
Under-Hood ABS Fuse / Relay Box Protected Systems
Power Distribution:
