Auxiliary Air Valve (Idle Speed): Locations

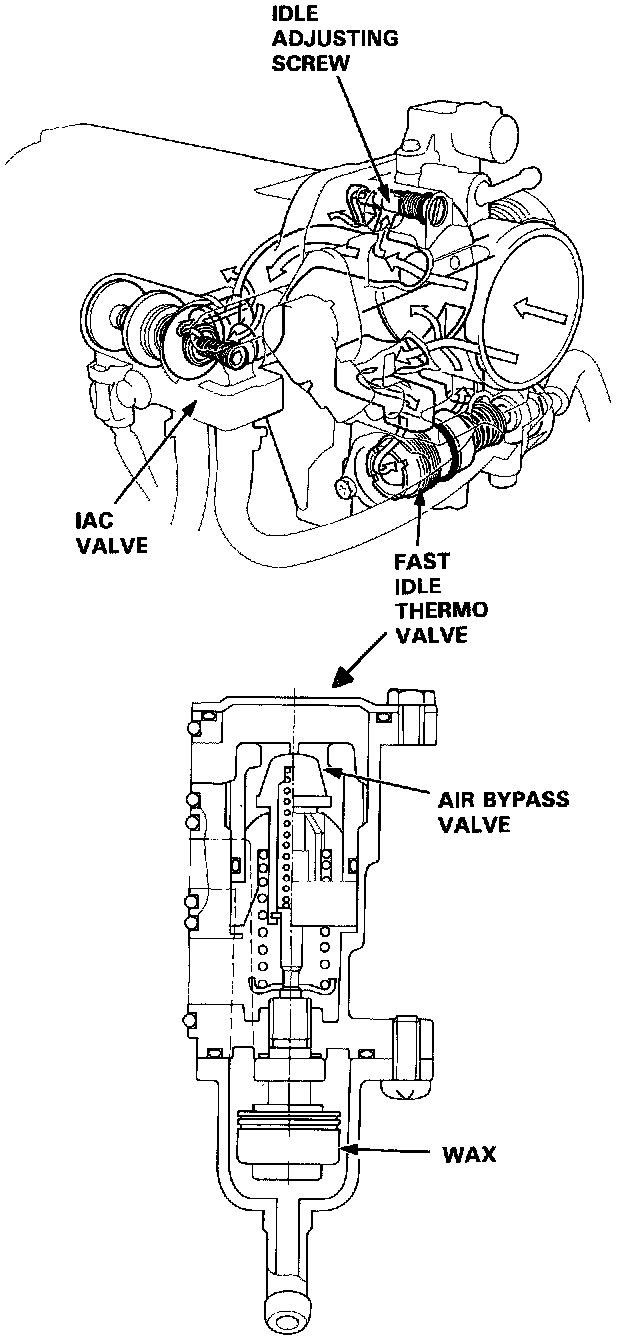

Fast Idle Thermo Valve:
The Fast Idle Thermo-Valve is located directly under air inlet of the throttle body.
