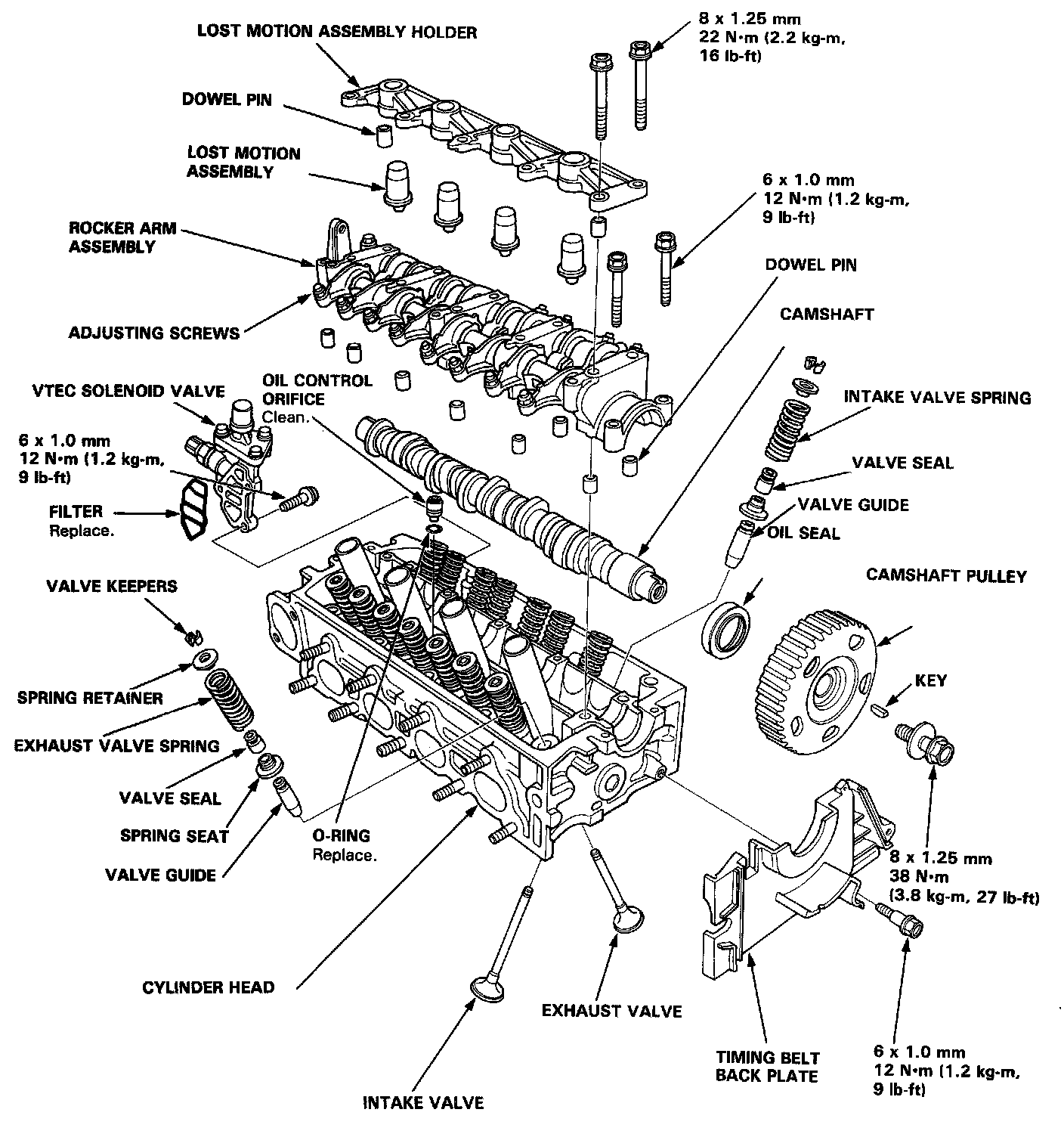

Rocker Arm Assembly: Specifications
D16Z6 engine:
D15B7 engine:
NOTE: Use new 0-rings and gaskets when re-assembling Prior to re-assembling, clean all the parts in solvent, dry them, and apply lubricant to any contact parts.
D16Z6 engine:
D15B7 engine:
NOTE: Use new 0-rings and gaskets when re-assembling Prior to re-assembling, clean all the parts in solvent, dry them, and apply lubricant to any contact parts.
