Schematic and Routing

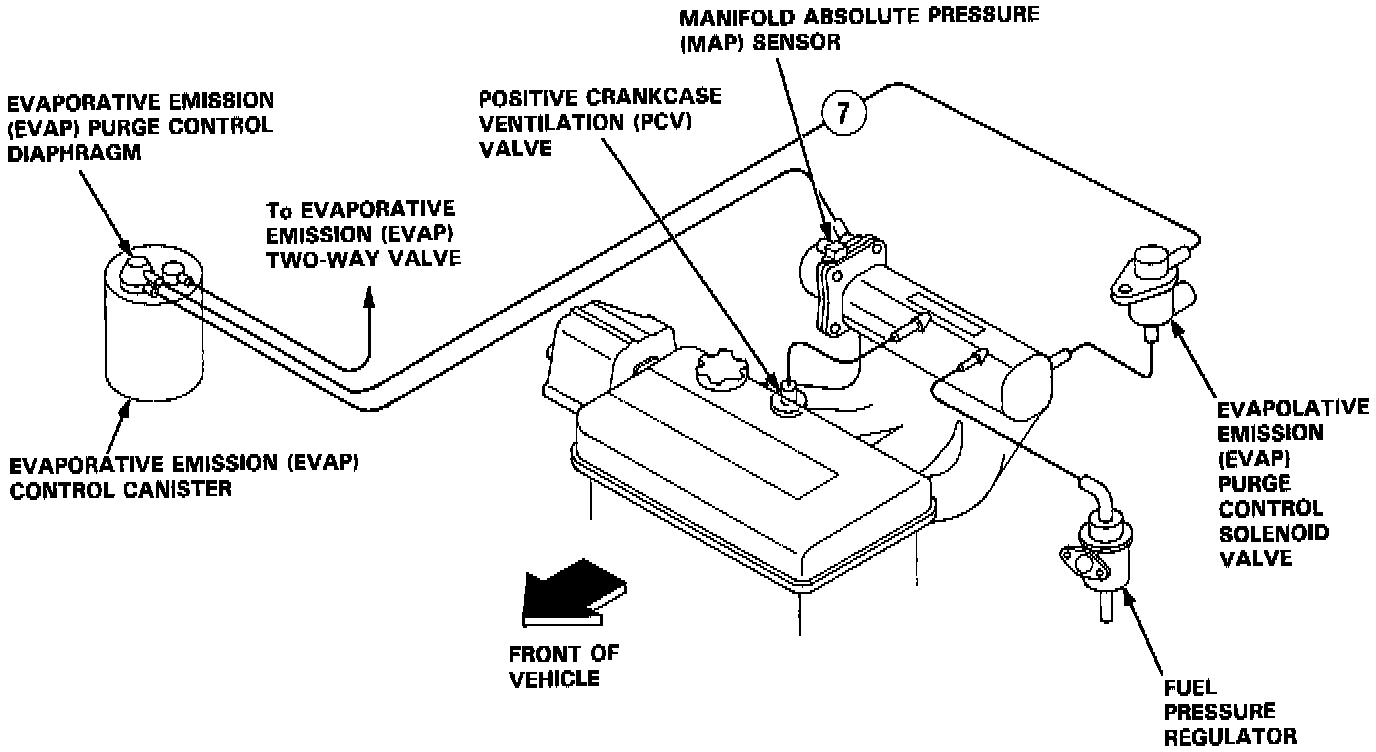

Engine Compartment Vacuum/Vapor Hose Routing (DOHC VTEC):




ENGINE VACUUM HOSE ROUTING

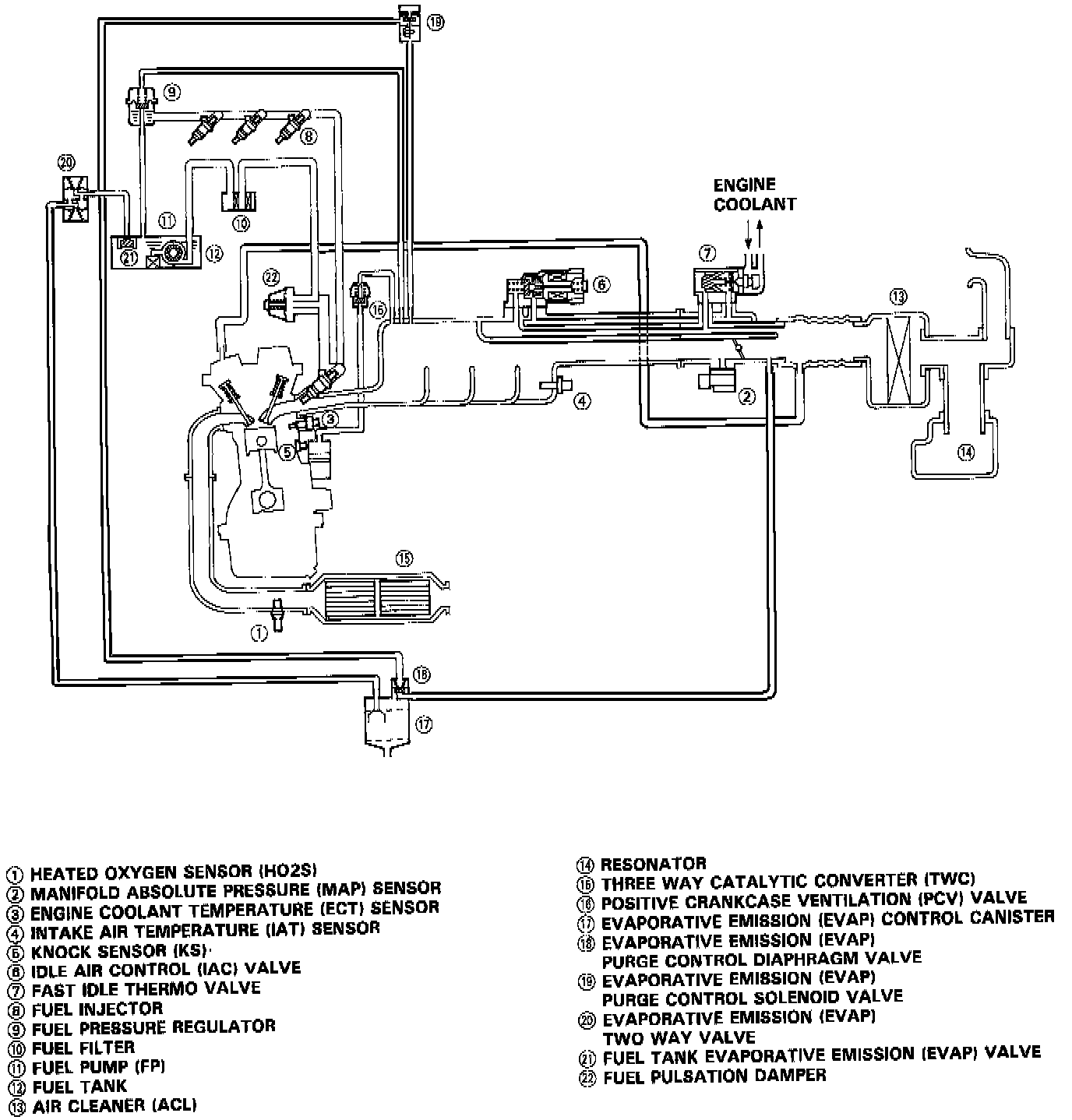

Complete Vacuum/Vapor Hose Diagram:




COMPLETE VACUUM AND VAPOR HOSE SCHEMATIC
