Home >> Honda >> 1994 >> Accord L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly >> Spindle Nut

Spindle Nut






1990-91






1992-98

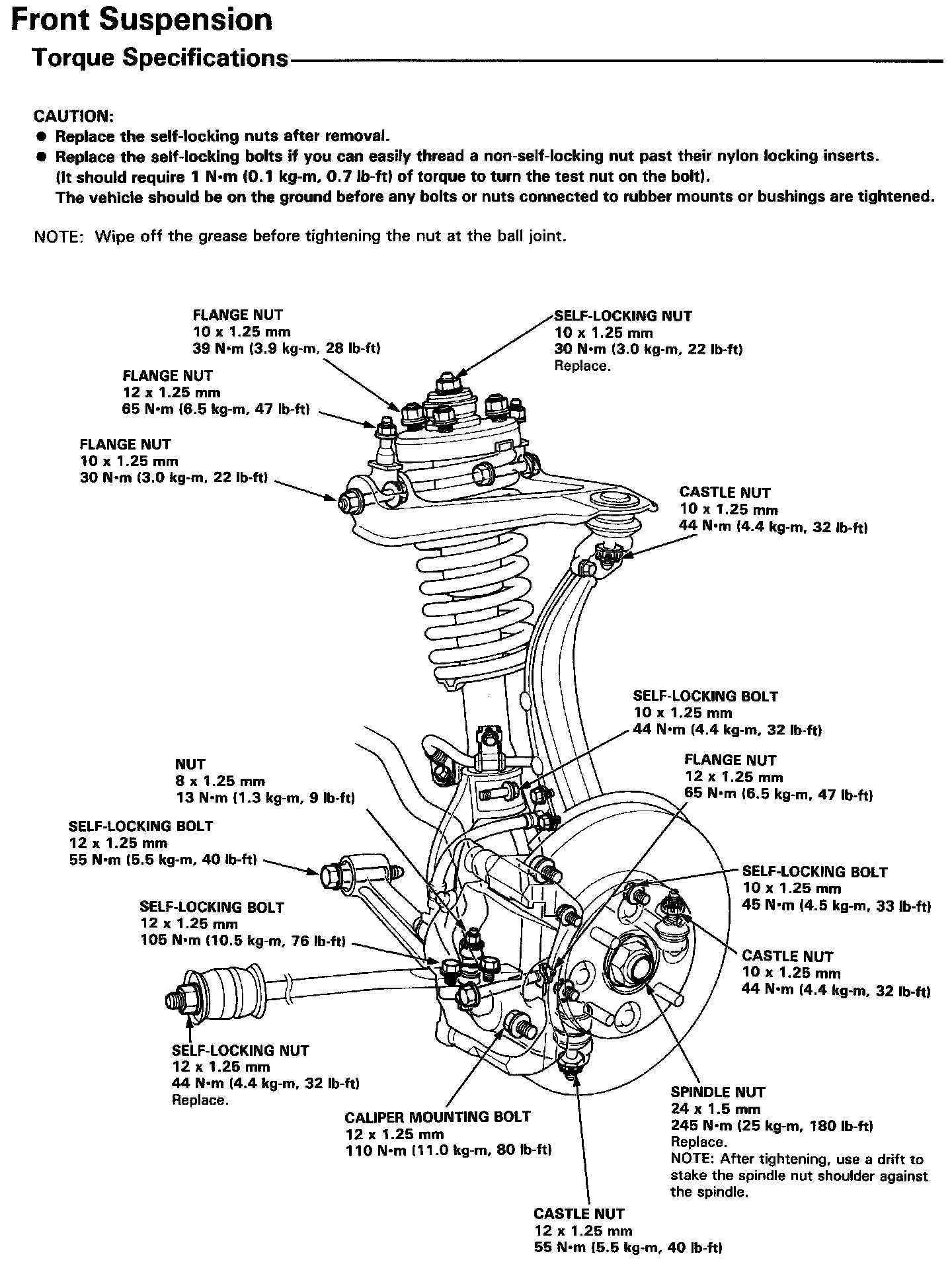

FRONT

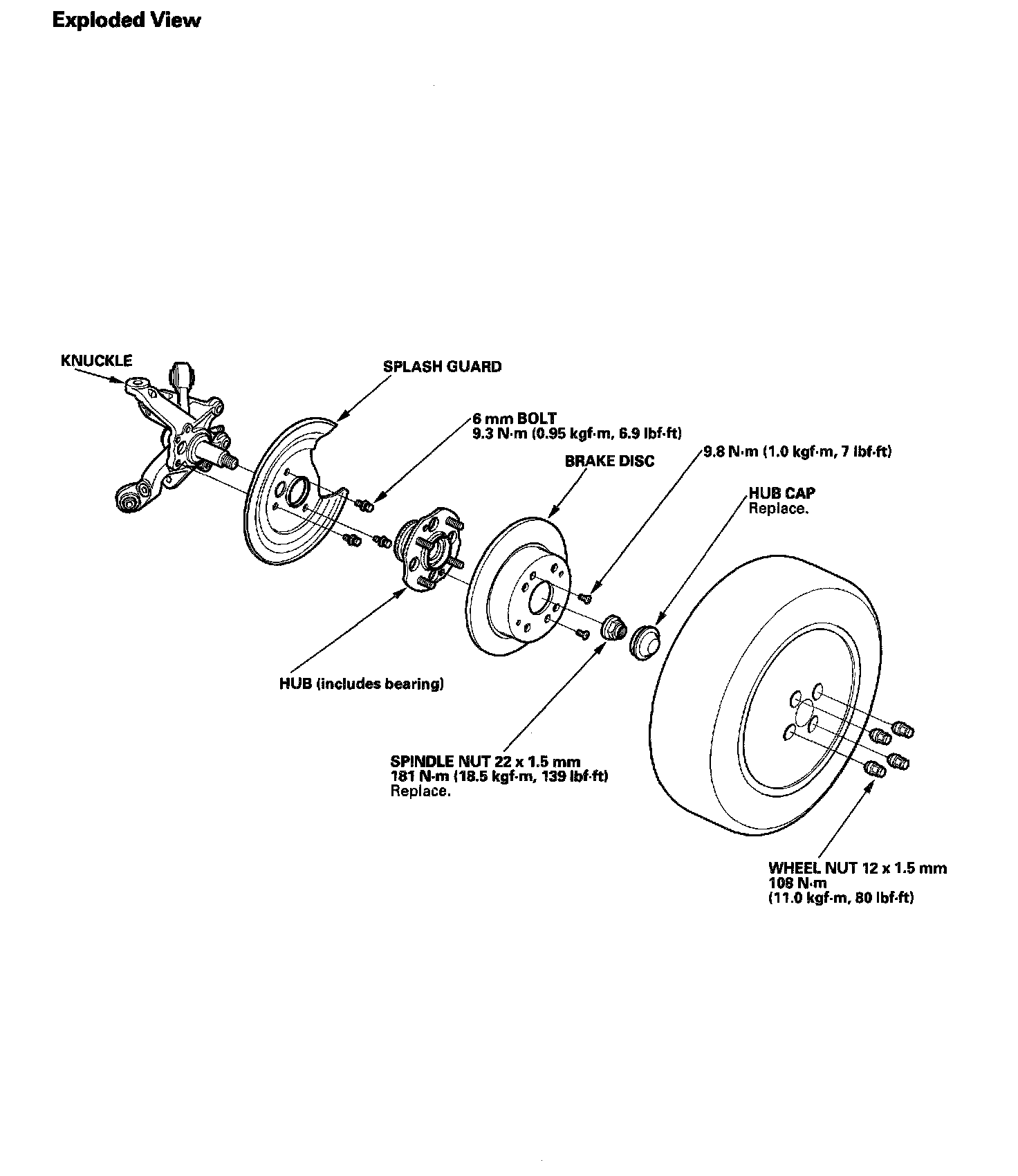

1998 Rotor

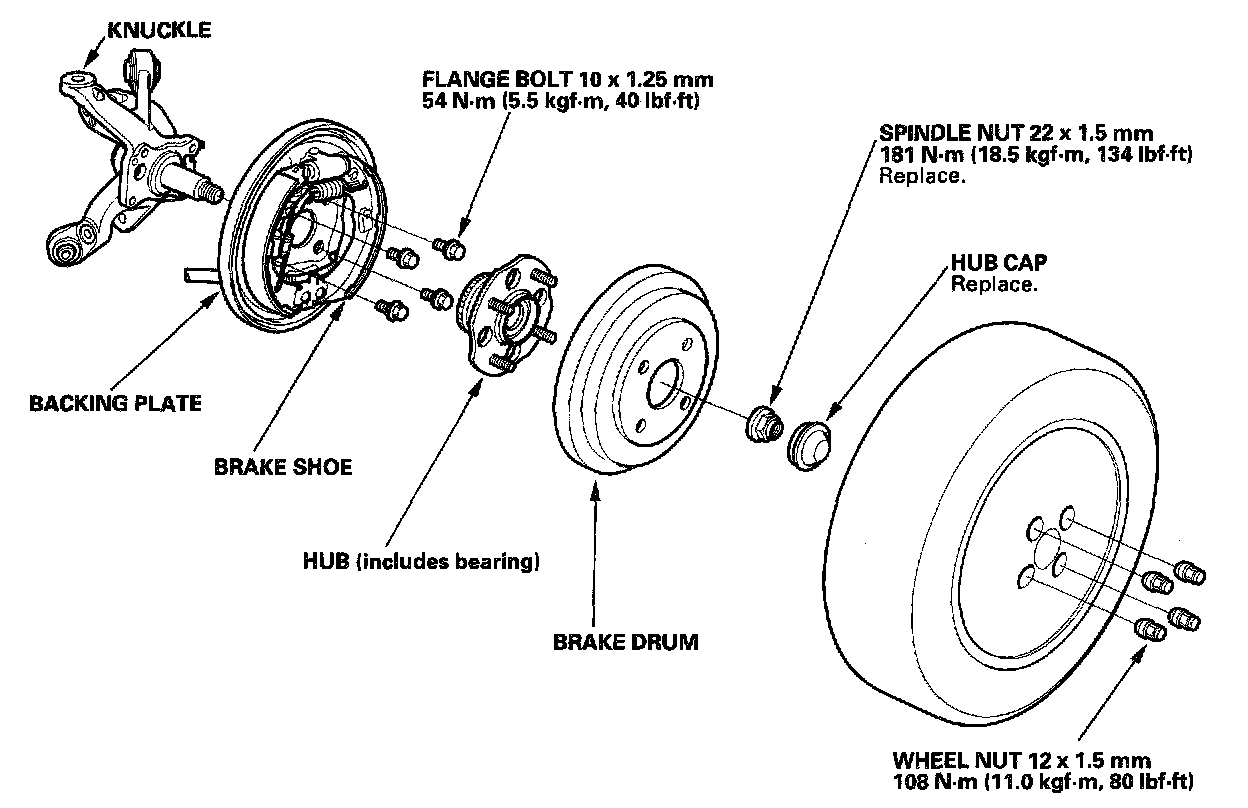

1998 DRUM






1990-97 DRUM


Rear
