Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams

Electrical Diagrams

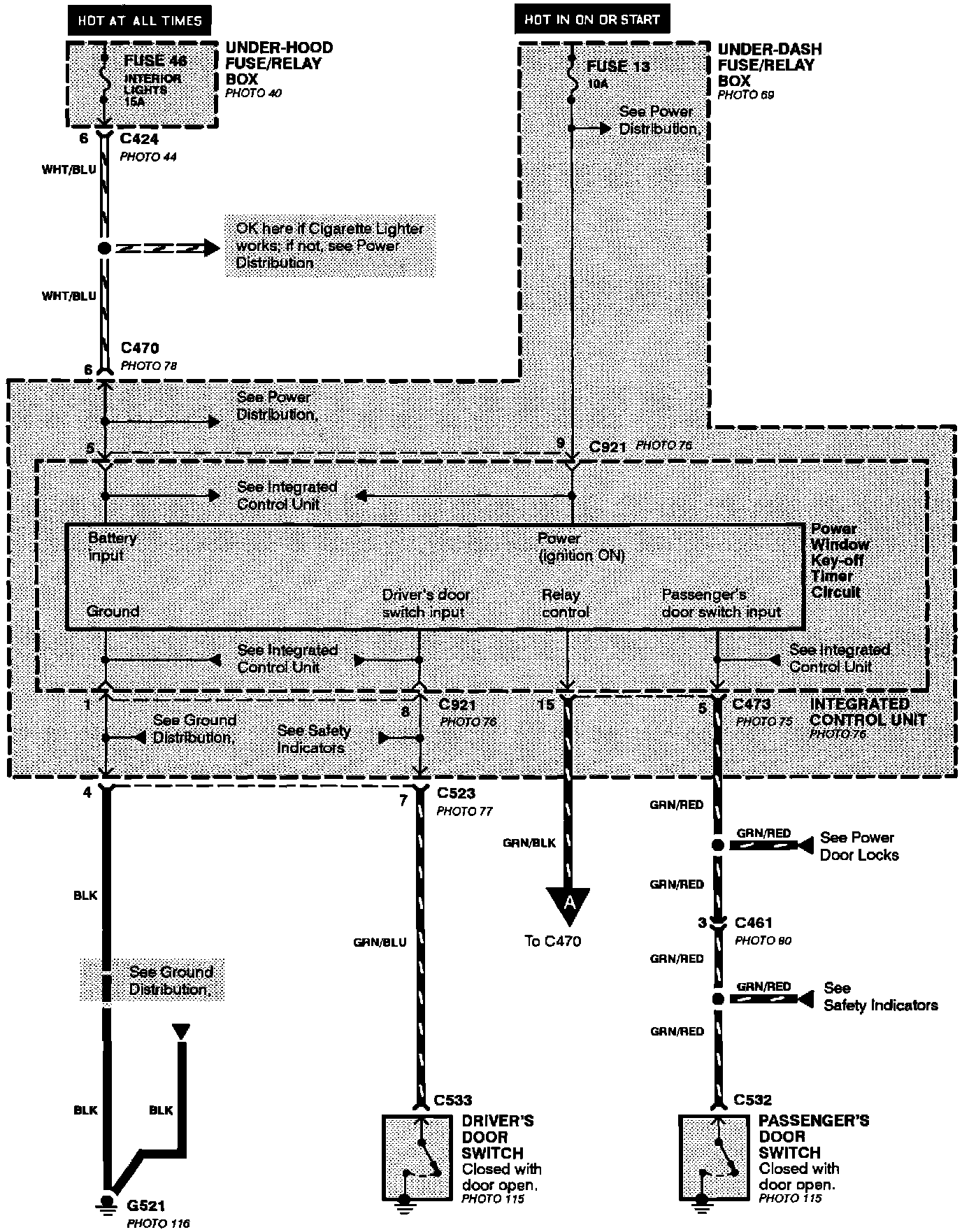

Power Windows: Key-off Timer Circuit:



Power Windows: Driver's Door:

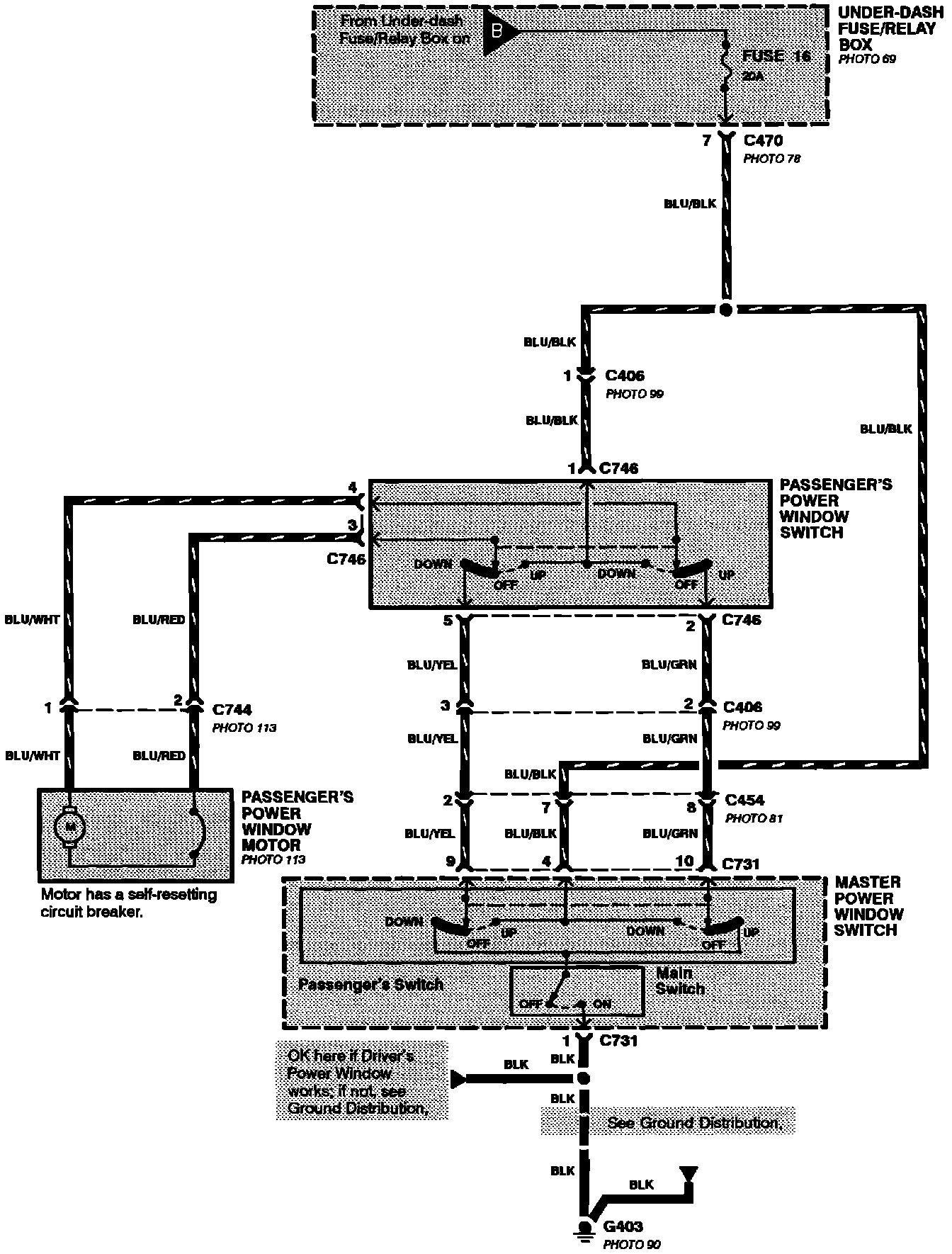

Power Windows: Passenger's Door:
