Clutch - Creaking From the Pedal

BULLETIN NO.
95-025

ISSUE DATE
MAY 8, 1995

MODEL:
1992-95
PRELUDE
1994-95
ACCORD

APPLICABLE TO
ALL

FILE UNDER
TRANS.

Creaking From the Clutch Pedal

SYMPTOM

The clutch pedal makes a creaking noise when it is depressed.

PROBABLE CAUSE

The clutch pedal assist spring is rubbing against the bushings.

CORRECTIVE ACTION

Lubricate the bushings, and spread the tabs on the clutch pedal assist spring bracket.

1. Remove the clutch pedal assist spring.

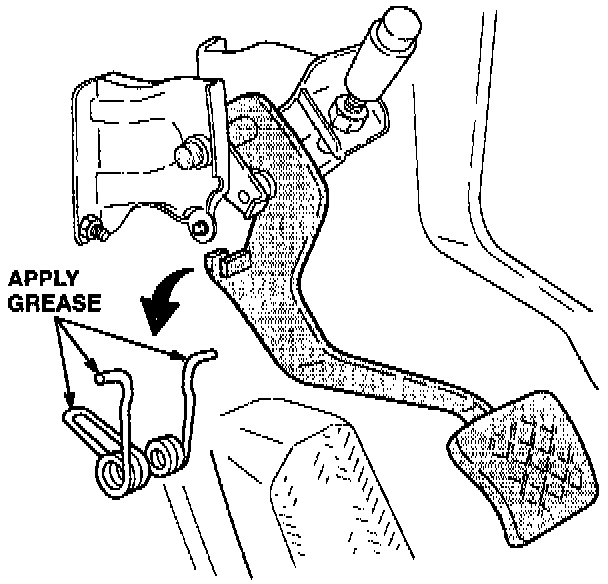

2. Apply high temp urea grease to the ends of the spring where they contact the bracket and to the center of the spring where it contacts the clutch pedal.

3. Reinstall the spring by putting the ends back in the bushings, then depress the clutch pedal and install the center of the spring into the clutch pedal bushing.

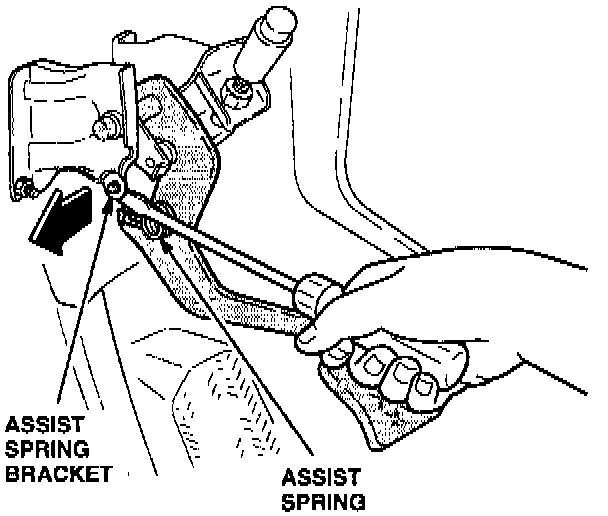

4. Use a large screwdriver to bend the assist spring bracket outward approximately 1 mm.

5. Repeat step 4 on the other side.

REQUIRED MATERIALS

High temp urea grease:
P/N 08798-9002, H/C 3720984

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out of warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

Operation number: 211002

Flat rate time: 0.2 hour

Failed part: P/N 46980-SD4-930 H/C 2348191

Defect code: 042

Contention code: B07
