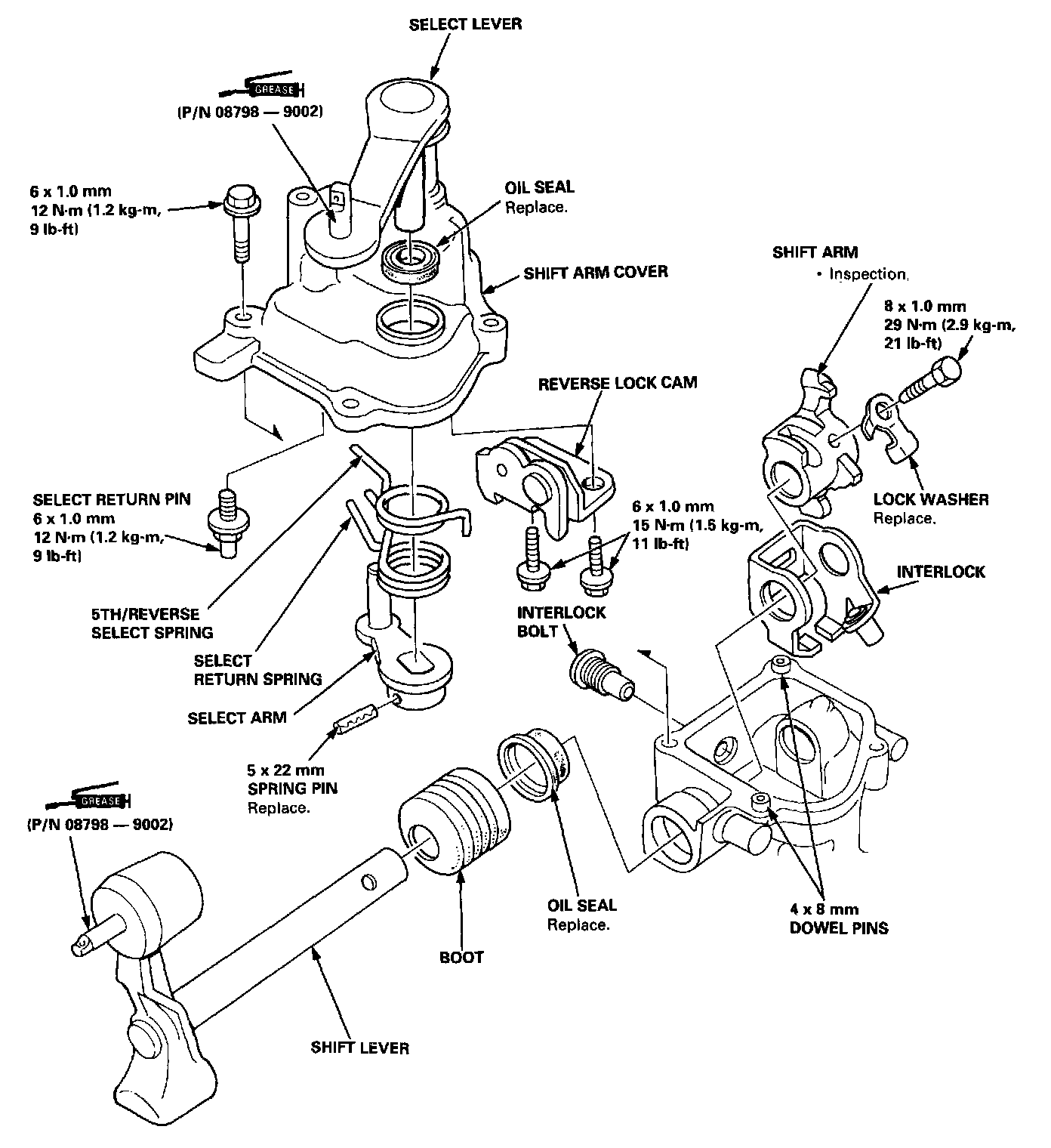

Shift Arm Assembly
>>
Index
Index
NOTE:
-
The shift arm cover can be removed and installed with the transmission in the car.
-
Lubricate all moving and sliding surfaces with grease.
-
Turn the boot so the hole is facing down.
