Intermediate Shaft Disassembly/Assembly

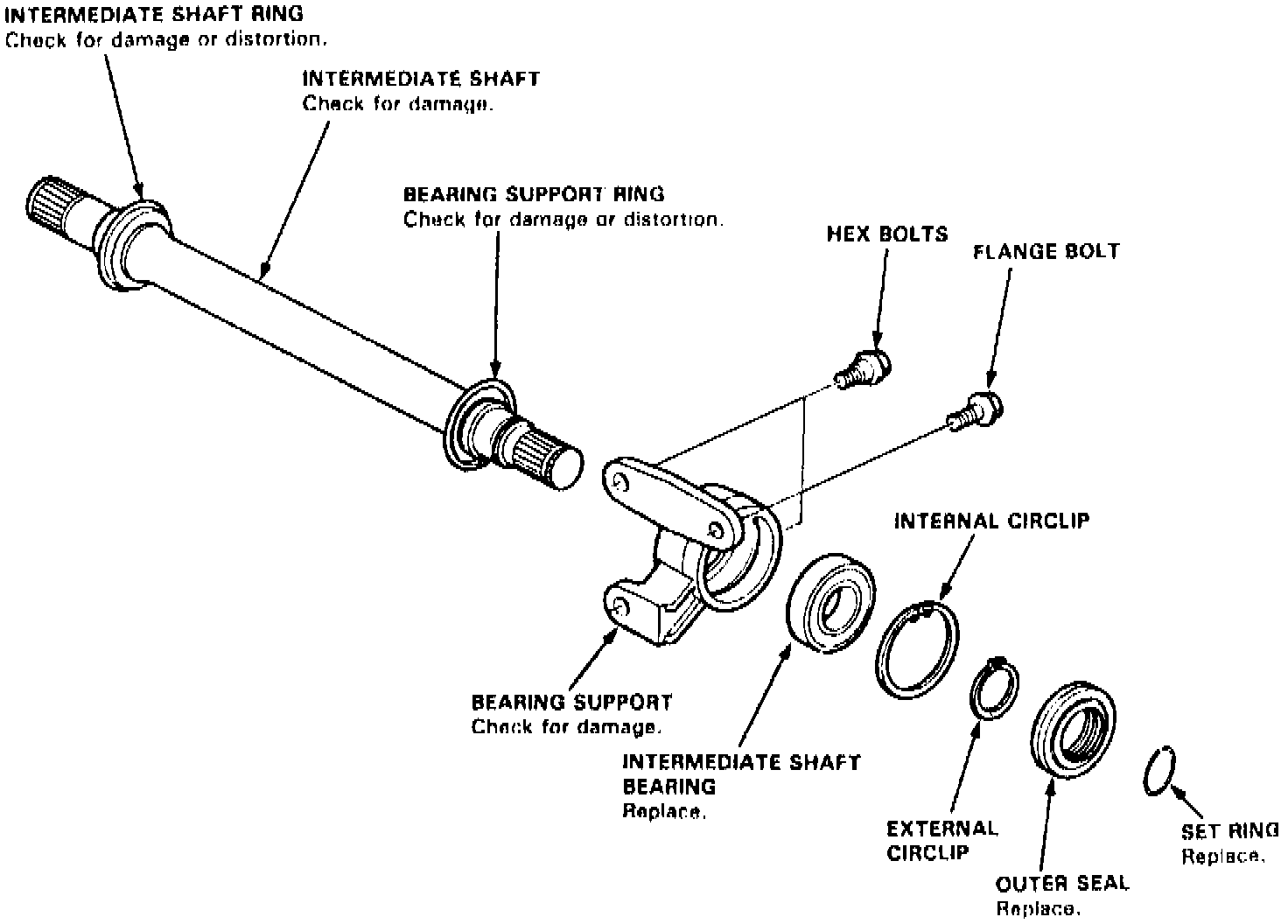

Fig. 8 Intermediate Shaft Assembly:

1. Remove set ring, intermediate shaft outer seal and external clip, Fig. 8.
2. Using press and hub disassemble base tool No. 07GAF-SD40700, or equivalent, press intermediate shaft out of shaft bearing.
3. Remove internal circlip.
4. Using press and driver tool No. 07749-0010000, attachment tool No. 07746-0010200, and hub disassemble base tool No. 07GAF-SD40700, or equivalents, press intermediate bearing out of bearing support.
5. Using press and driver tool No. 07749-0010000, attachment tool No. 07746-0010400 and hub assembly base tool No. 07GAF-SD40700, or equivalents, press intermediate shaft bearing into bearing support.
6. Seat internal circlip in groove of bearing support.
7. Using press and attachment tool No. 07746-0.030400 and hub assembly base tool No. 07GAF-SD40700, or equivalents, press intermediate shaft into shaft bearing.
8. Seat external circlip in groove of intermediate shaft.
9. Using press and oil seal driver tool No. 07GAD-PH70201 and hub assembly base tool No. 07GAF-SD40700, or equivalents, press outer seal into bearing support.
10. Install new set ring into intermediate shaft groove.
