4 Wheel Steering Control System
>>
4WS Indicator Light Circuit
4WS Indicator Light Circuit
Indicator Light Circuit Tests

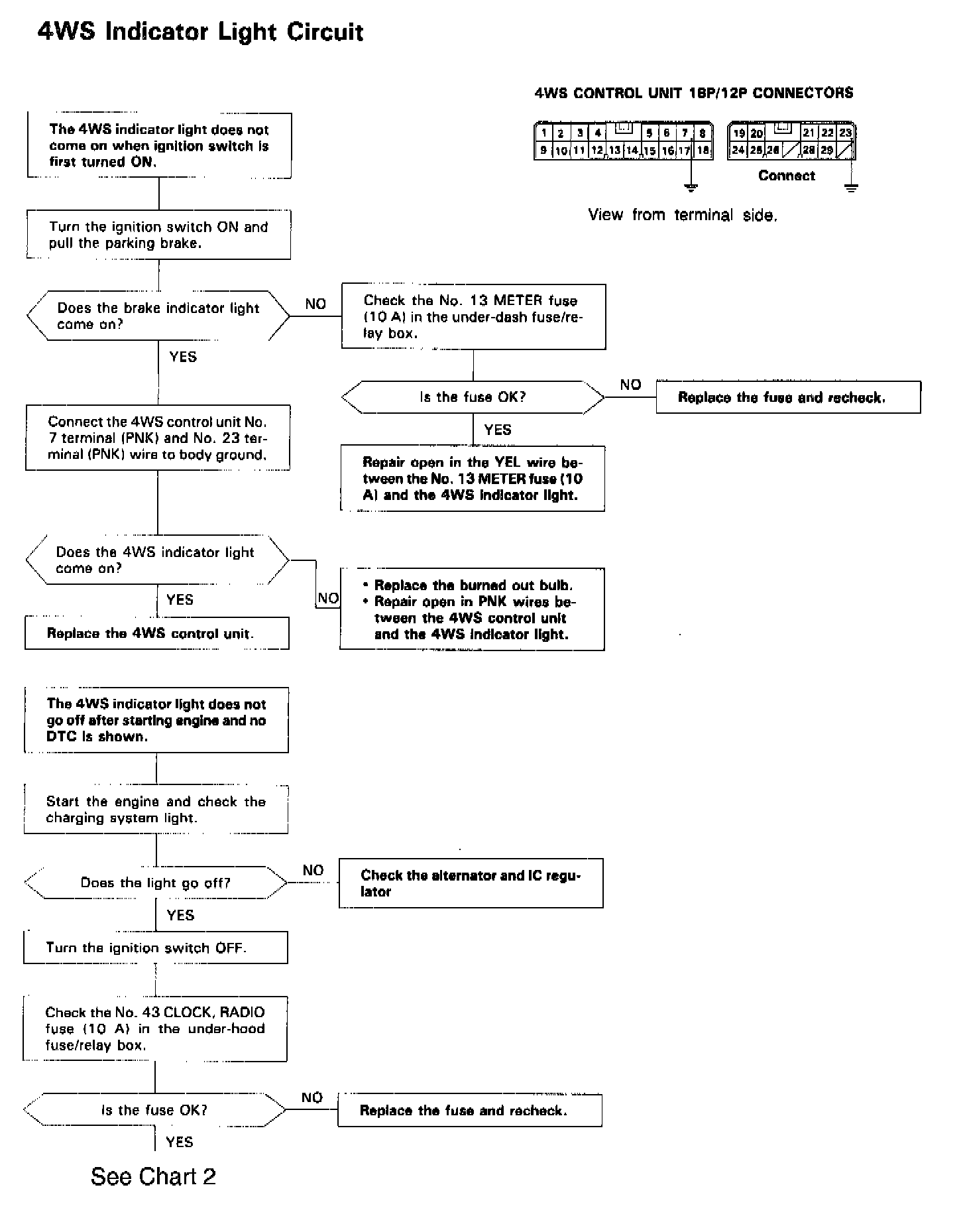

Chart 1 Of 3 Indicator Light Tests:

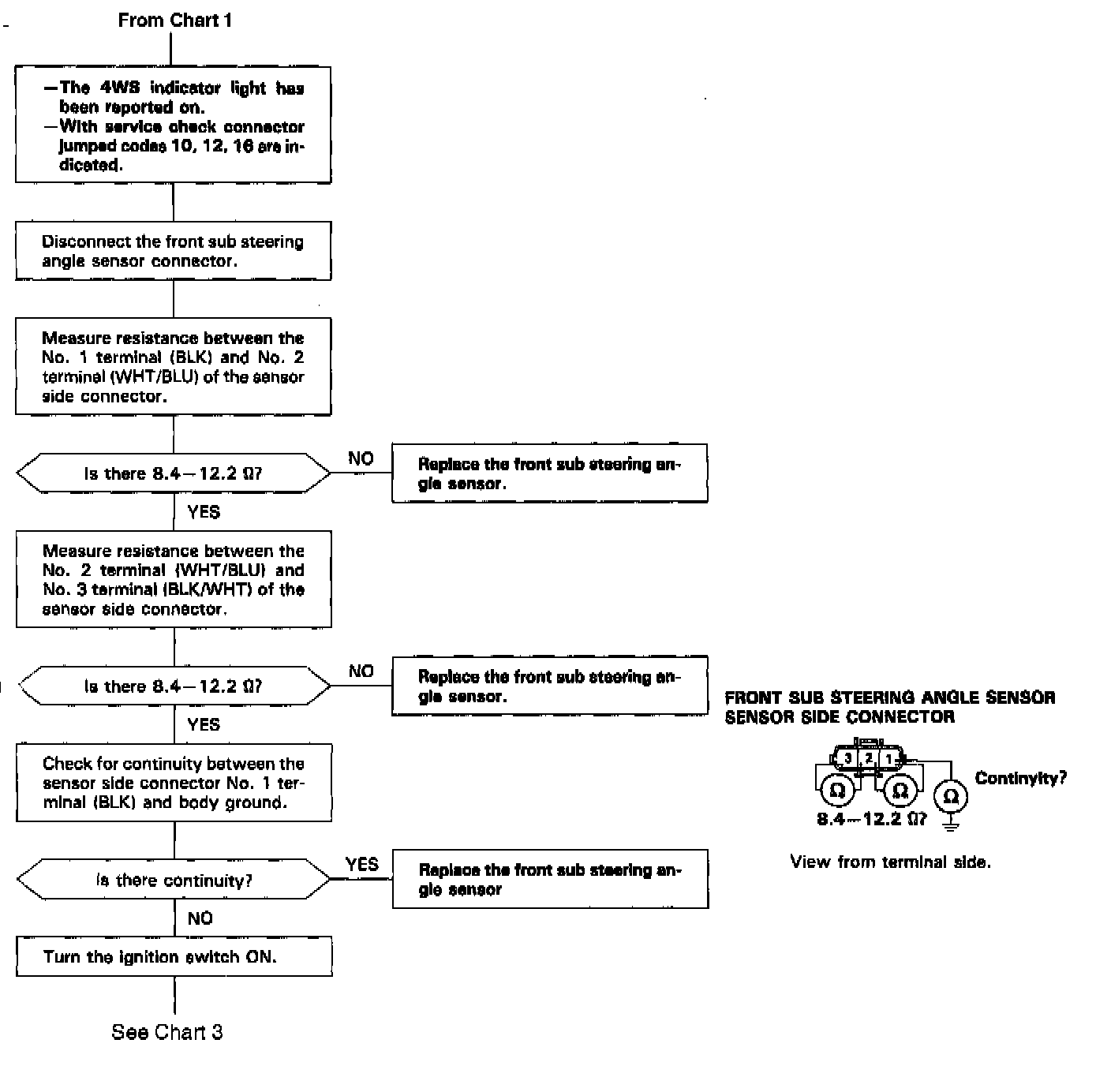

Chart 2 Of 3 Indicator Light Tests:
Chart 3 Of 3 Indicator Light Tests:
