Removal and Installation

Starter Replacement:

NOTE: The radio may have a coded theft protection circuit. Be sure to get the customer's code number before - Disconnecting the battery.
- Removing the No. 43 (lOA) fuse. (In the under-hood fuse/relay box)
- Removing the radio.
After service, reconnect power to the radio and turn it on. When the word "CODE" is displayed, enter the customer's 5-digit code to restore radio operation.

1. Disconnect the negative cable from the battery.
2. Remove the engine wire harness from the harness clip on the starter motor.

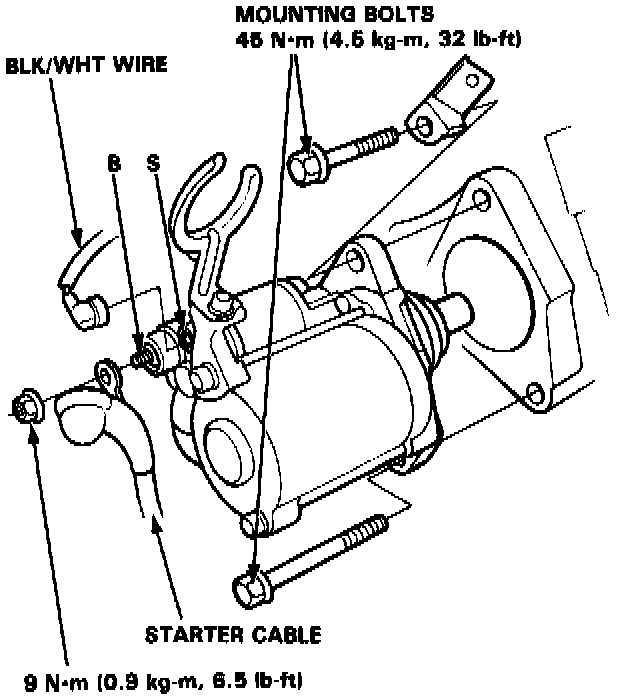

3. Disconnect the starter cable from the B terminal on the solenoid, and the BLK/WHT wire from the S terminal.

NOTE: In the case of an A/T model, the starter cable also has to be removed from the bracket on the transmission housing.

4. Remove the tw0 mounting bolts holding the starter, then remove the starter motor.
