Reassembly

Reassemble the starter in the reverse order of disassembly.

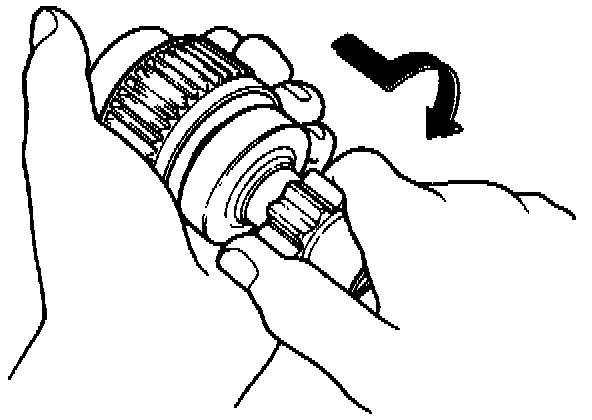

Overruning Clutch Inspection:

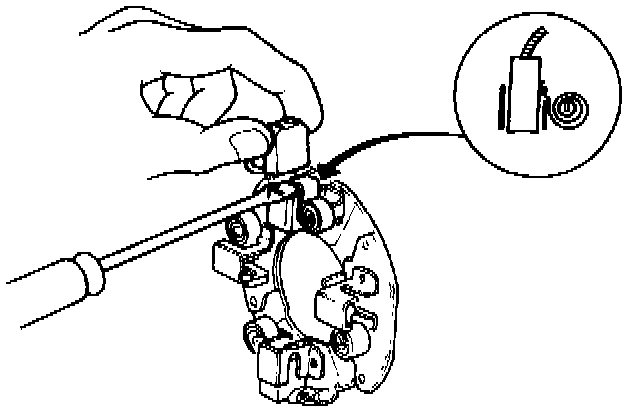

1. Pry back each brush spring with a screwdriver, then position the brush about halfway out of its holder, and release the spring to hold it there.

Starter Brush Holder Assembly:

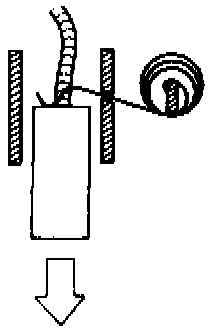

2. Install the armature in the housing. Next pry back each brush spring again and push the brush down until it seats against the commutator, then release the spring against the end of the brush.

Installation Of Brush Housing Onto The Armature:

3. Install the end cover on the brush holder.
