Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 43, 44, 45, 46, 47, 50, and 51

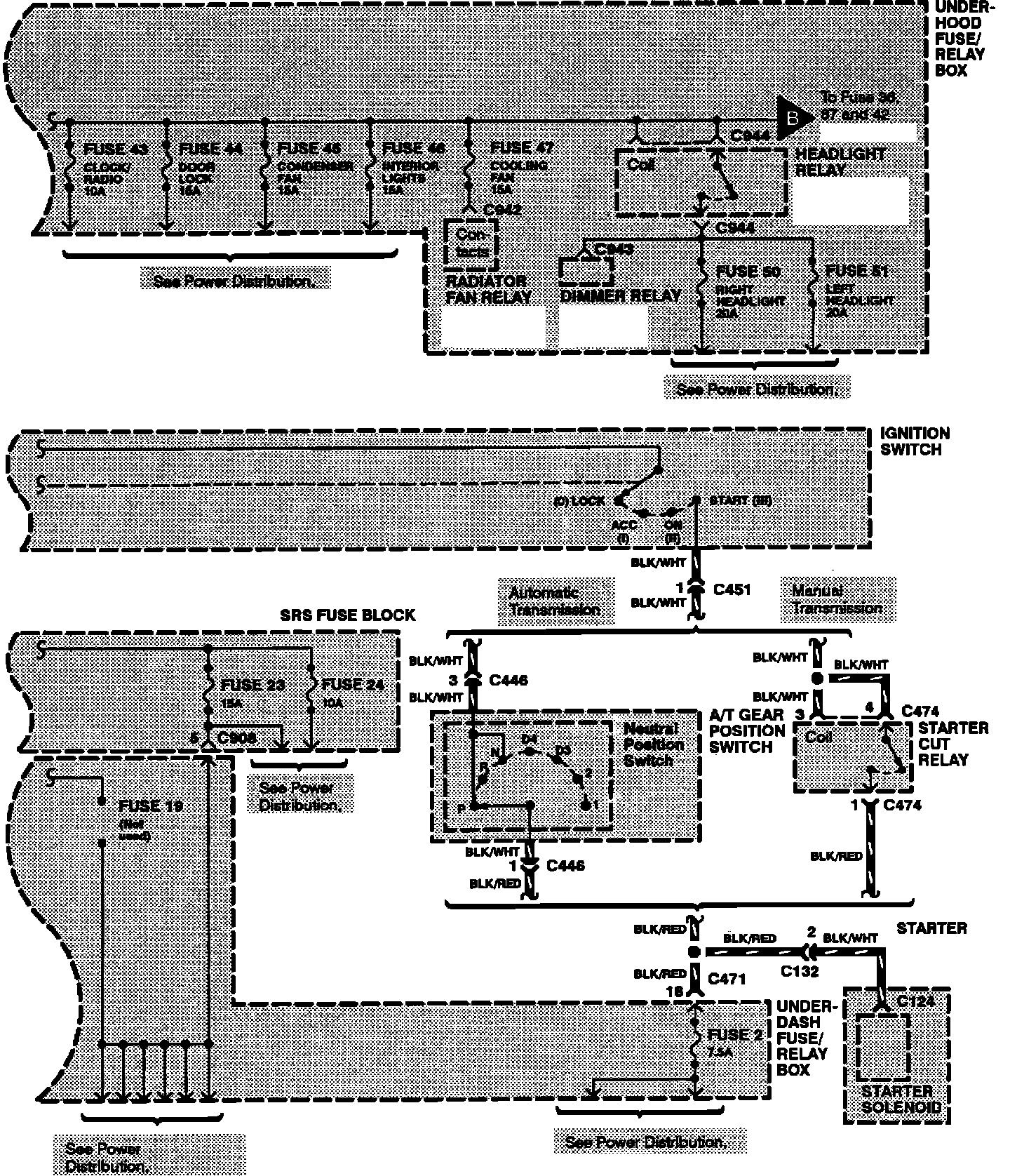

Fuse 43, 44, 45, 46, 47, 50, and 51

Programmed Fuel Injection System:
