Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuse 2, 3, 4, 6

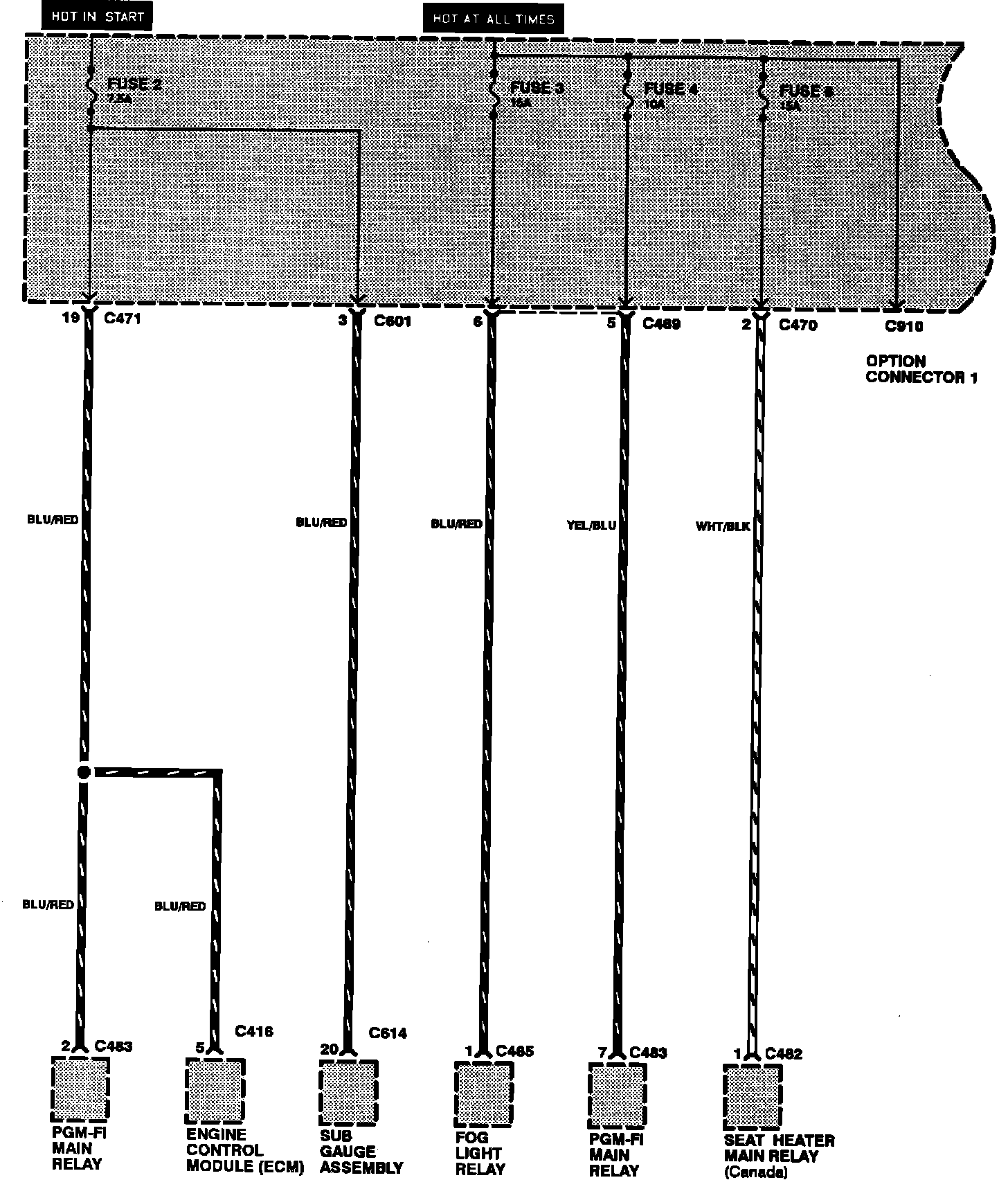

Fuse 2, 3, 4, 6

Power Distribution:
