Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Alternator >> Testing and Inspection

Alternator: Testing and Inspection

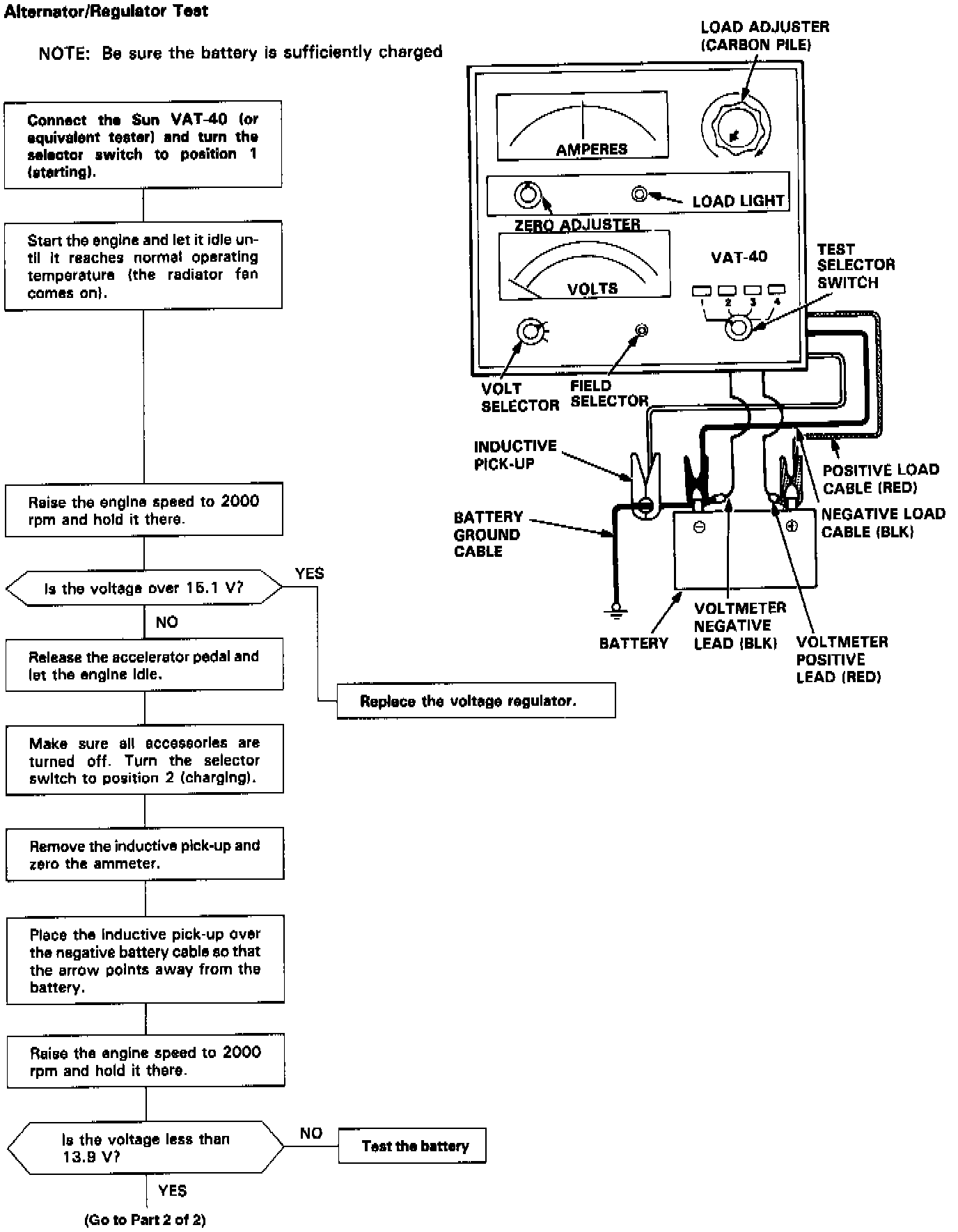

Alternator/Regulator Test (Part 1 Of 2):

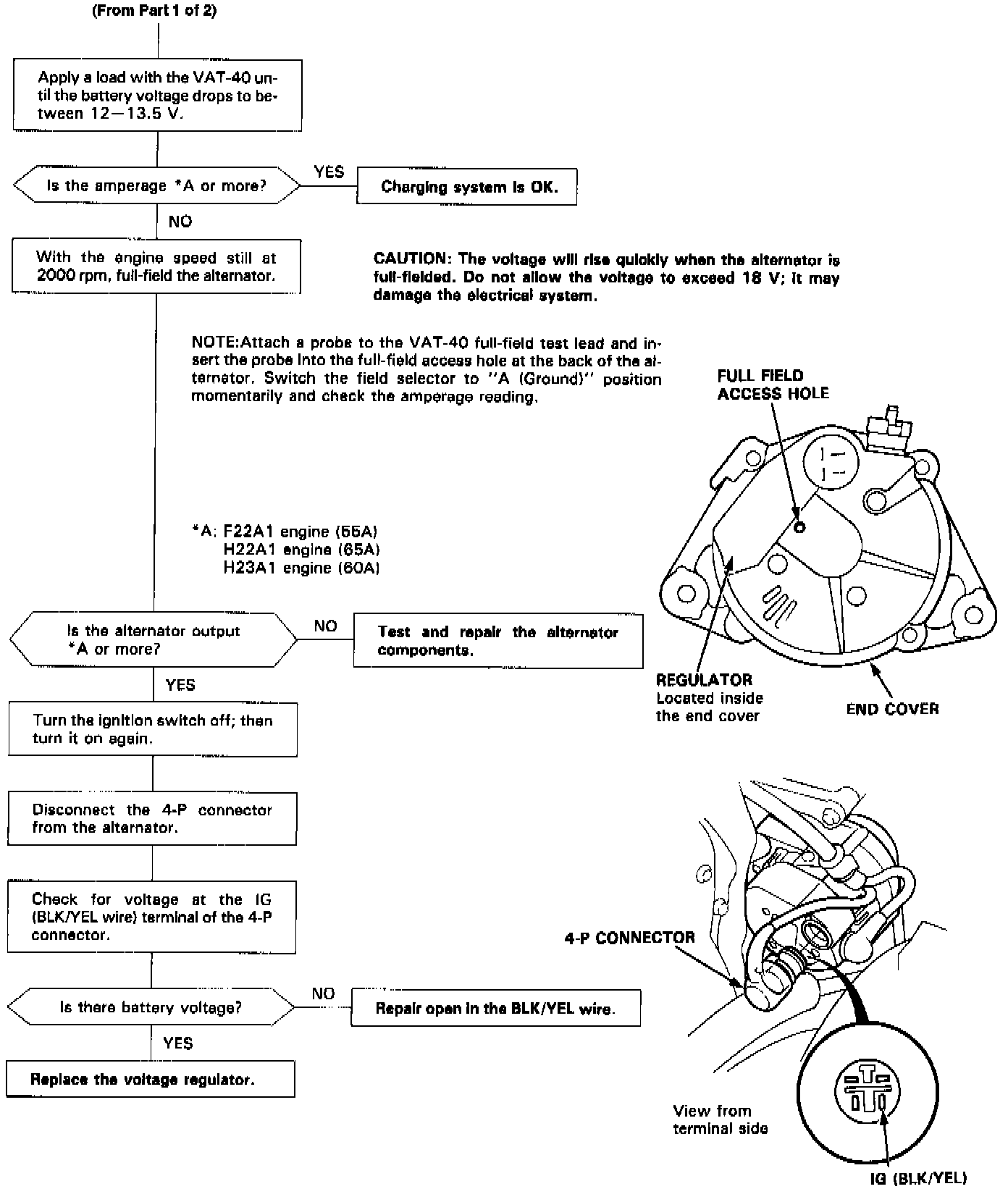

Alternator/Regulator Test (Part 2 Of 2):
