Disassembly and Reassembly/Overhaul

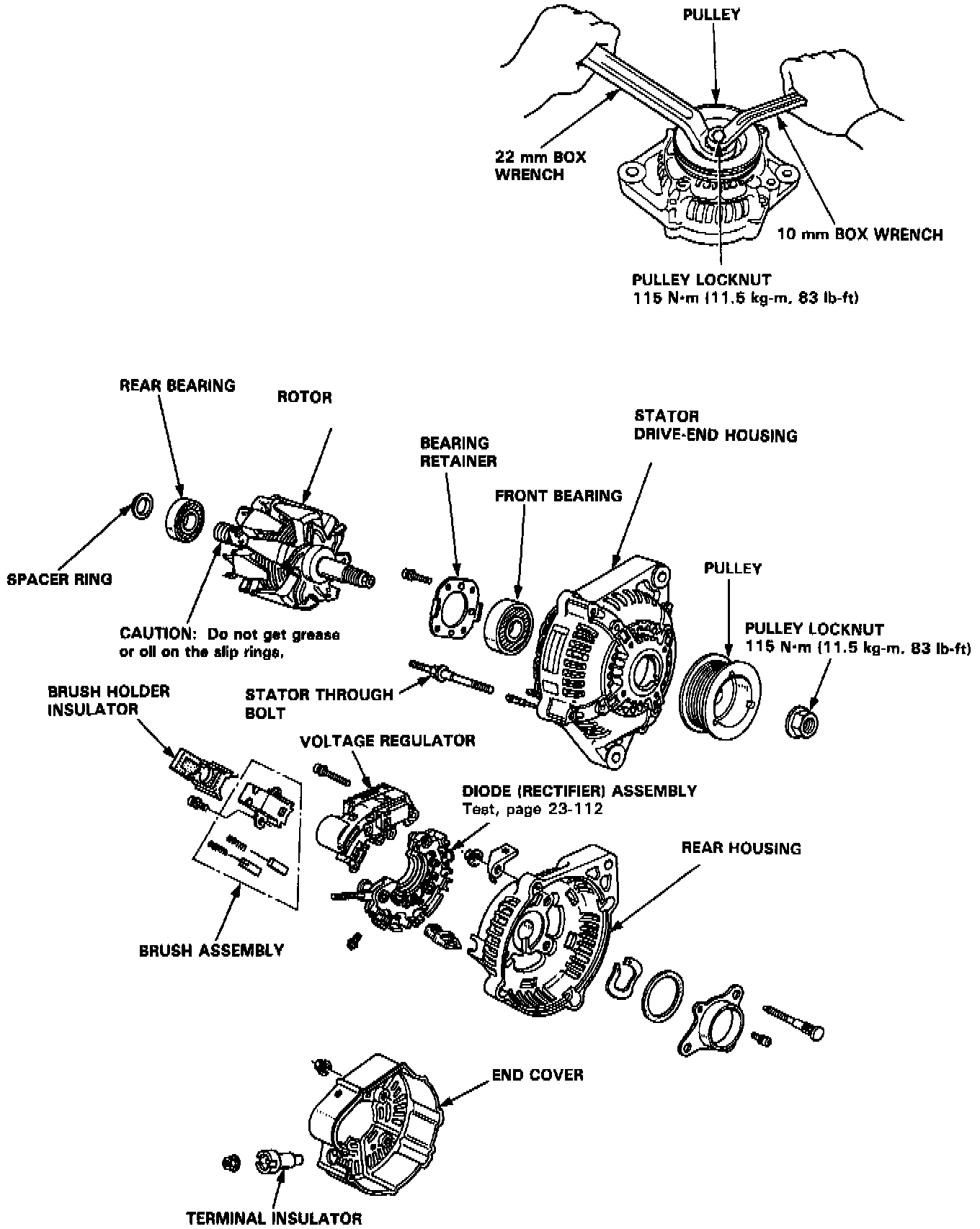

Alternator Overhaul:

NOTE: It is only necessary to separate the pulley, drive end housing, and rotor when the front bearing needs replacement.

To remove the pulley, loosen the locknut with 10 mm and 22 mm wrenches. If necessary, use an impact wrench
