Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Diagrams >> Electrical Diagrams >> Canada

Canada

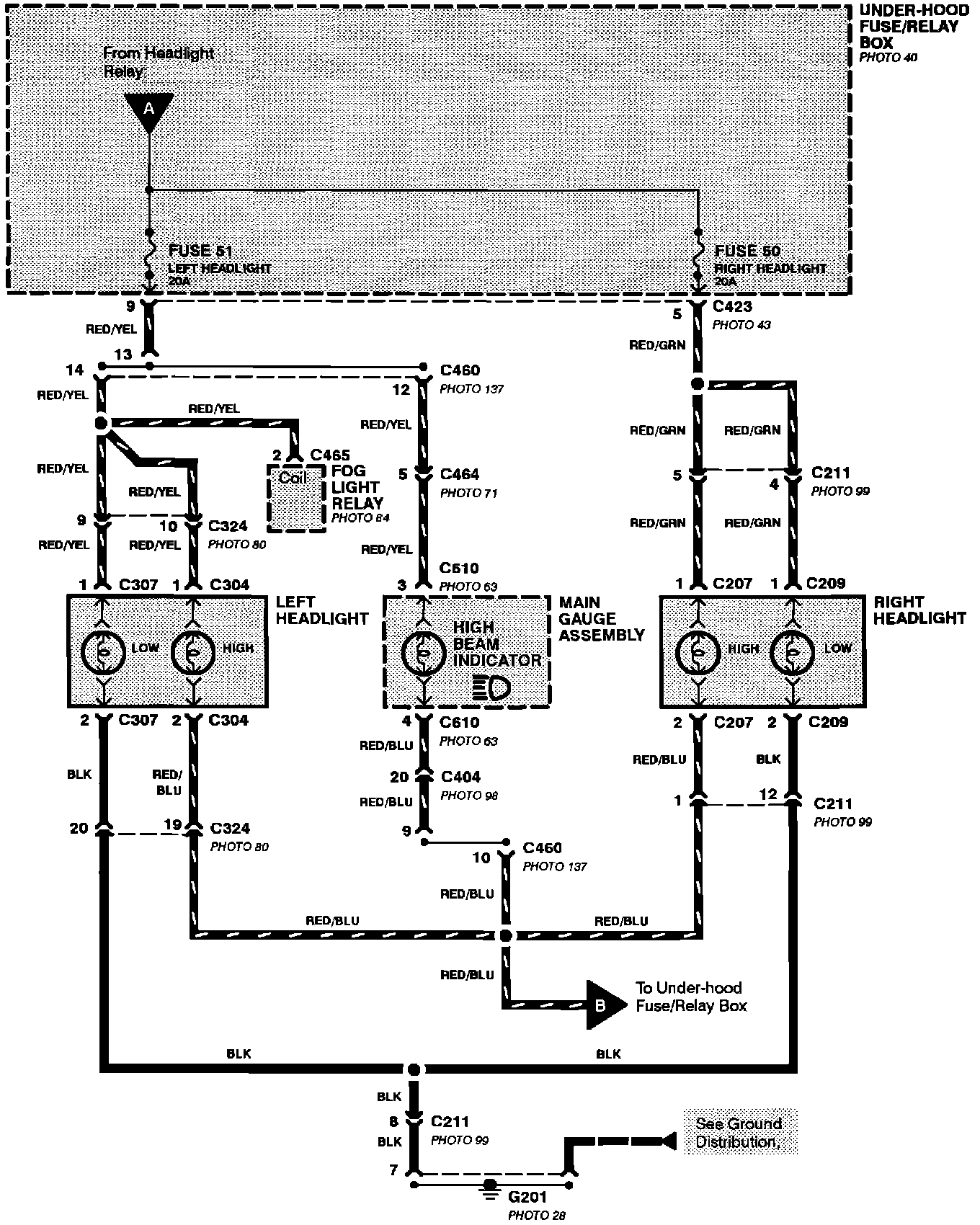

Headlight Switch: All Models:

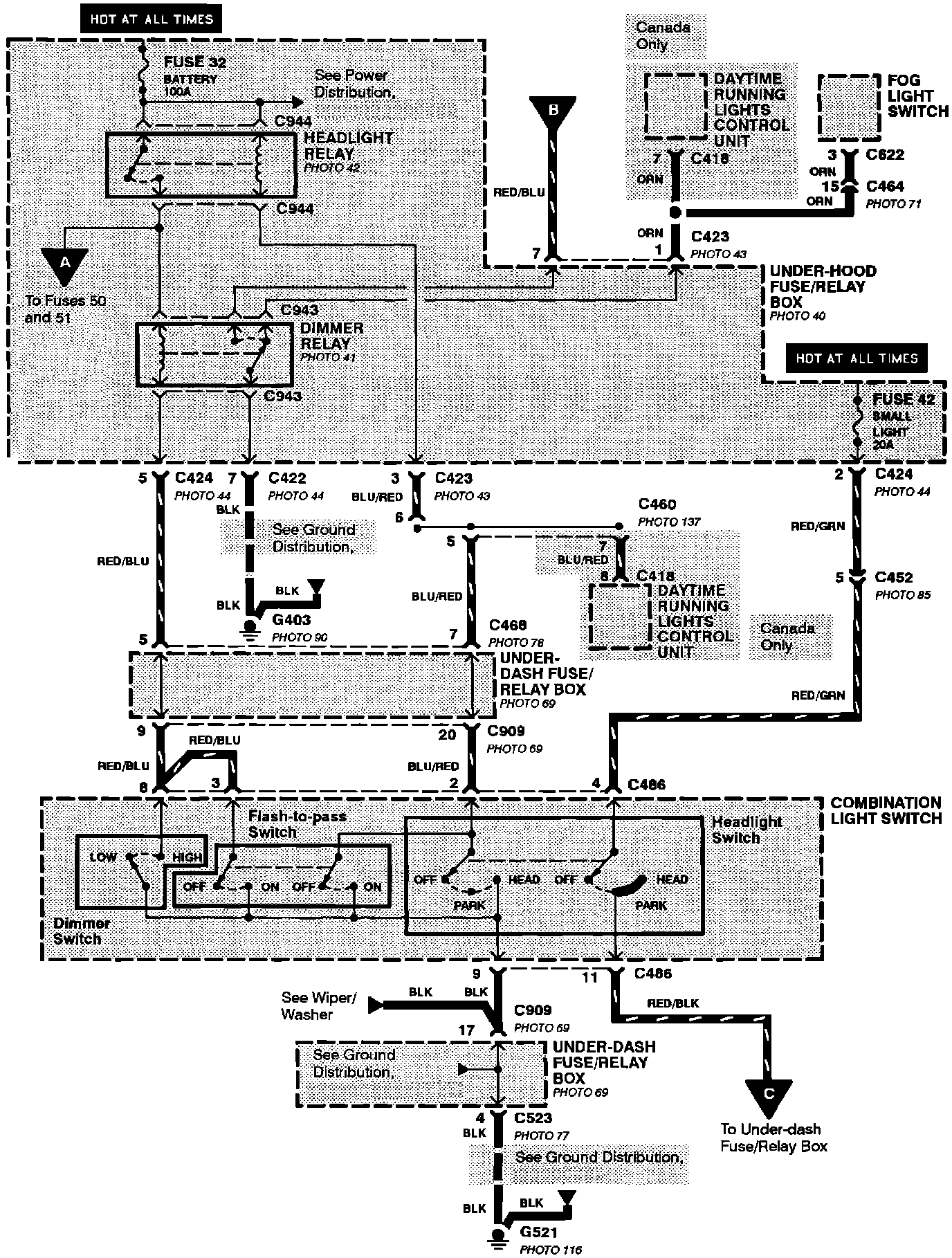

Headlight Switch: USA:

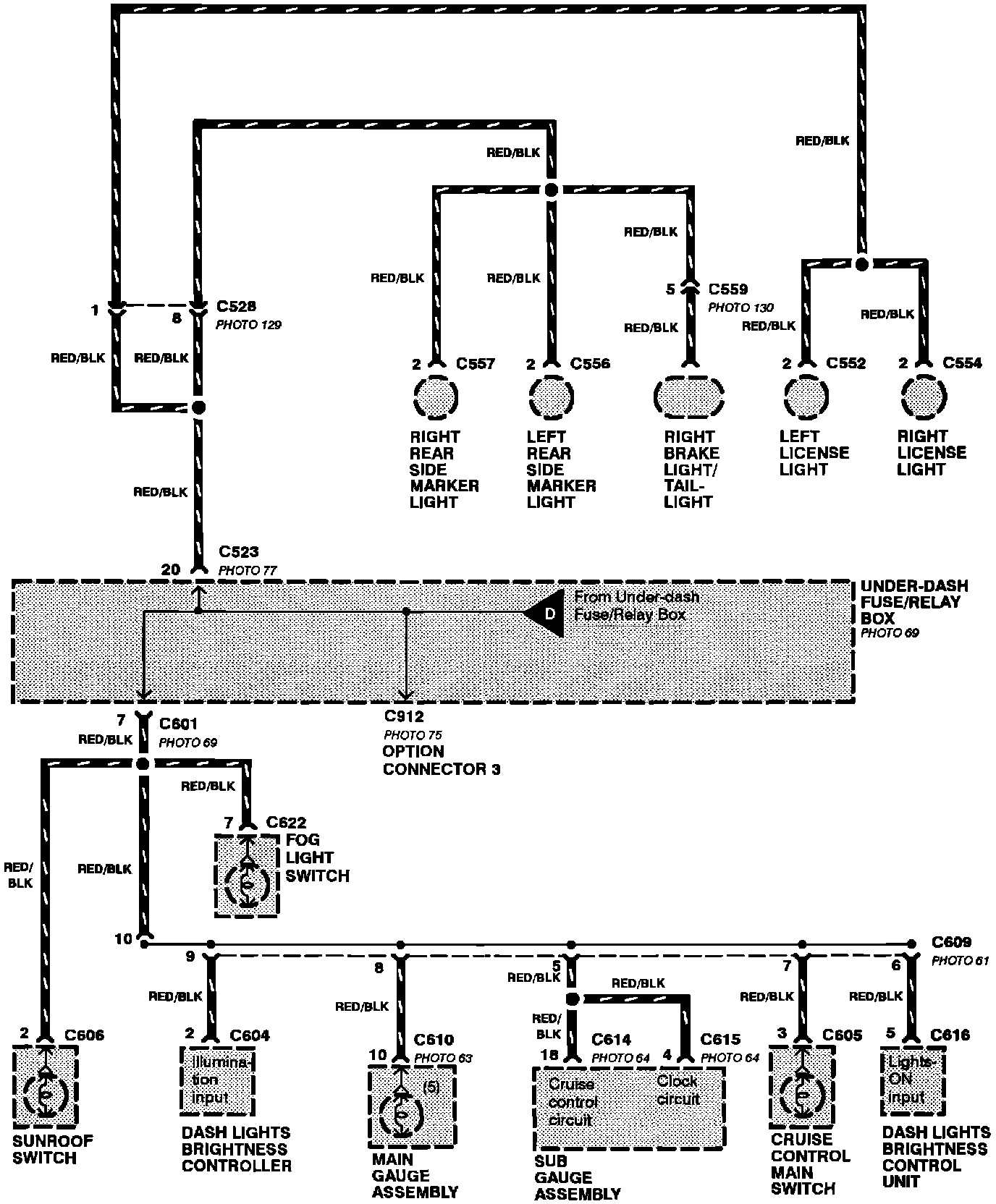

Headlight Switch: All Models:

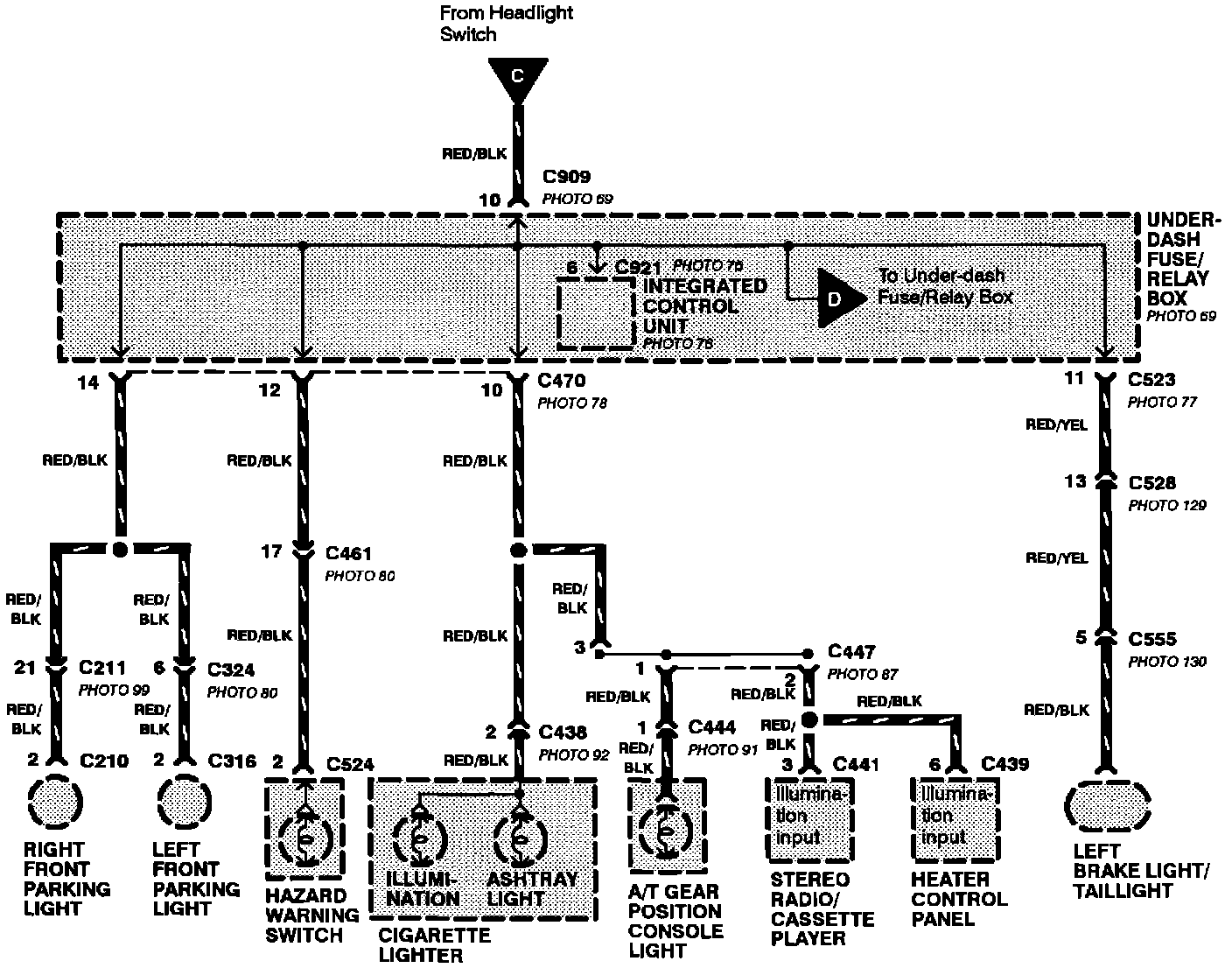

Headlight Switch: All Models:
