Evaporator Temperature Sensor / Switch: Testing and Inspection

A/C Thermostat Test:

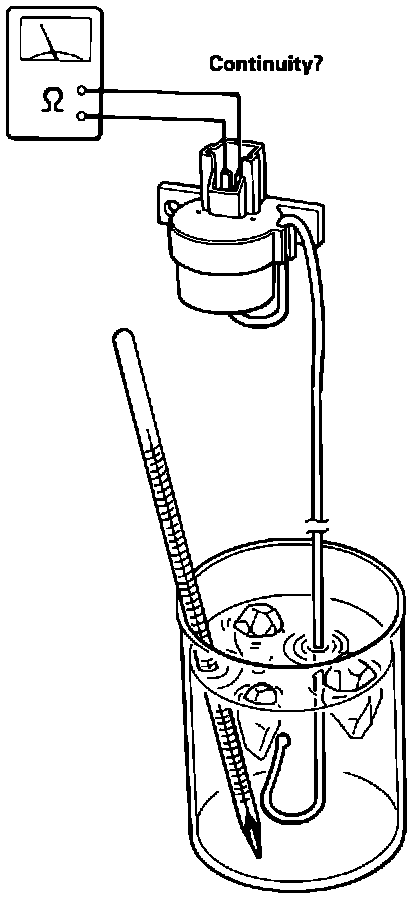

- Dip the A/C thermostat into a cup filled with ice water, and check for continuity between the terminals.
- Cut off 35 - 31°F (1.5 - -O.5°C)
- Cut in 36 - 41°F (2.5 - 5°C)

- If cut off or cut in temperature is too low or too high, replace the A/C thermostat.
