Brake Switch (Cruise Control): Testing and Inspection

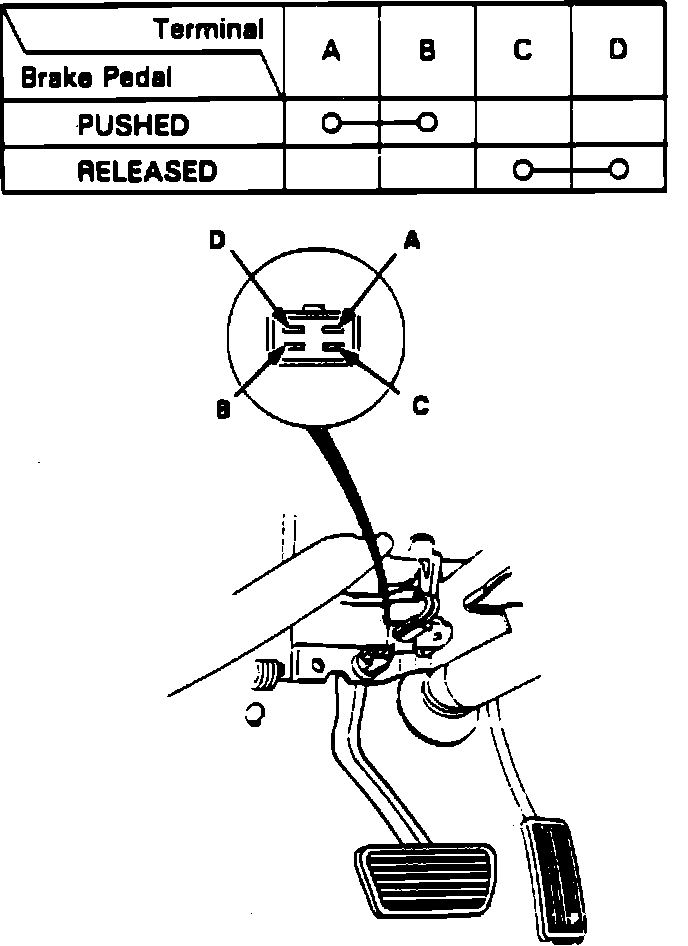

Fig. 18 Brake Light Switch:
1. Disconnect 4-P connector from switch.
2. Check for continuity between terminals, Fig. 18.
3. Adjust pedal height if necessary or replace switch if defective
1. Disconnect 4-P connector from switch.
2. Check for continuity between terminals, Fig. 18.
3. Adjust pedal height if necessary or replace switch if defective
