Short Connector Installation
SHORT CONNECTOR INSTALLATIONWARNING:
To avoid accidental deployment and possible injury, always install the protective short connector on the driver's airbag connector and on cars equipped with front passenger's airbag, install protective short connectors on the driver's airbag and front passenger's airbag before working near any SRS wiring.
NOTE: The radio may have a 5-digit coded theft protection circuit. Be sure to get the customer's code number before disconnecting the battery.
1. Disconnect the battery negative cable, then disconnect the positive cable.
2. Install the short connector(s):
Driver's Side:

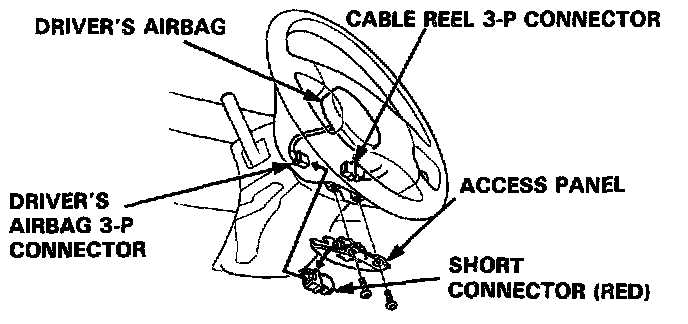

- Remove the access panel from the steering wheel, then remove the short connector (RED) from the panel.
- Disconnect the connector between the driver's airbag and cable reel, then install the short connector (RED) on the airbag side of the connector.
Front Passenger's Side:
- Remove the glove box, then remove the short connector (RED) from the holder.
- Disconnect the connector between the front passenger's airbag and SRS main harness, then install the short connector (RED) on the airbag side of the connector.
