Failure Mode F

MODE F: OPEN IN FRONT PASSENGER'S AIRBAG INFLATOR.

NOTE: The radio may have a 5-digit coded theft protection circuit. Be sure to get the customer's code number before disconnecting the battery cables.

1. Before disconnecting any part of the SRS wire harness, install the short connector(s) (RED) on the airbag(s).
2. Connect Test Harness B (O7MAZ-SP00500) between the SRS unit and SRS main harness 18-P connector.
3. Reconnect the front passenger's airbag connector, then measure the resistance between the B2 terminal and 88 terminal.





- If resistance is more than 0.2 Kilo Ohm, go to step 4.
- If resistance is less than 0.2 Kilo Ohm, the SRS unit is faulty. Substitute a known-good SRS unit and recheck the voltages.

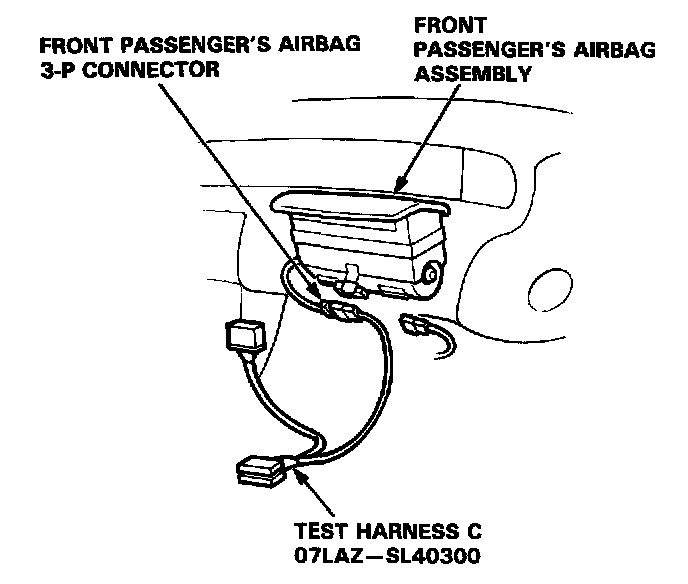

4. Disconnect the front passenger's airbag 3-P connector from the SRS main harness, then connect Test Harness C (O7LAZ-SL40300) to the front passenger's airbag side of the connector.





5. Measure the resistance between the No.7 terminal and the No.8 terminal.





- If resistance is more than 0~2 Kilo Ohm, the front passenger's airbag inflator is faulty. Replace the front passenger's airbag assembly and recheck the voltages.
- If resistance is less than 0.2 Kilo Ohm, the cable reel is faulty. Replace the cable reel and recheck the voltages.
