Failure Mode Diagnostic Chart
Failure Mode Diagnostic Chart

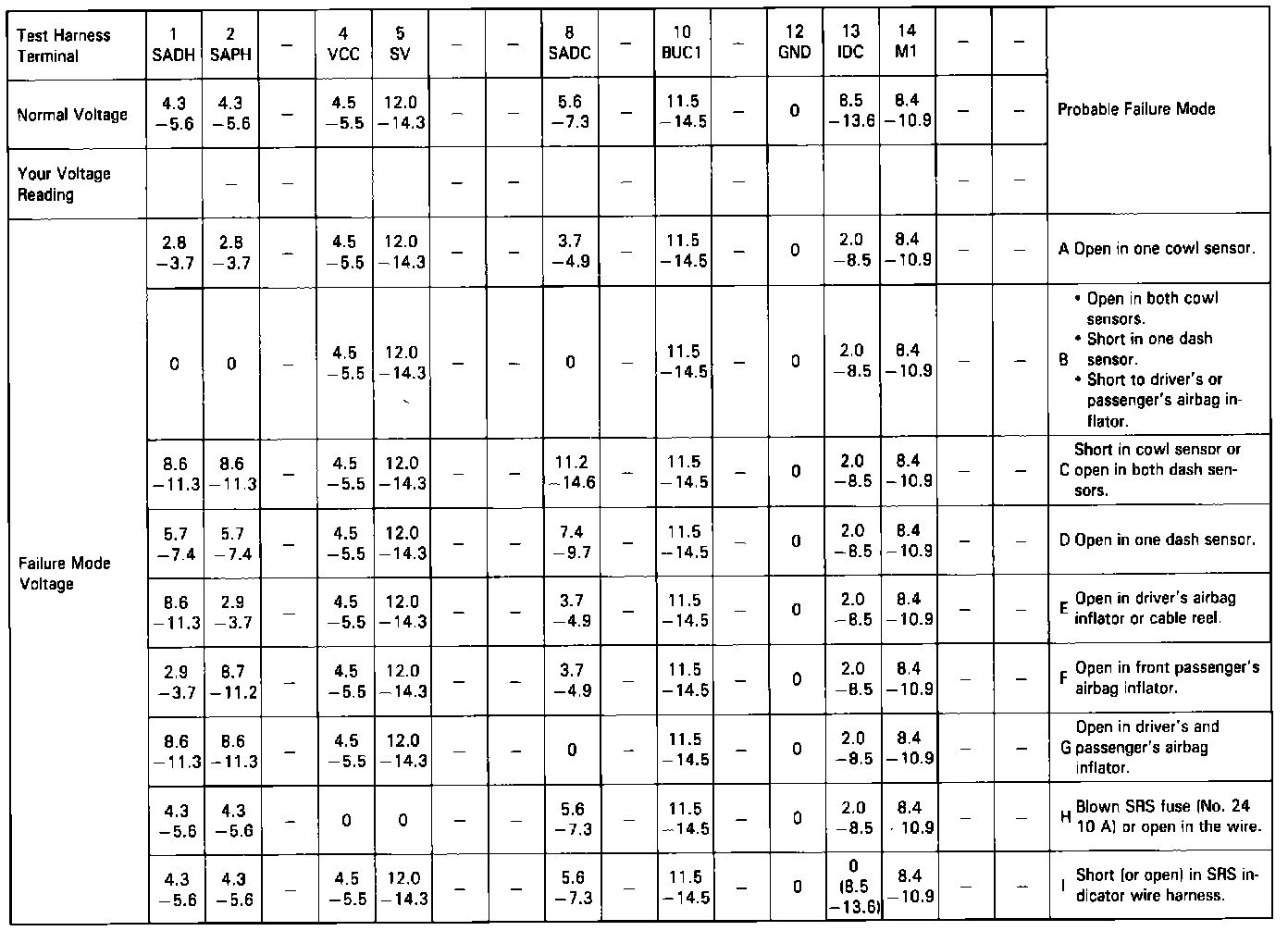

Failure Mode Diagnostic Chart (Without Front Passenger Side Airbag):

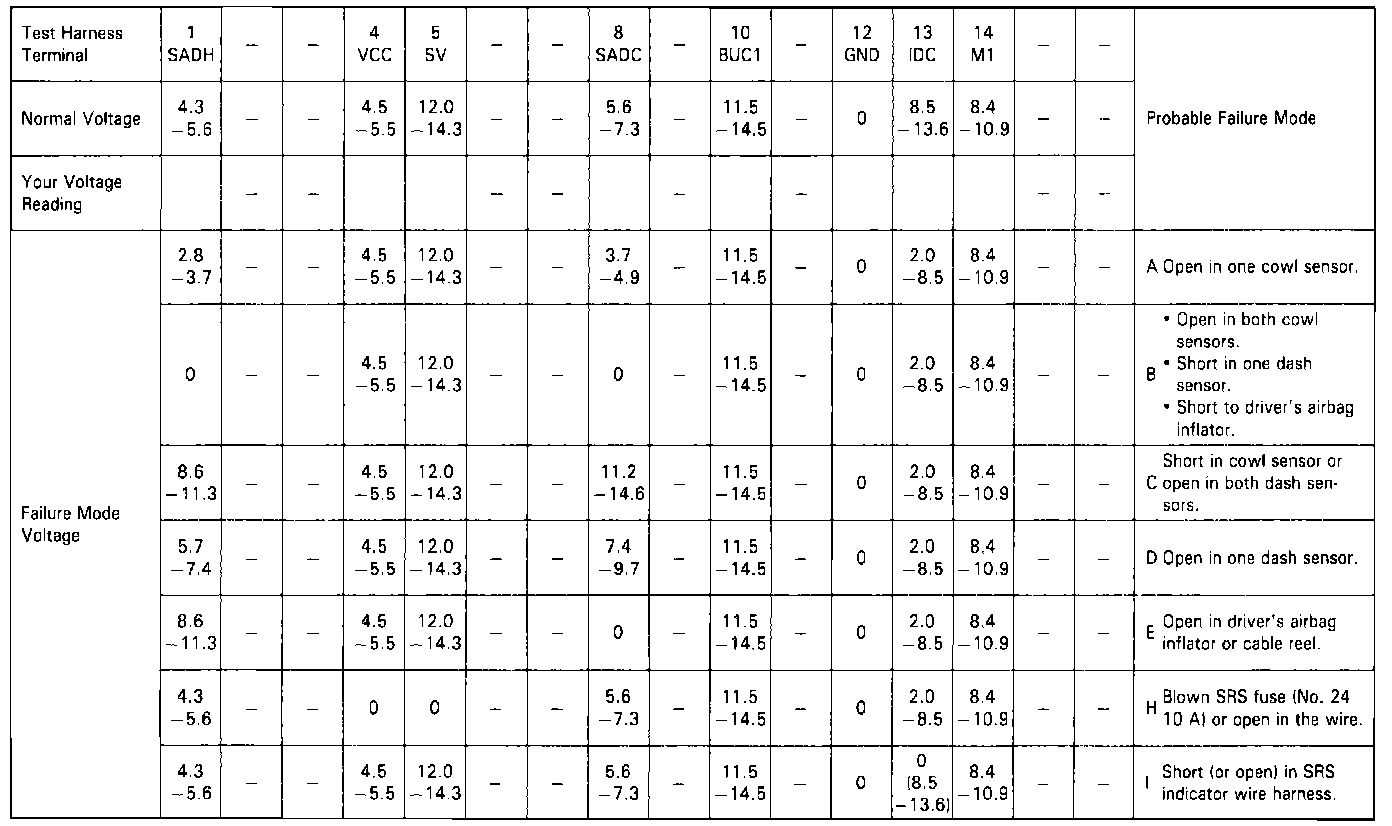

Failure Mode Diagnostic Chart (With Front Passenger Side Airbag):
