Steering Wheel and Cable Reel Alignment

STEERING WHEEL AND CABLE REEL ALIGNMENT

Wheel Alignment:

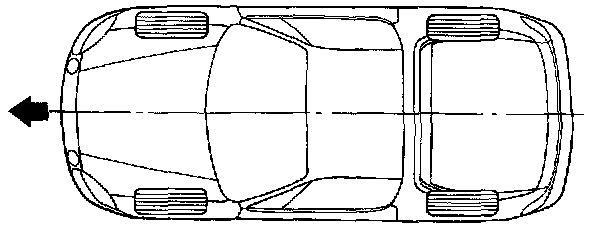

NOTE: To avoid misalignment of the steering wheel or airbag on reassembly, make sure the wheels are turned straight ahead before removing the steering wheel.

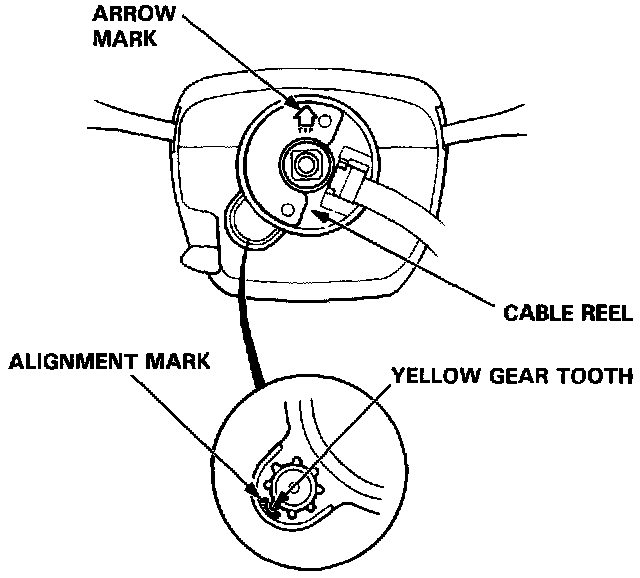

Steering Wheel Alignment With Cable Reel:

- Rotate the cable reel clockwise until it stops.
- Then rotate it counterclockwise (approximately two turns) until:
* The yellow gear tooth lines up with the alignment mark on the cover.
* The arrow mark on the cable reel label points straight up.
