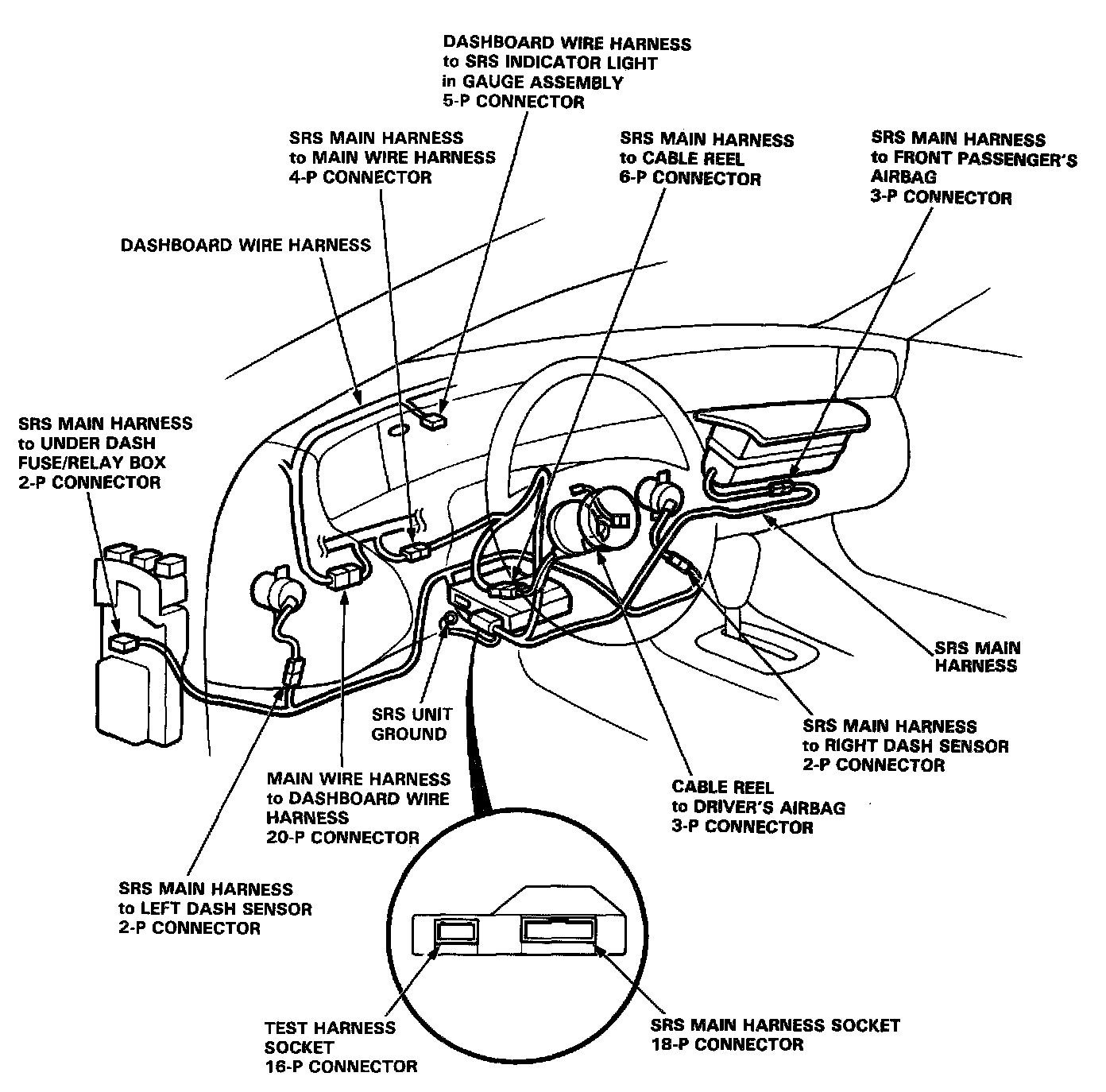

Connector Locations

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)





CAUTION: Make sure all SRS ground locations are clean and grounds are securely attached.

NOTE:
- All SRS electrical wiring harnesses are covered with yellow outer insulation.
- Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
