Electrical Diagrams

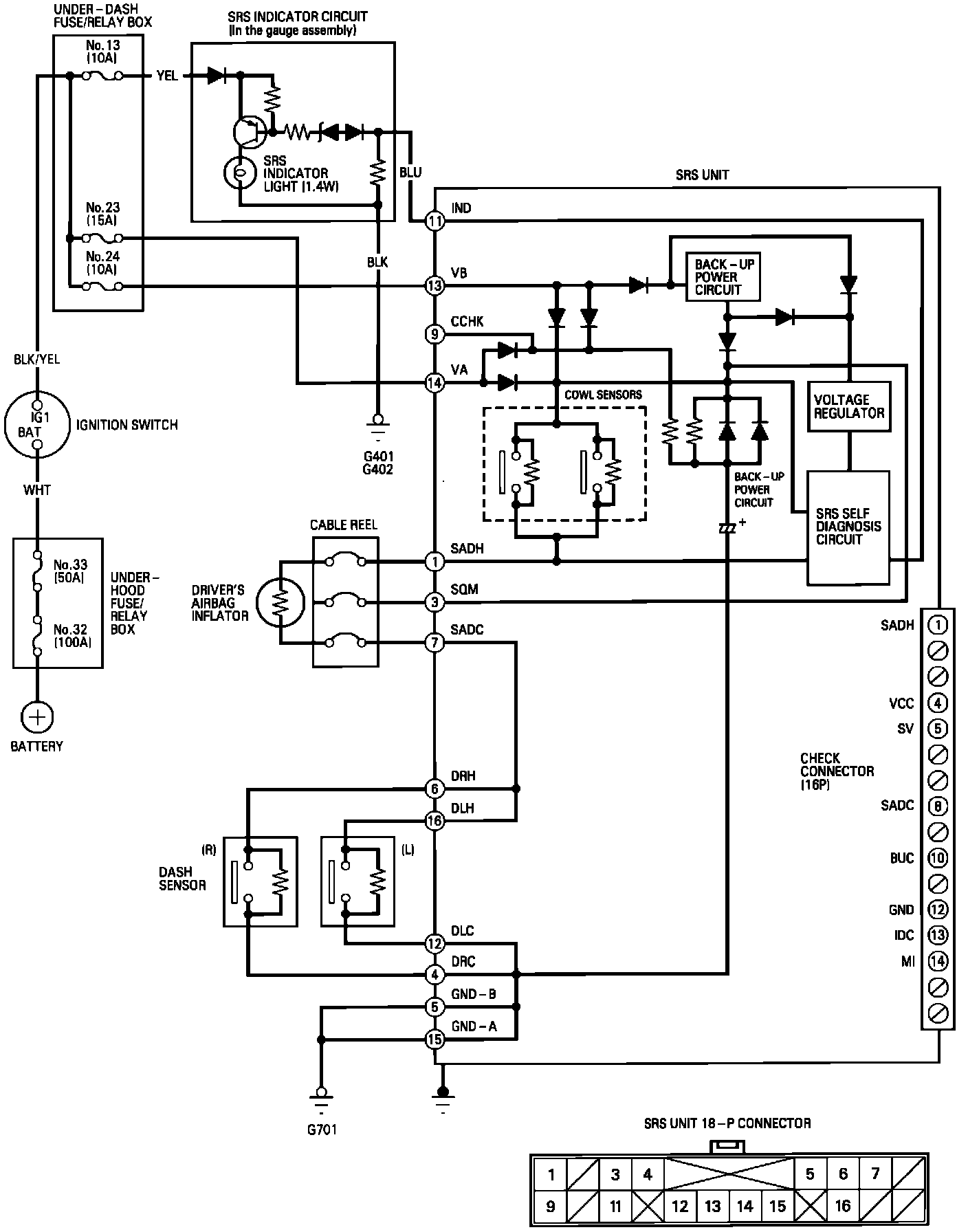

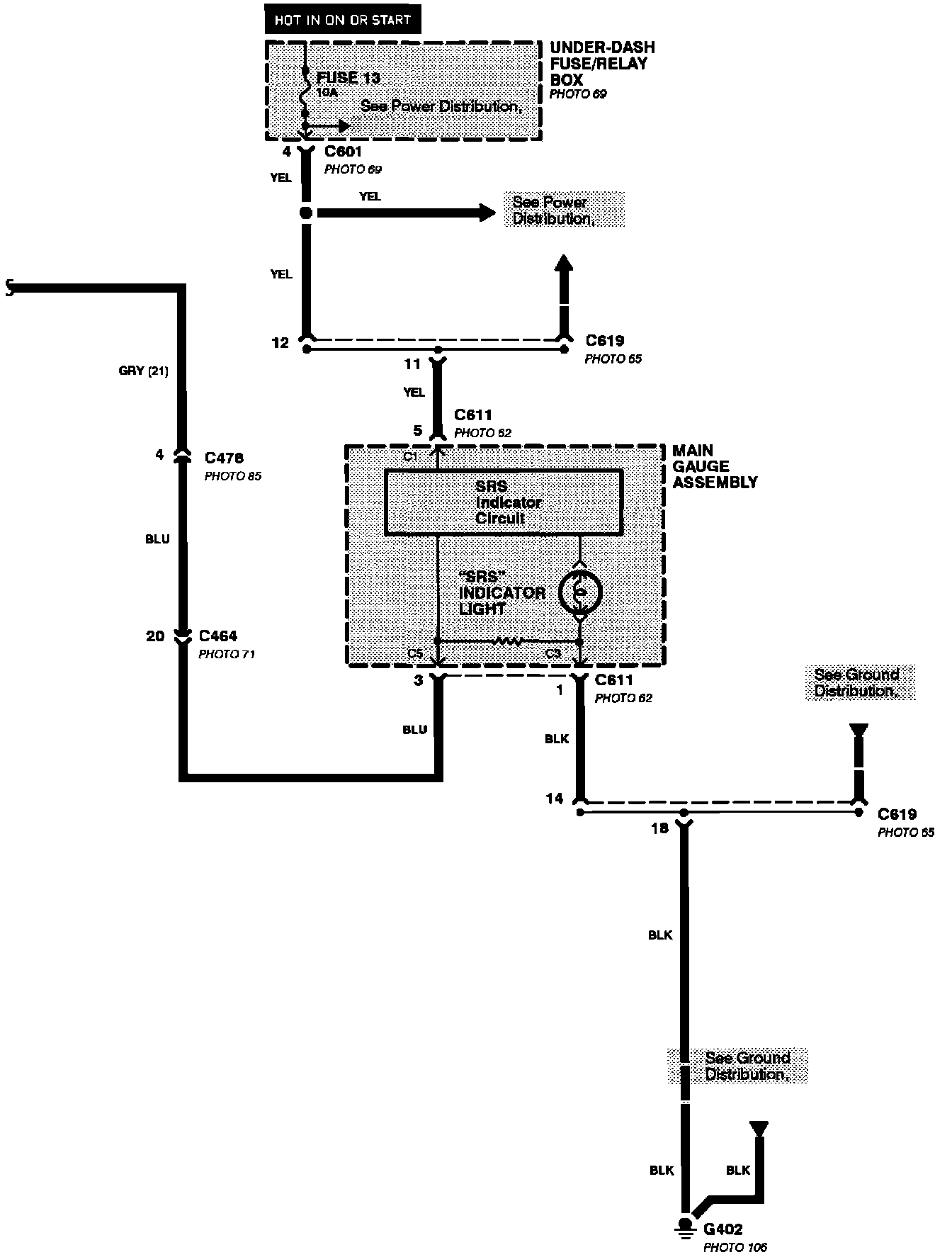

Supplemental Restraint System (SRS): Driver's Airbag (Without Passenger's Airbag):

Supplemental Restraint System (SRS): Driver's Airbag (Without Passenger's Airbag):

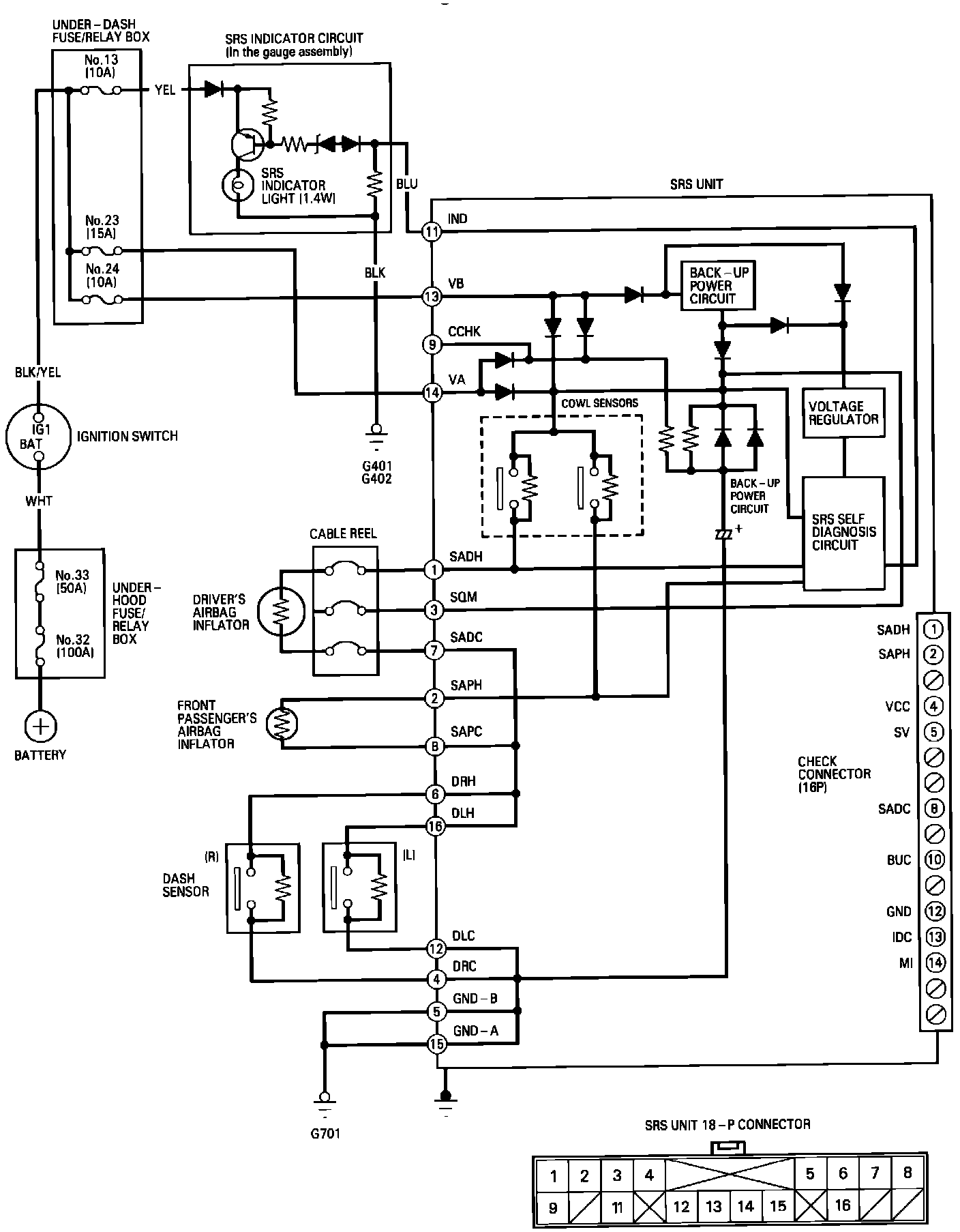

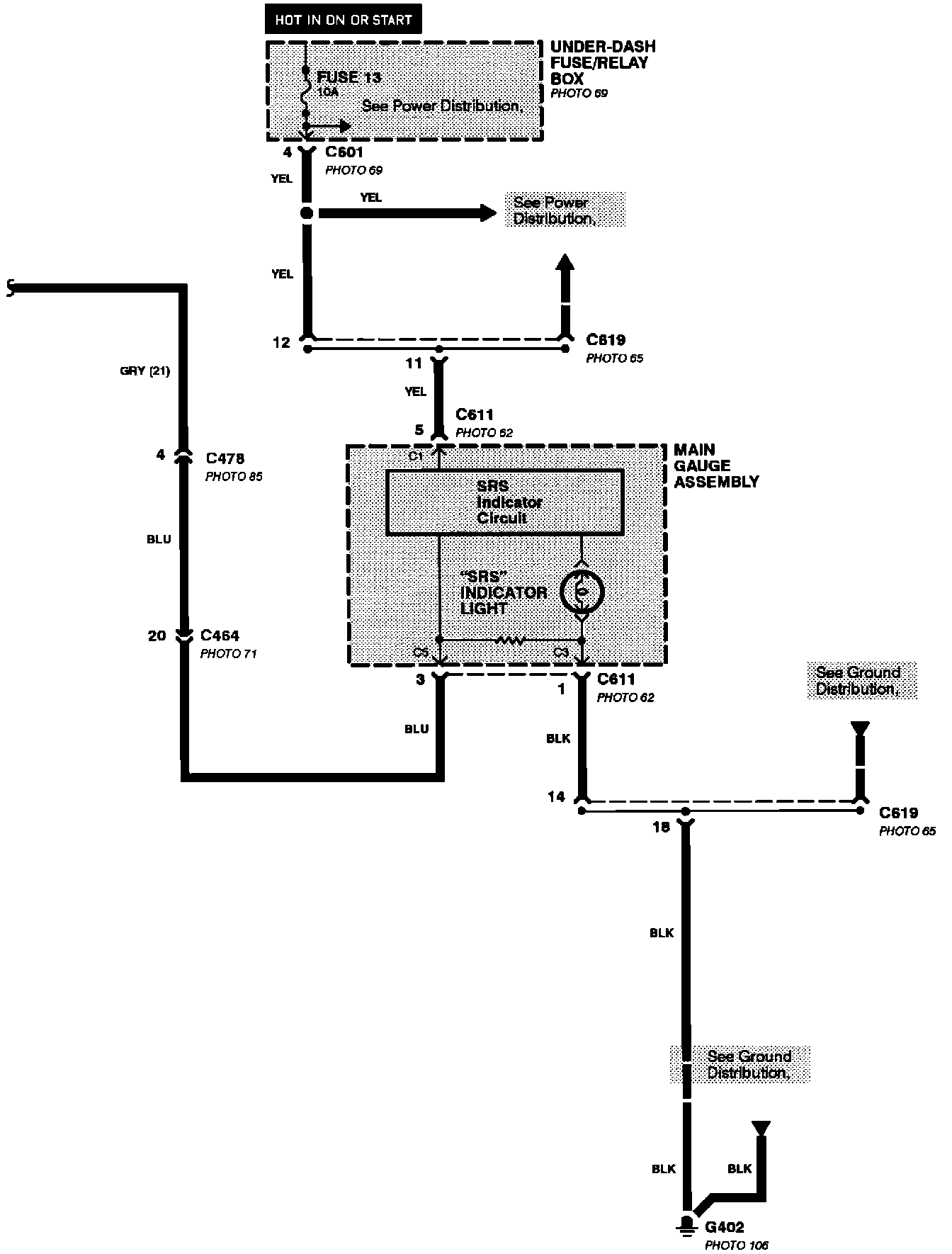

Supplemental Restraint System (SRS): Driver's And Front Passenger's Airbags:

Supplemental Restraint System (SRS): Driver's And Front Passenger's Airbags:

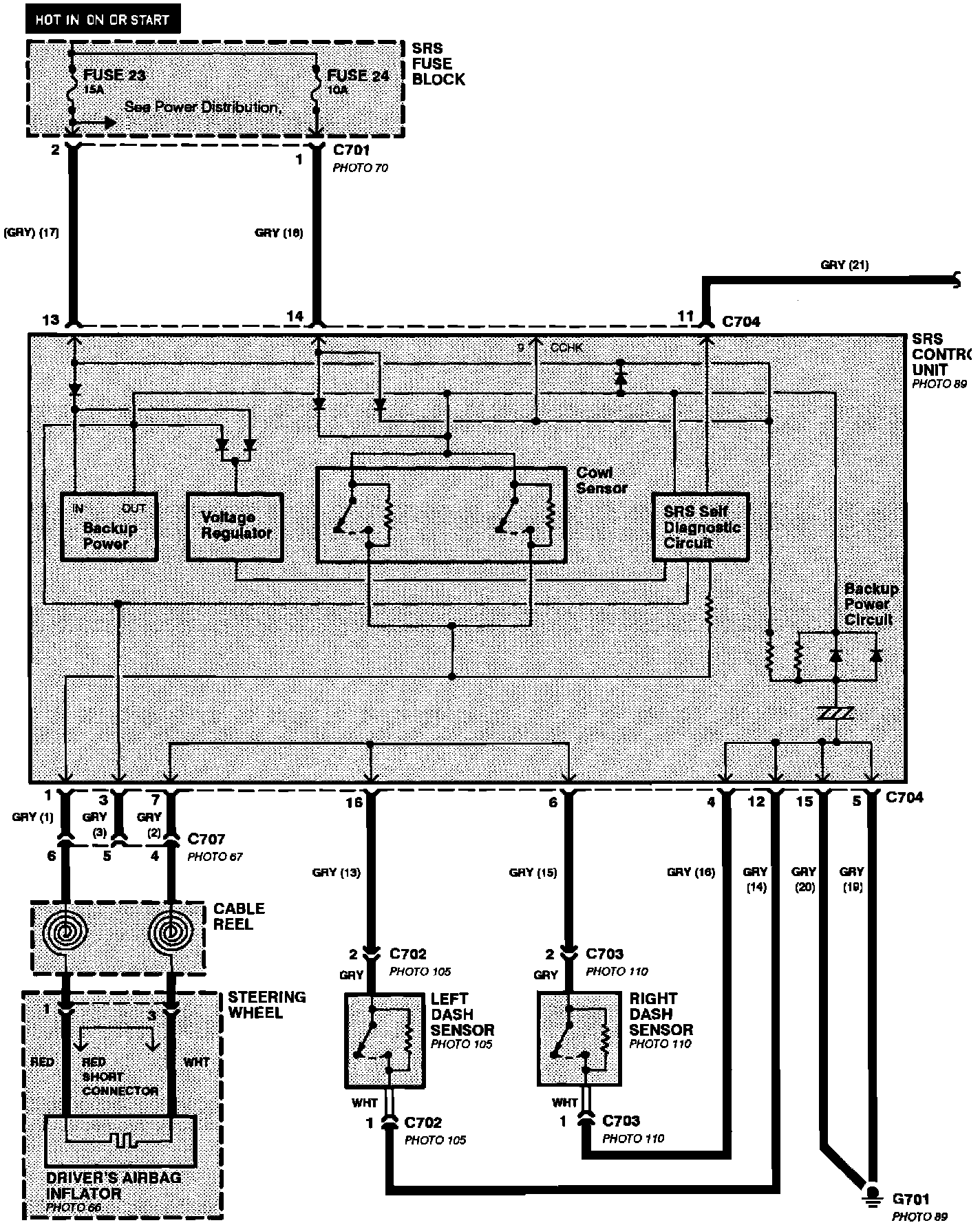

SRS Circuit Diagram (Without Front Passenger Side Airbag):

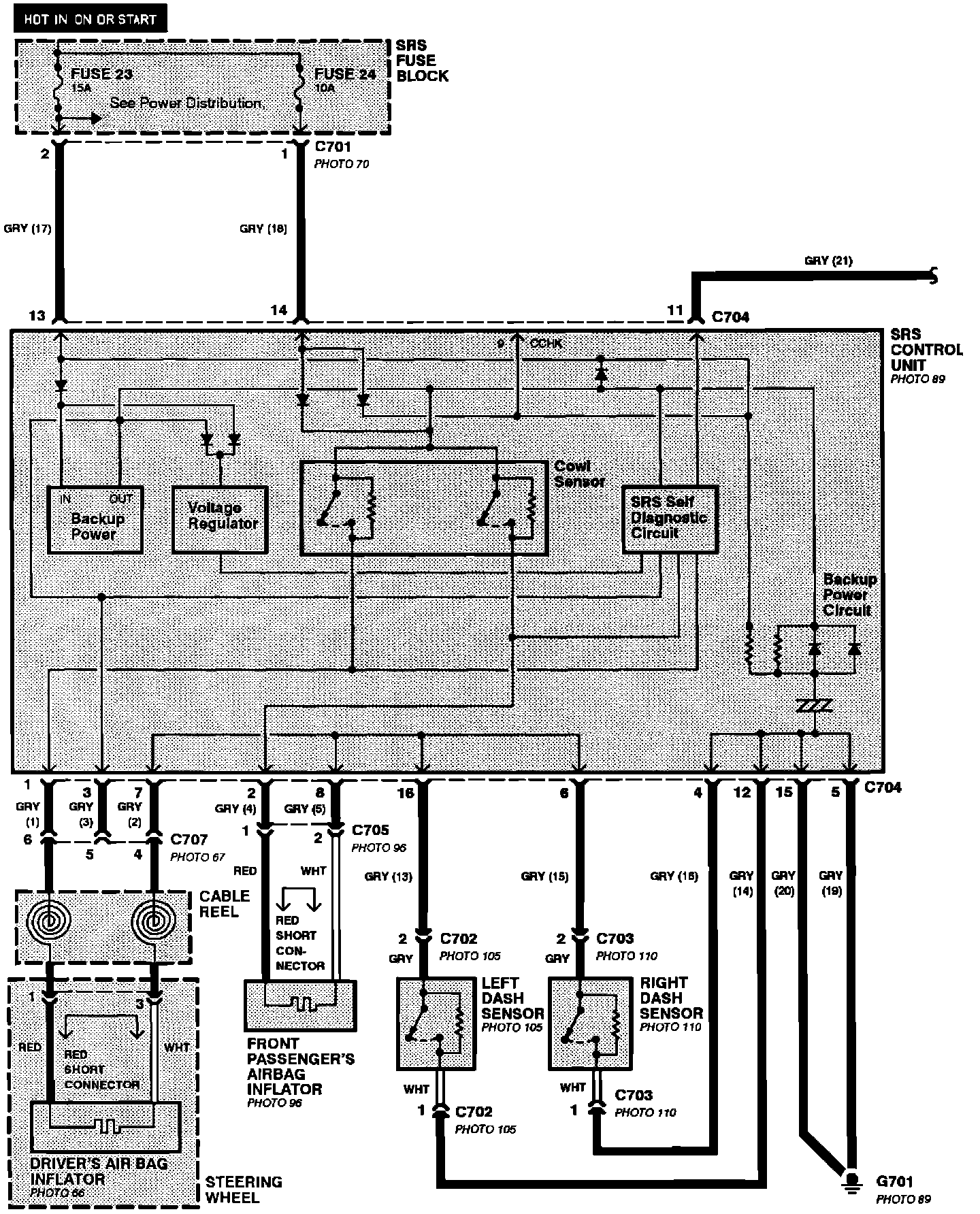

SRS Circuit Diagram (With Front Passenger Side Airbag):
