Interior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

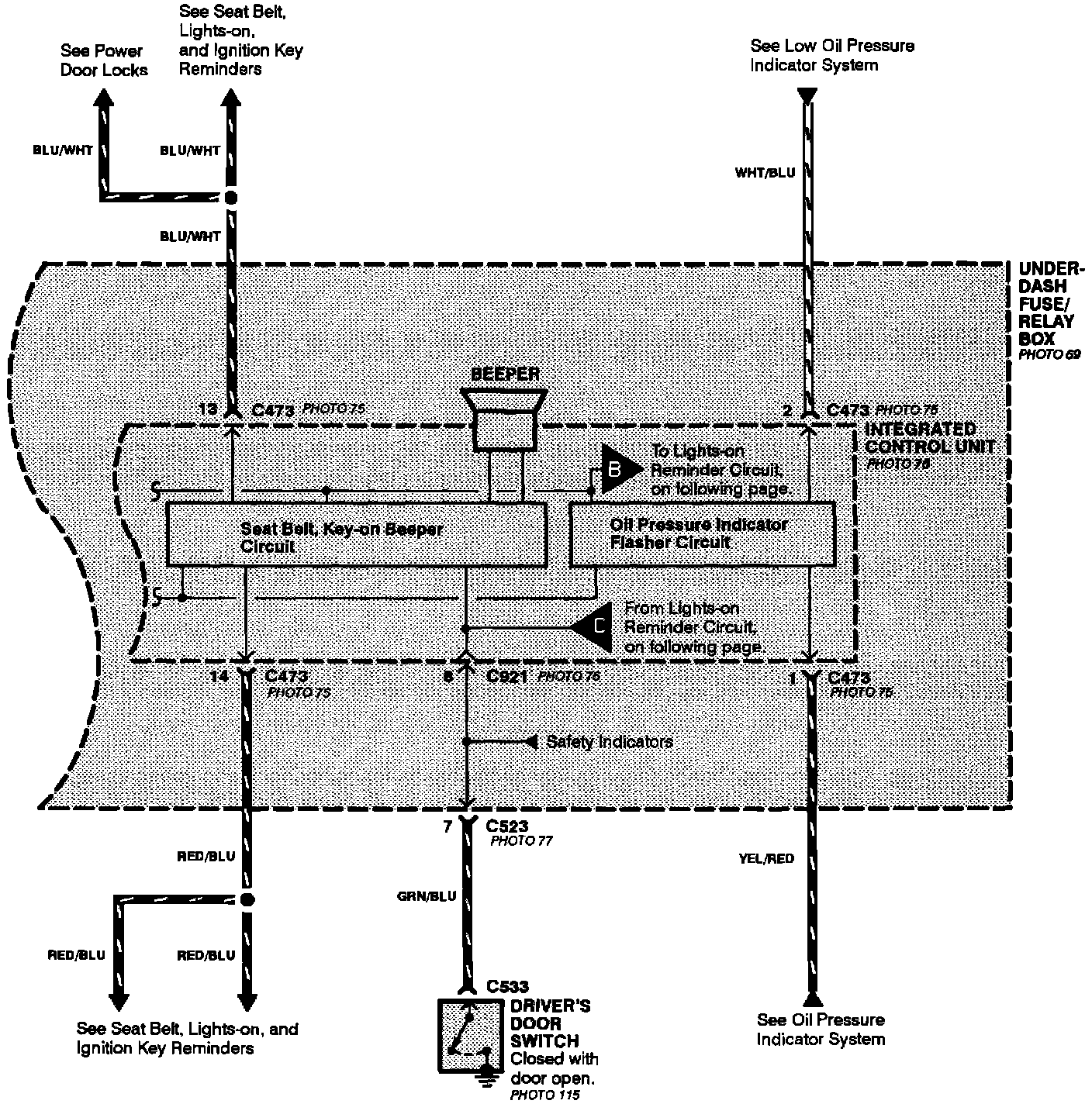

Integrated Control Unit - Part 1 of 4:

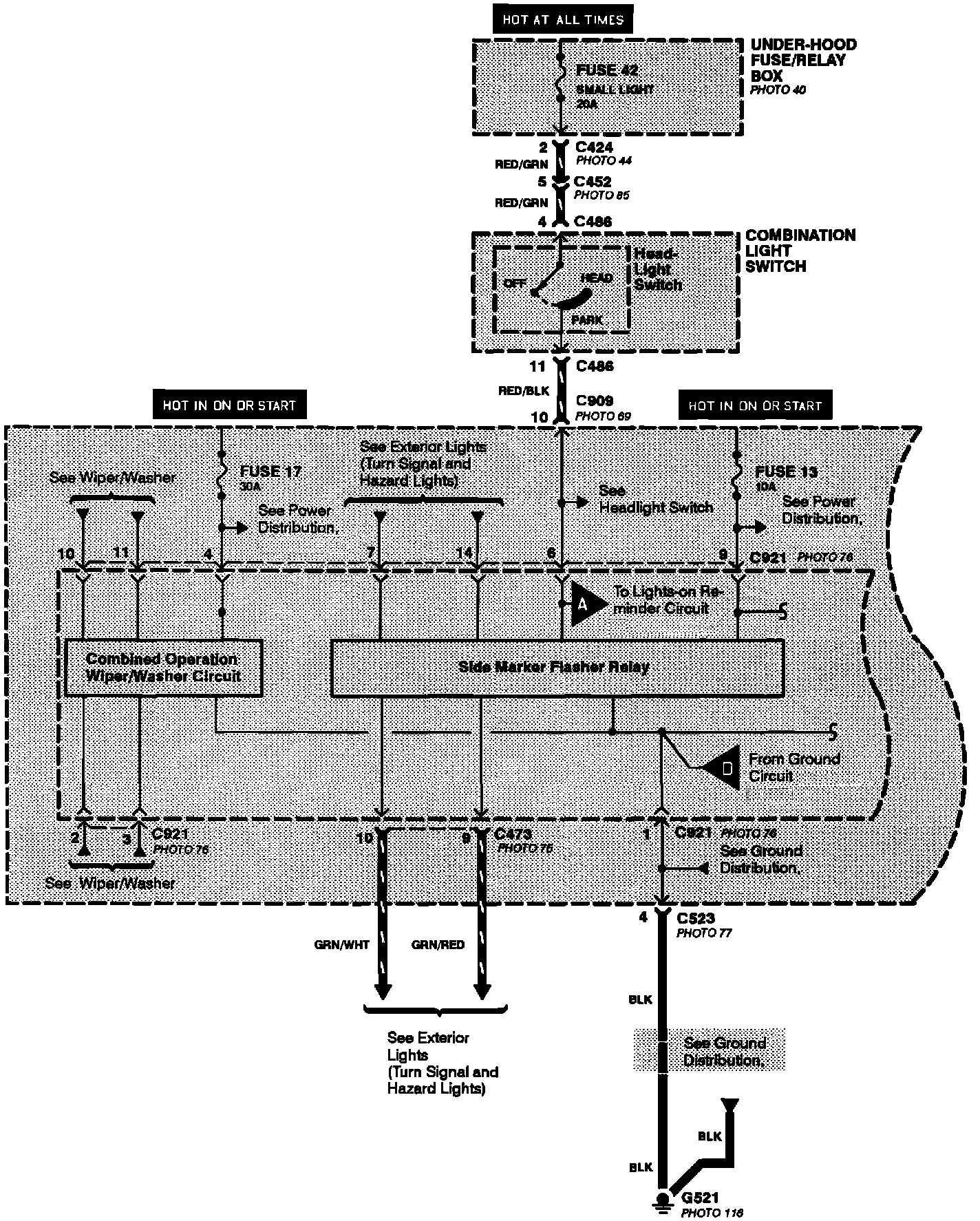

Integrated Control Unit - Part 2 of 4:

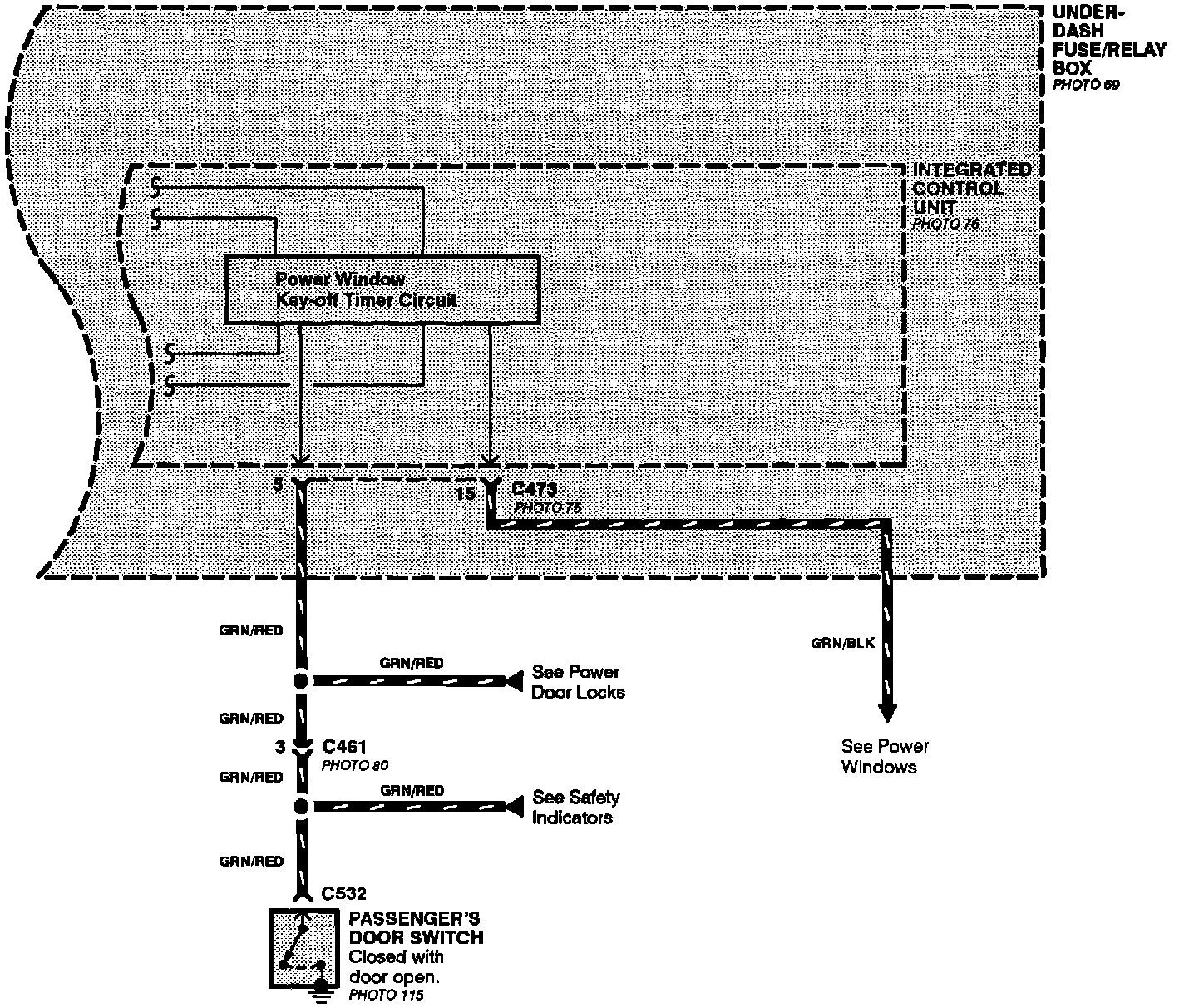

Integrated Control Unit - Part 3 of 4:
Integrated Control Unit - Part 4 of 4:
