Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom-to-Component Chart >> Part 1 of 2

Part 1 of 2

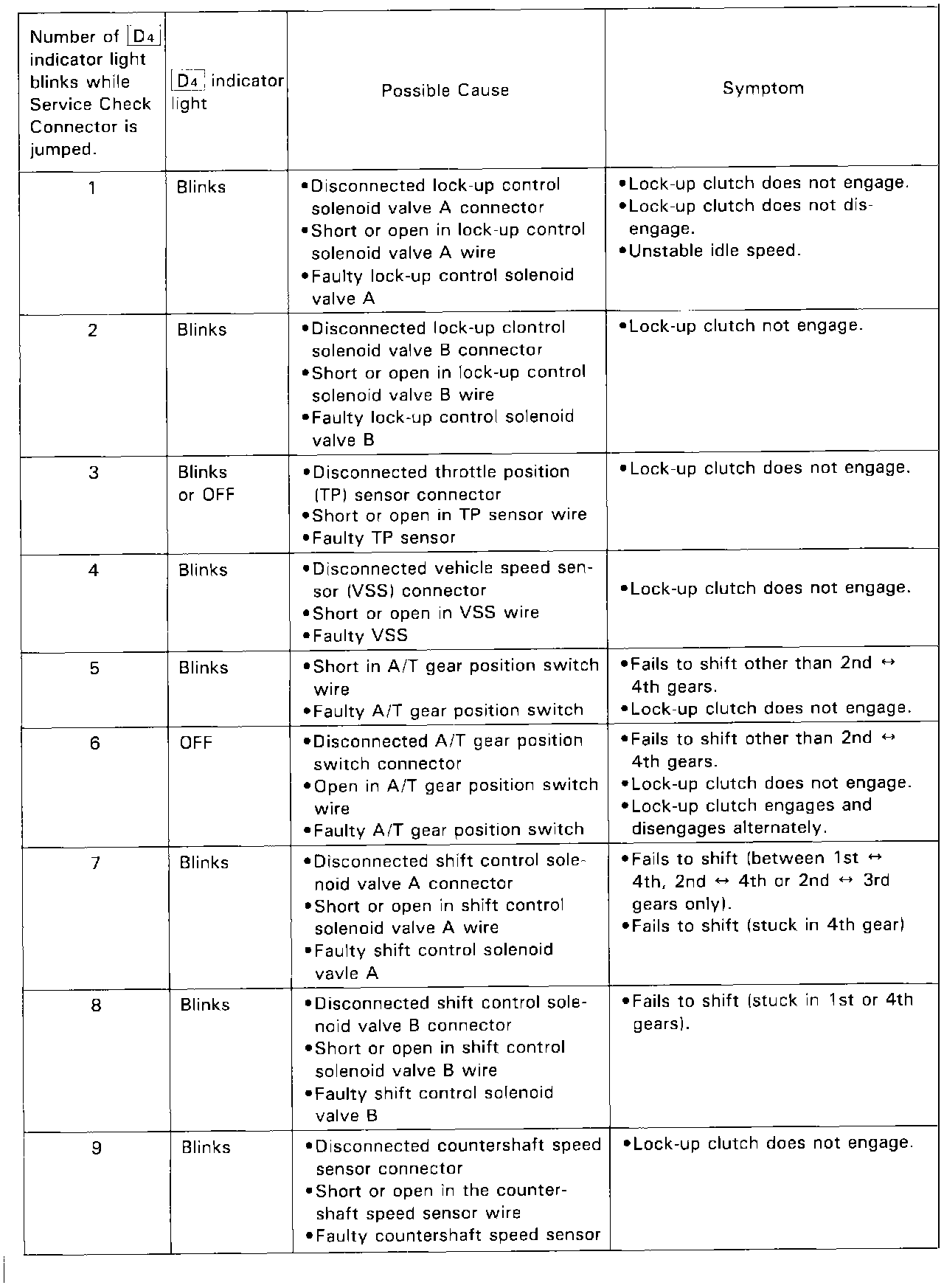

Symptom-to-Component Chart (Part 1 Of 2):
