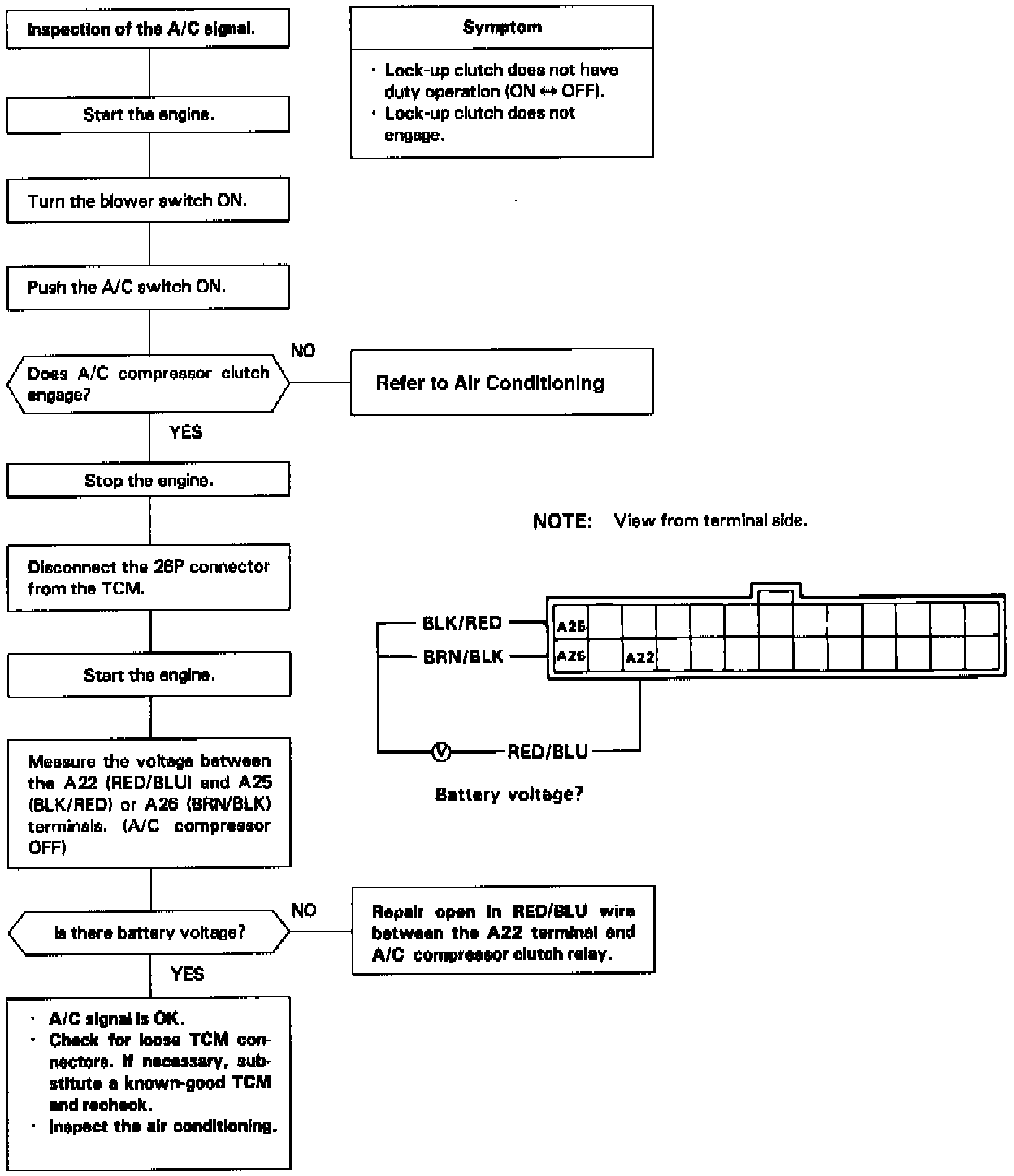

A/C Signal Inspection (Lock-Up Clutch Does Not Engage)
A/C Signal Inspection (Lock-Up Clutch Does Not Engage)
Inspection Of The A/C Signal:
