Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Component Tests and General Diagnostics >> Part 1 of 3

Part 1 of 3

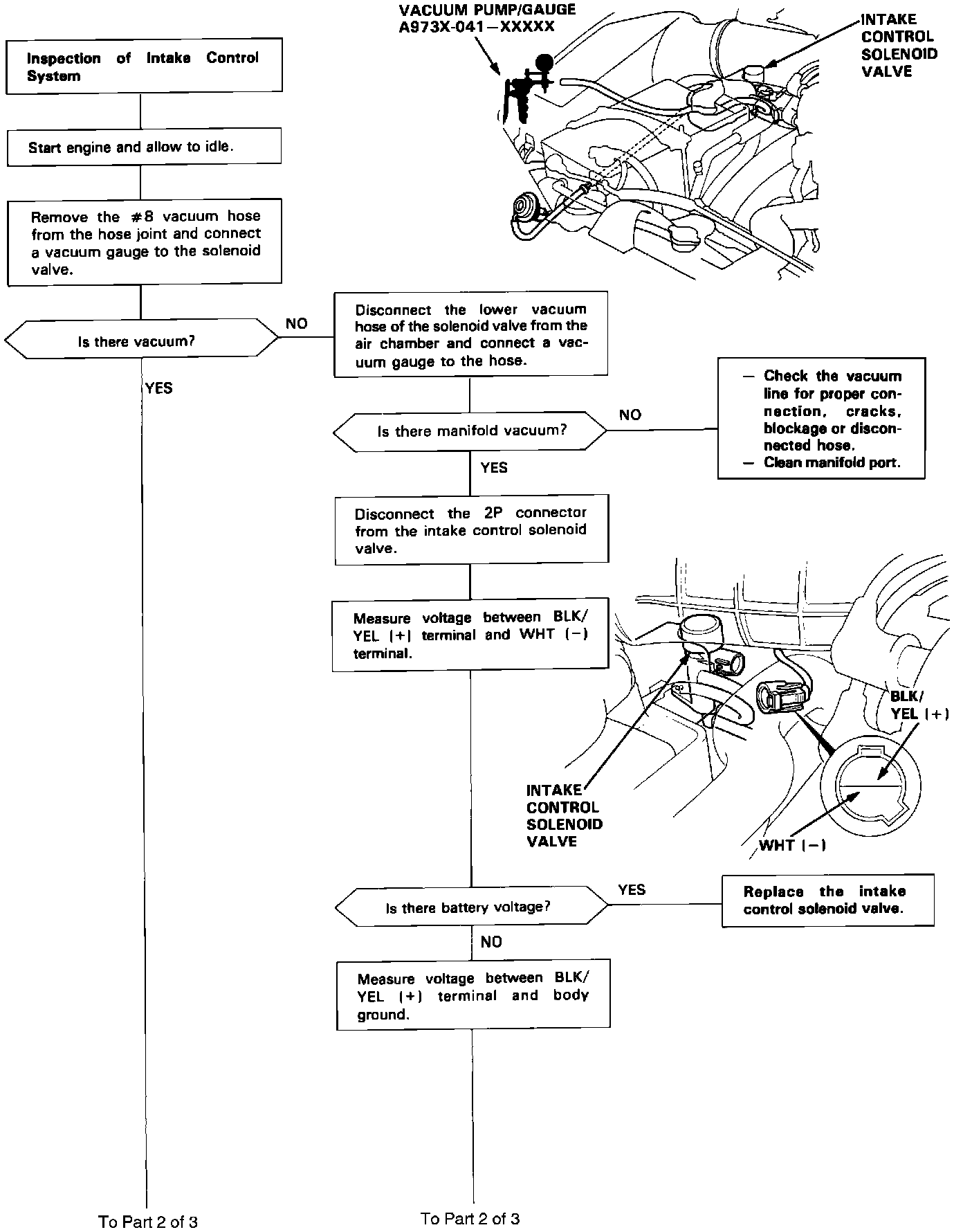

Intake Control System (Part 1 Of 3):
