Fuel Tank Pressure Release Valve: Testing and Inspection

Evaporative Emission Control System:

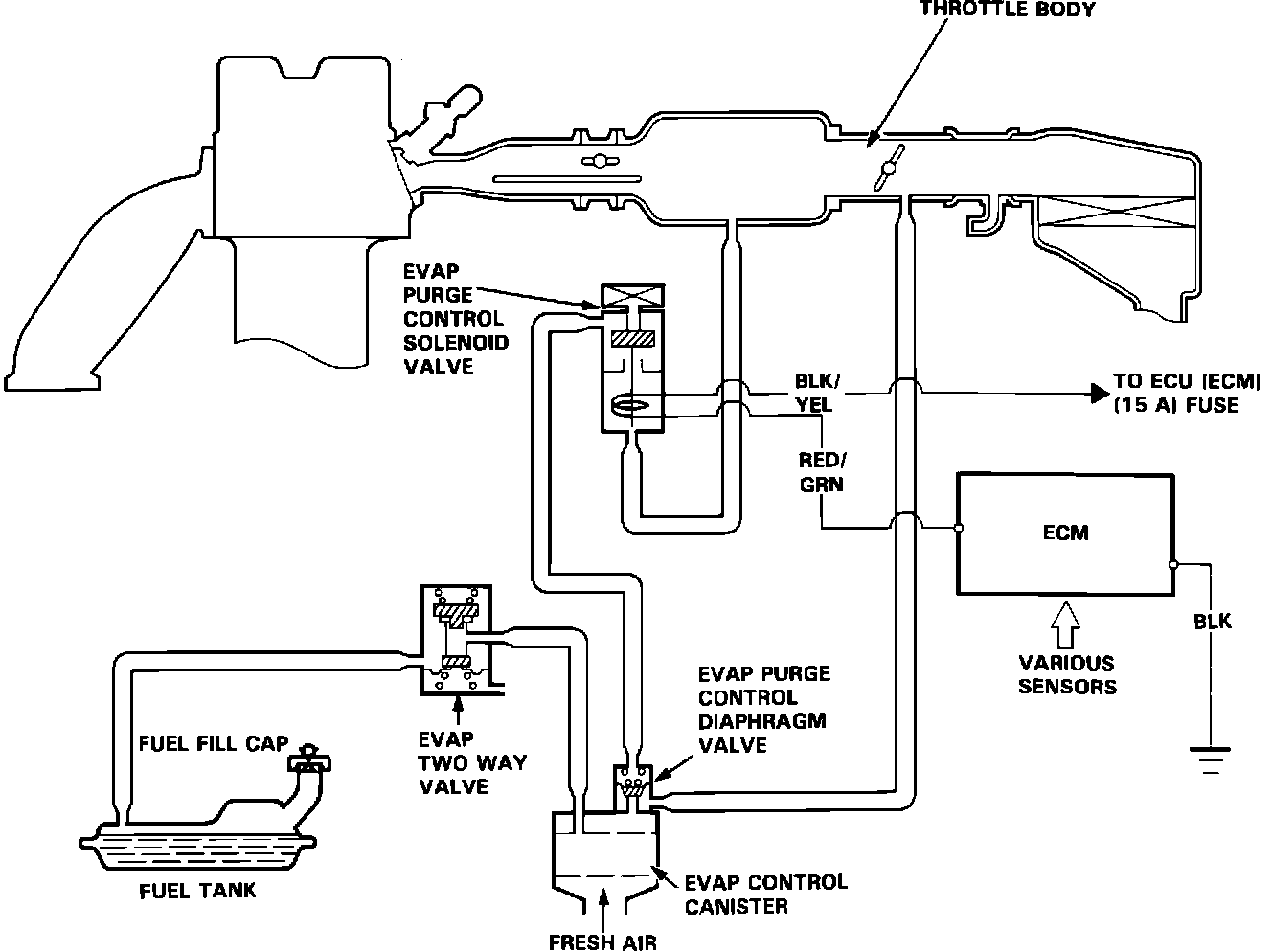

EVAP SYSTEM DIAGRAM

TWO-WAY VALVE TEST:
1. Remove the fuel filler cap.

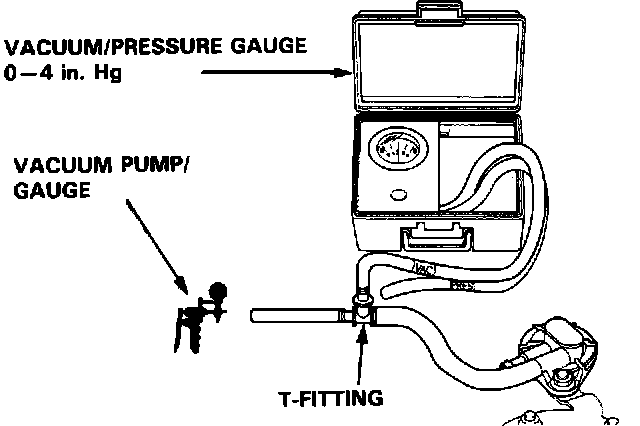

2. Remove vapor line from the fuel tank and connect a vacuum/pressure gauge and pump via a T-fitting.

Two Way Valve Testing:

3. Apply vacuum slowly and continuously while watching the gauge.
Vacuum should stabilize momentarily at 5 to 15 mmHg (0.2 to 0.6 in.Hg).
If vacuum stabilizes (valve opens) below 5 mmHg (0.2 in.Hg) or above 15 mmHg (0.6 in.Hg), install new valve and retest.
4. Move vacuum pump hose from vacuum to pressure side.

Two Way Valve Testing:

5. Slowly pressurize the vapor line while watching the gauge.
Pressure should momentarily stabilize at 10 to 35 mmHg (0.4 to 1.4 in.Hg).
If pressure stabilizes (valve opens) below 10 mmHg (0.4 in.Hg) or above 35 mmHg (1.4 in.Hg), install new valve and retest.
