Fuel Return Line: Testing and Inspection

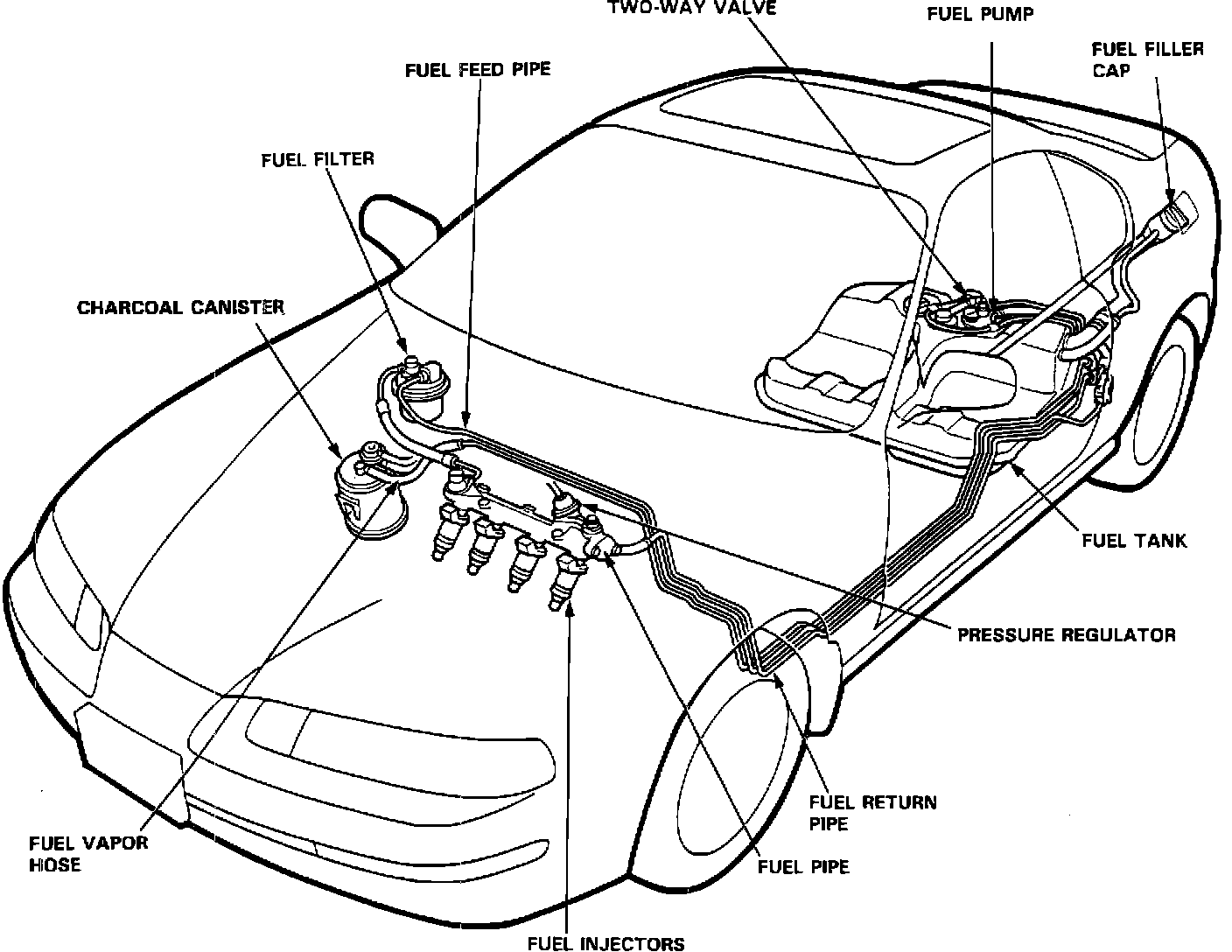

Component Location:

INSPECTION:
1. Check the hoses and pipes for cracking, bending, deformation or restrictions.
2. Check the canister for restrictions
3. Check the fuel filter for restrictions and damage.
4. Check the fuel rail at all of its attachment points for any sign of leakage.
