Fuel Injector: Testing and Inspection

Code 16 is indicated, follow flow chart for diagnosis of fuel injectors and wiring harness.

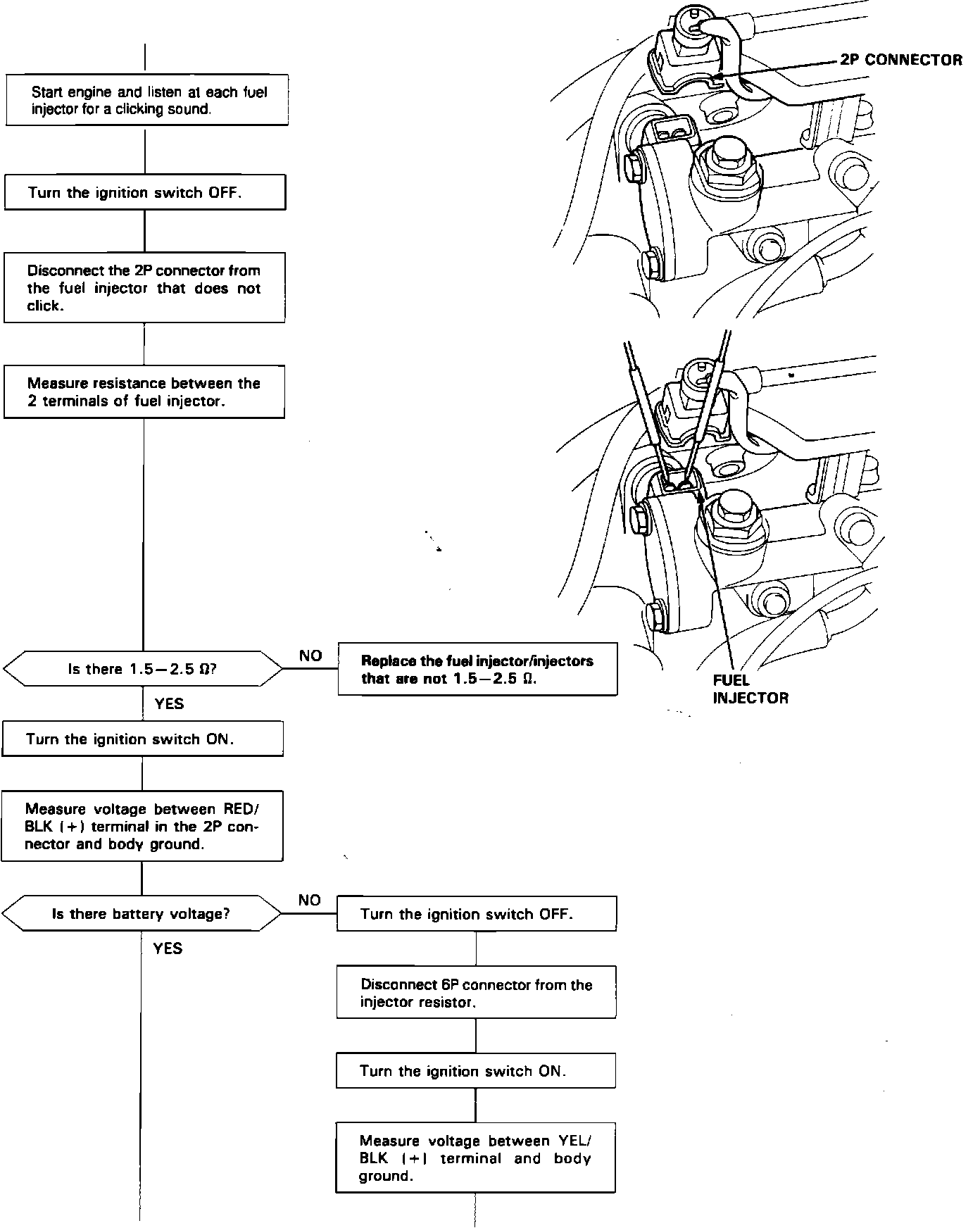

Fuel System Testing:

1 of 3

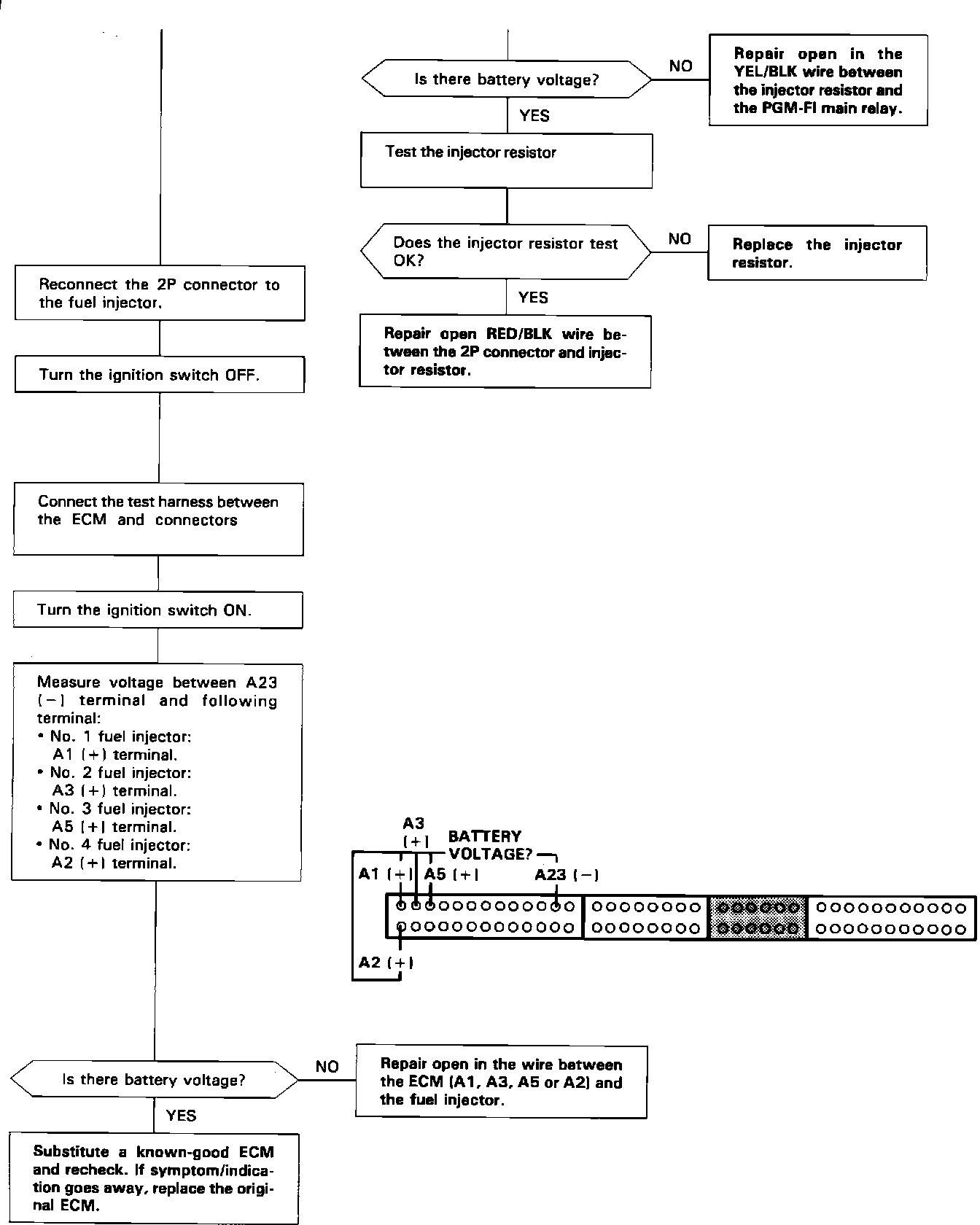

Fuel System Testing:

2 of 3

Fuel System Testing:

3 of 3
