Exhaust Gas Recirculation: Testing and Inspection

Exhaust Gas Recirculation System:

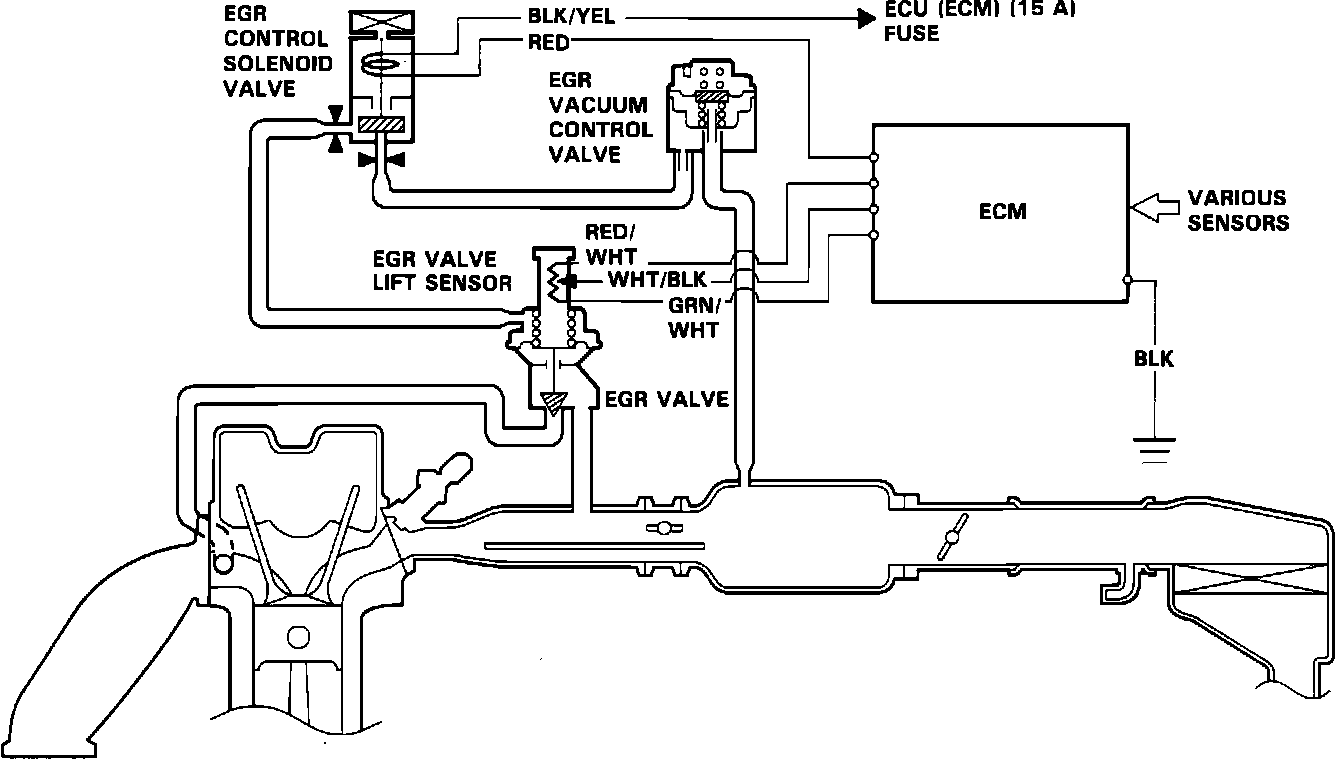

EGR SYSTEM DIAGRAM

EGR System Testing Procedures:

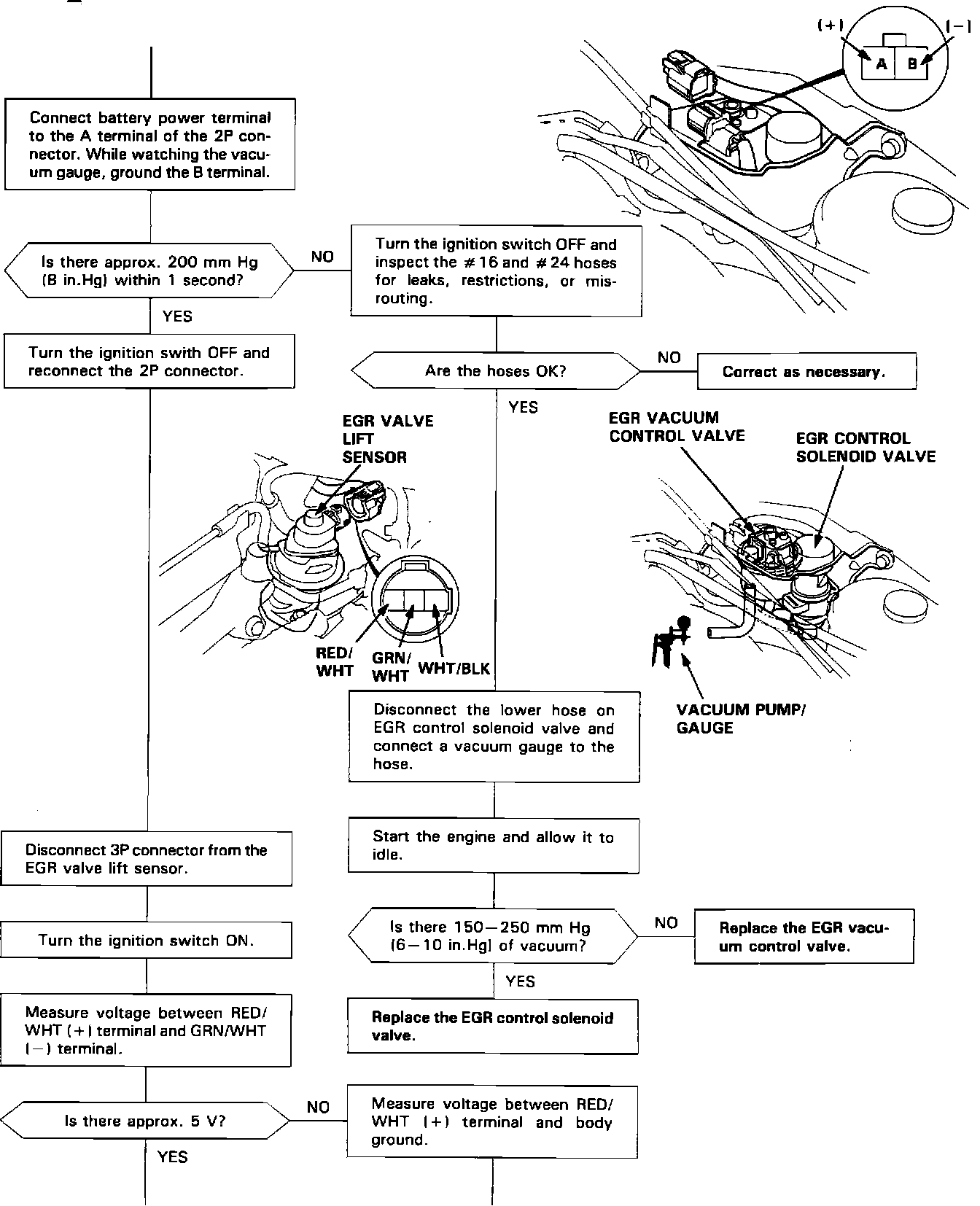

1 OF 5

EGR System Testing Procedures:

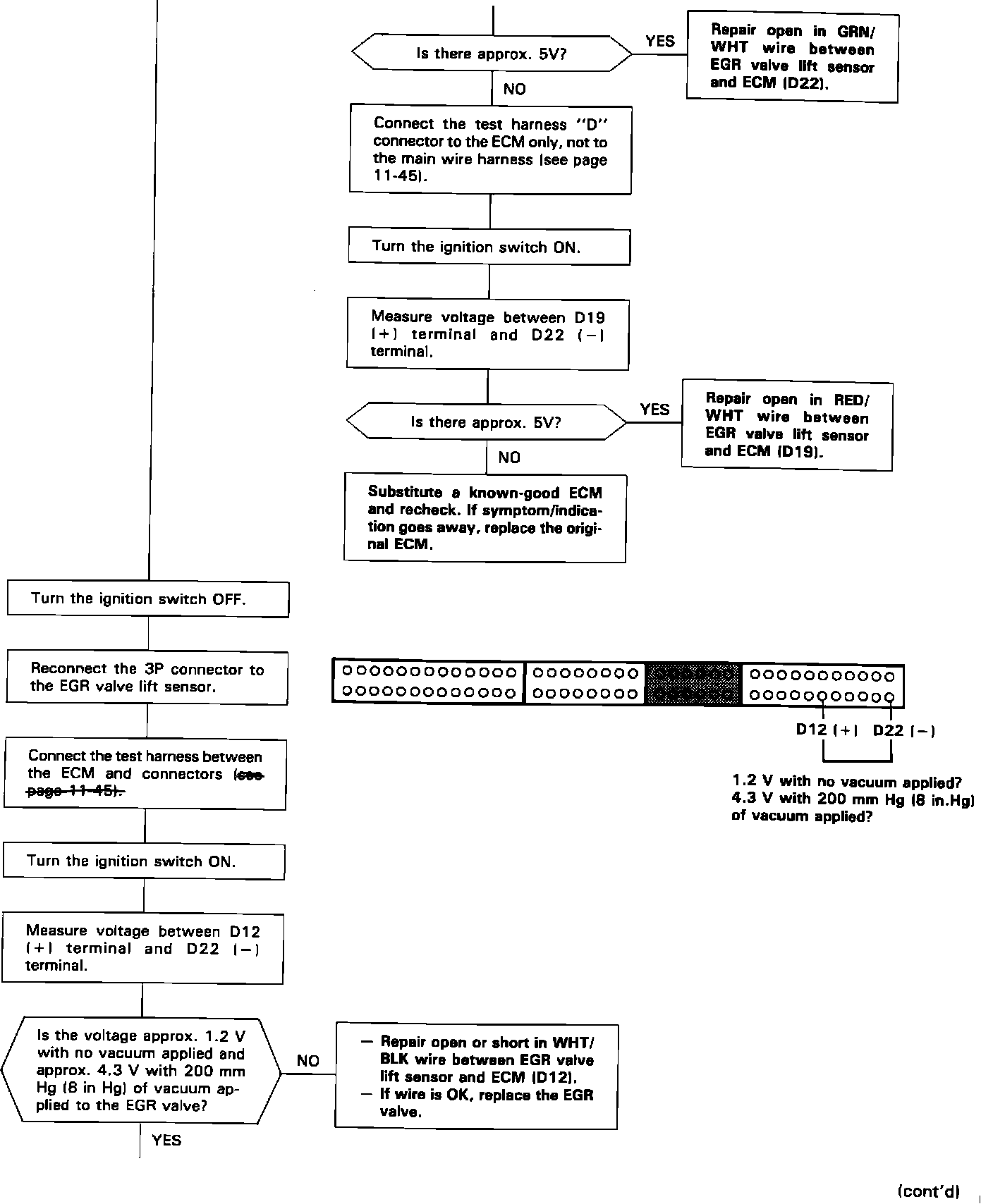

2 OF 5

EGR System Testing Procedures:

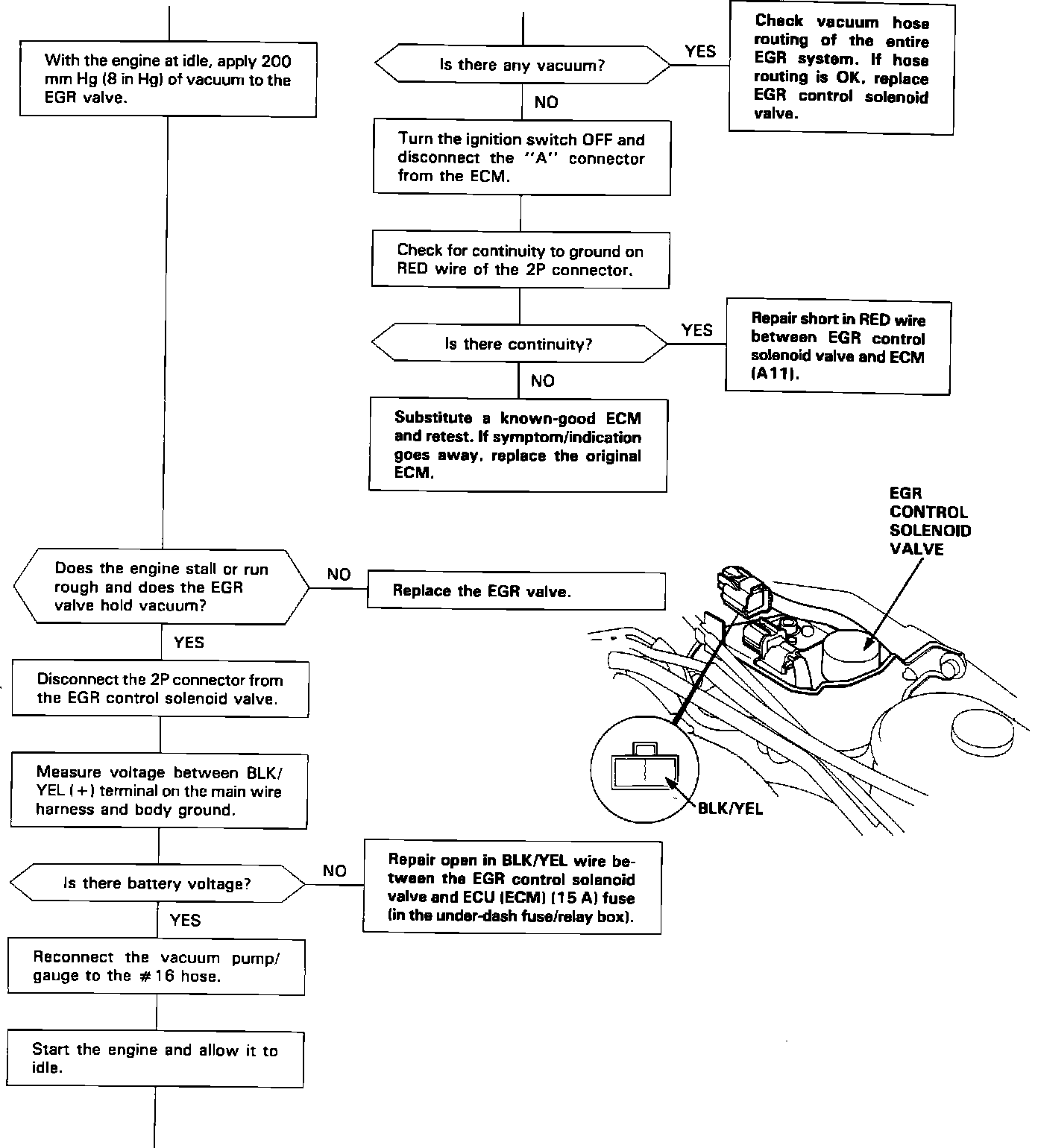

3 OF 5

EGR System Testing Procedures:




4 OF 5

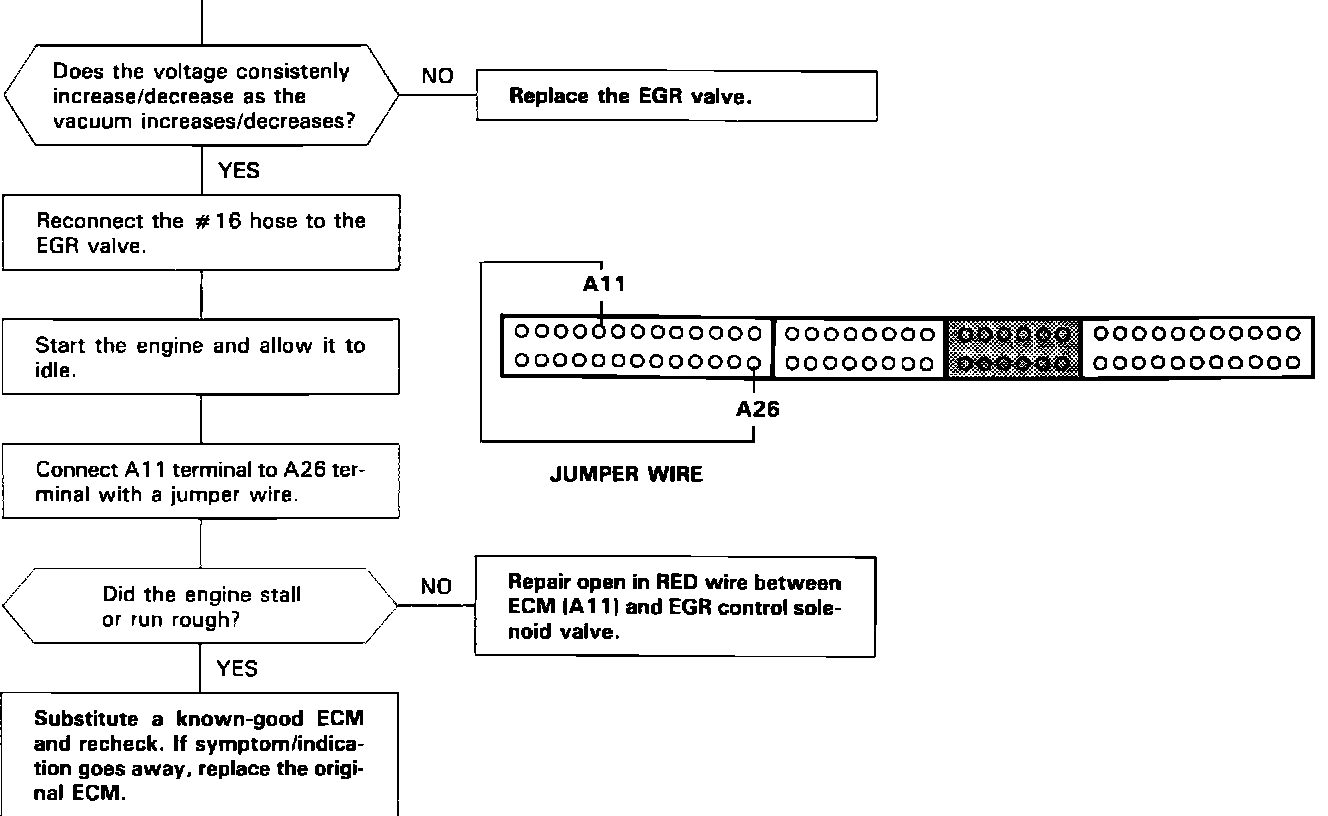

EGR System Testing Procedures:




5 OF 5


EGR SYSTEM TEST
