Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Testing and Inspection >> Part 1 of 3

Part 1 of 3

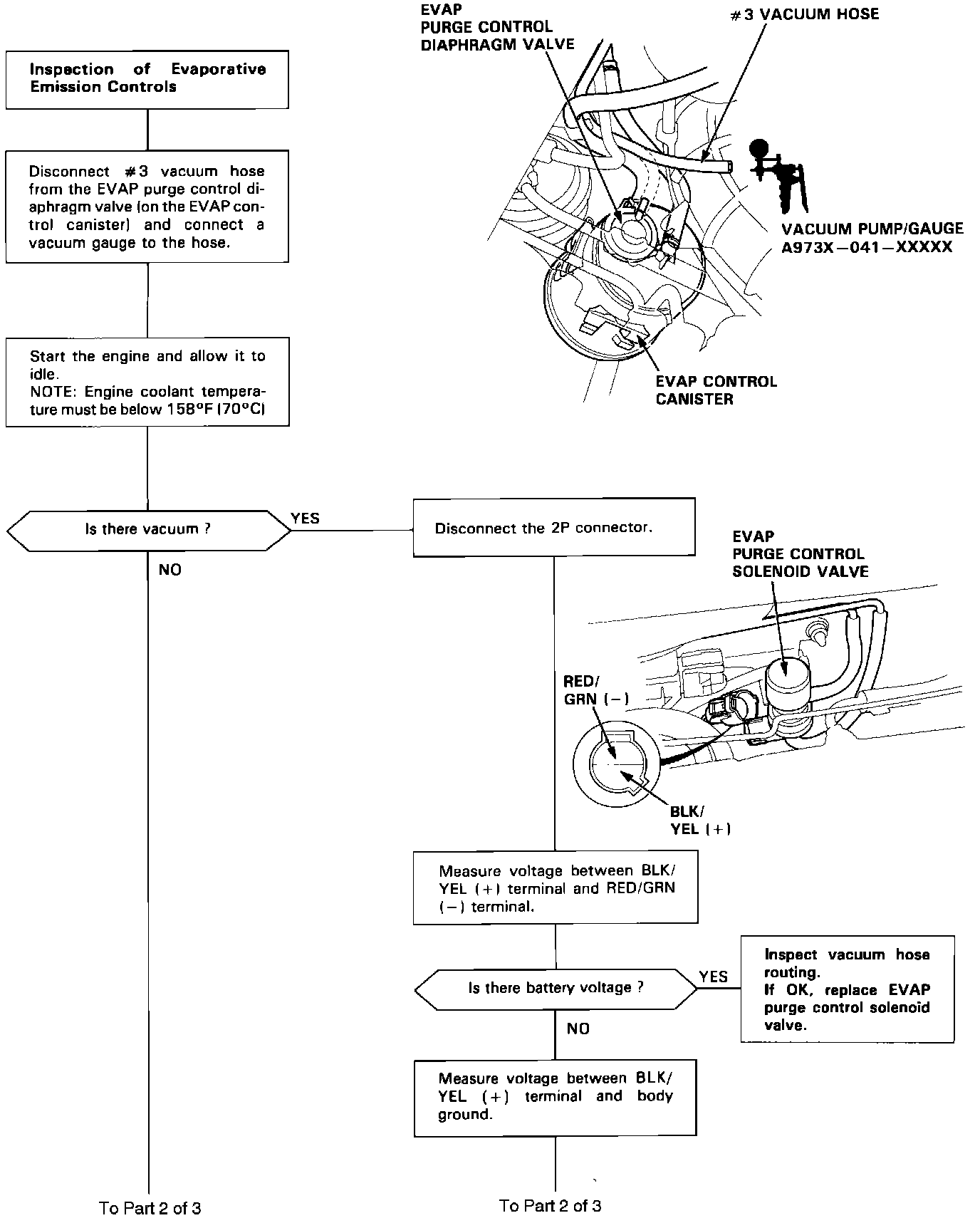

Evaporative Emission (EVAP) Controls (Part 1 Of 3):
