Honda
>>
1993
>>
Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
U.S.A.
>>
SI VTEC Model
SI VTEC Model
Schematic View Vacuum Hose Routing:
COMPLETE VACUUM AND VAPOR HOSE SCHEMATIC

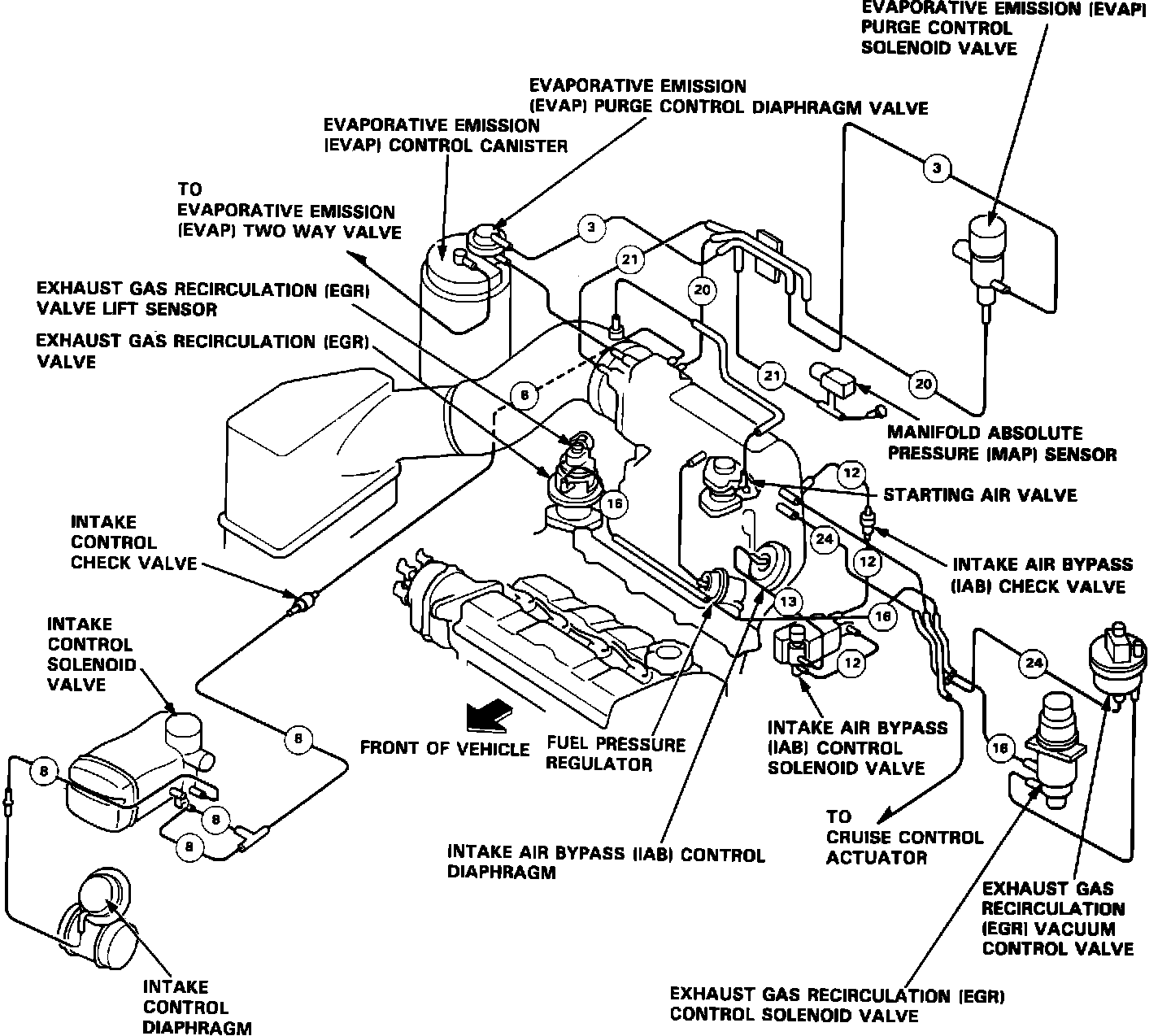

Vacuum Hose Routing Engine Compartment:
ENGINE VACUUM HOSE ROUTING
