Cranking Signal: Description and Operation

Starter Switch Signal:

PURPOSE
The 12 volt signal informs the control module the engine is being started.

OPERATION

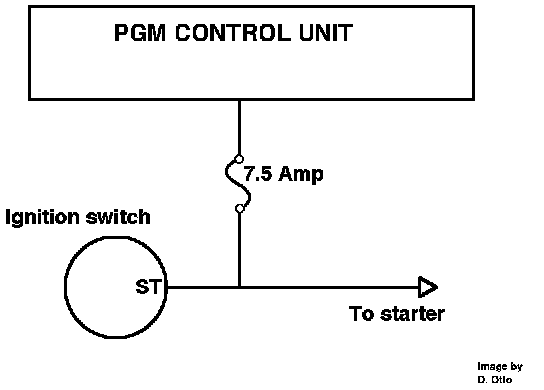

The starter signal is generated by the ignition switch whenever it is in the start position. The ECM uses the starter signal for fuel and timing control at engine start-up.
