Testing For a Short With a Short Circuit Locator (Short Finder)

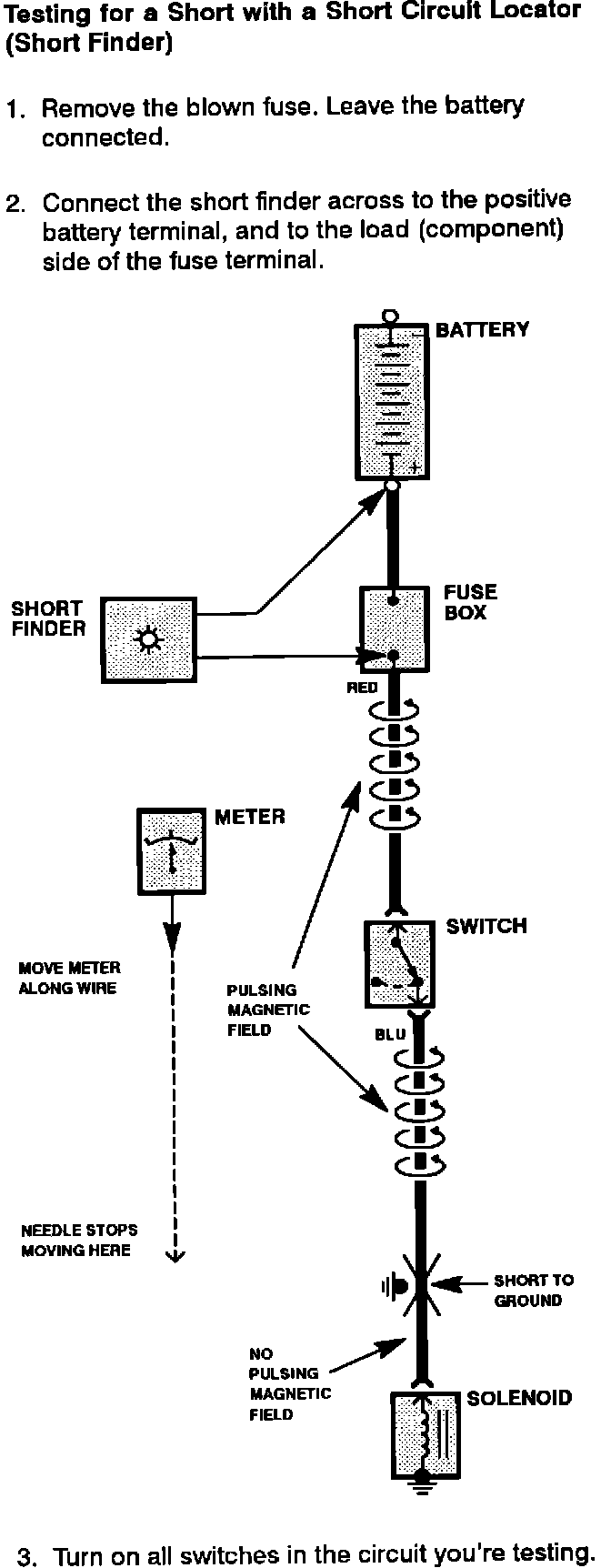

Troubleshooting Tests: Testing For A Short With A Short Circuit Locator (Short Finder):

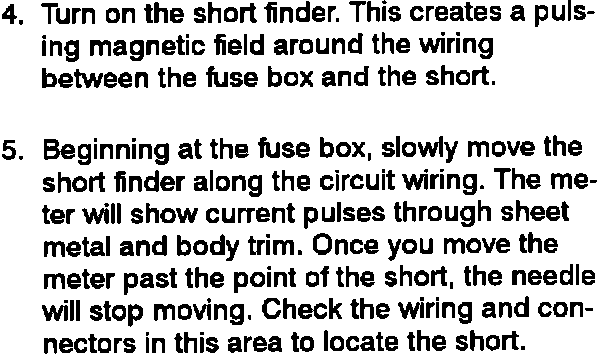

Troubleshooting Tests: Testing For A Short With A Short Circuit Locator (Short Finder):
