Home
>>
Honda
>>
1993
>>
Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Engine Compartment Left Side
>>
S Model
S Model

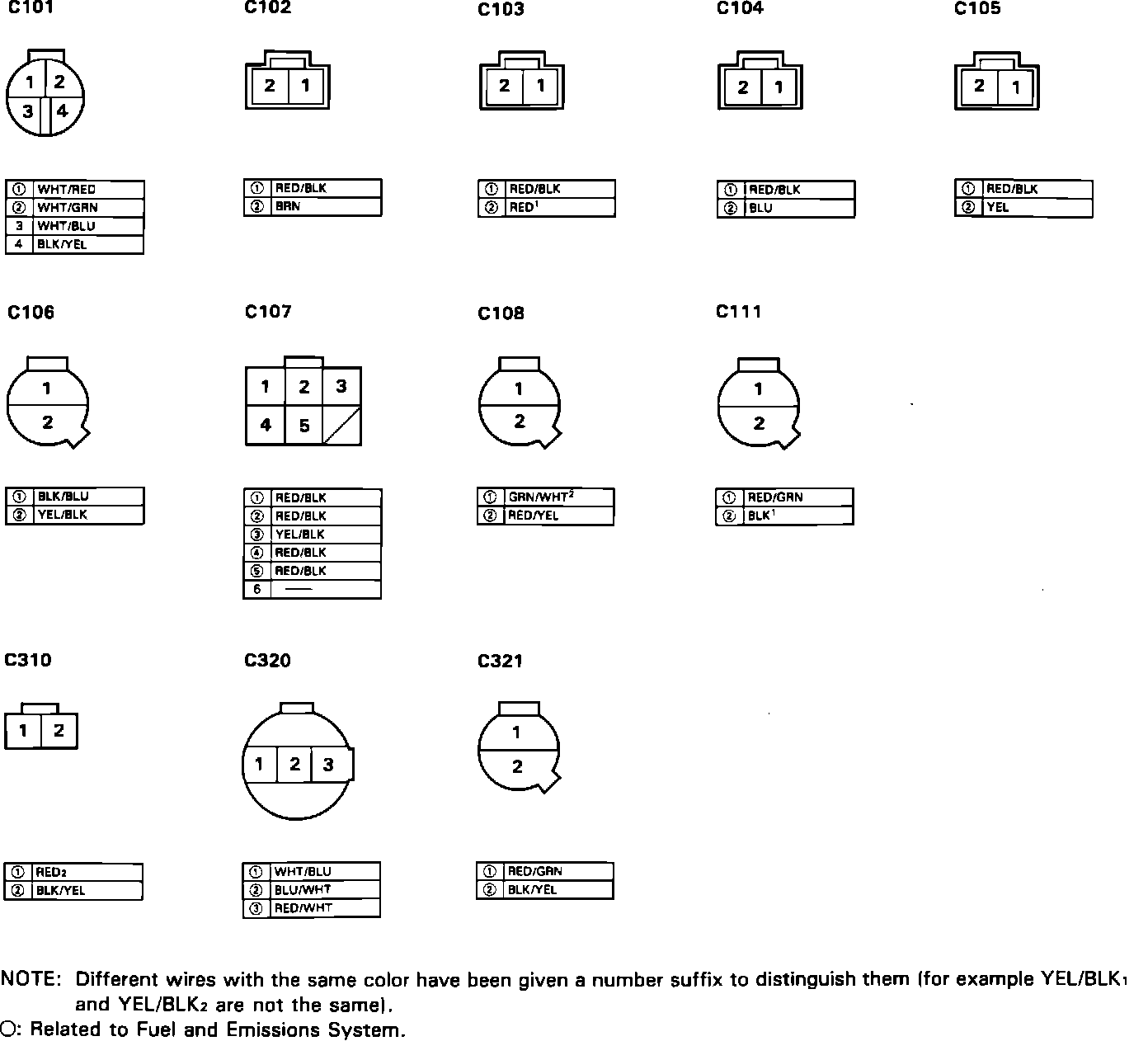

Electrical Connector Identification And Wire Location:
