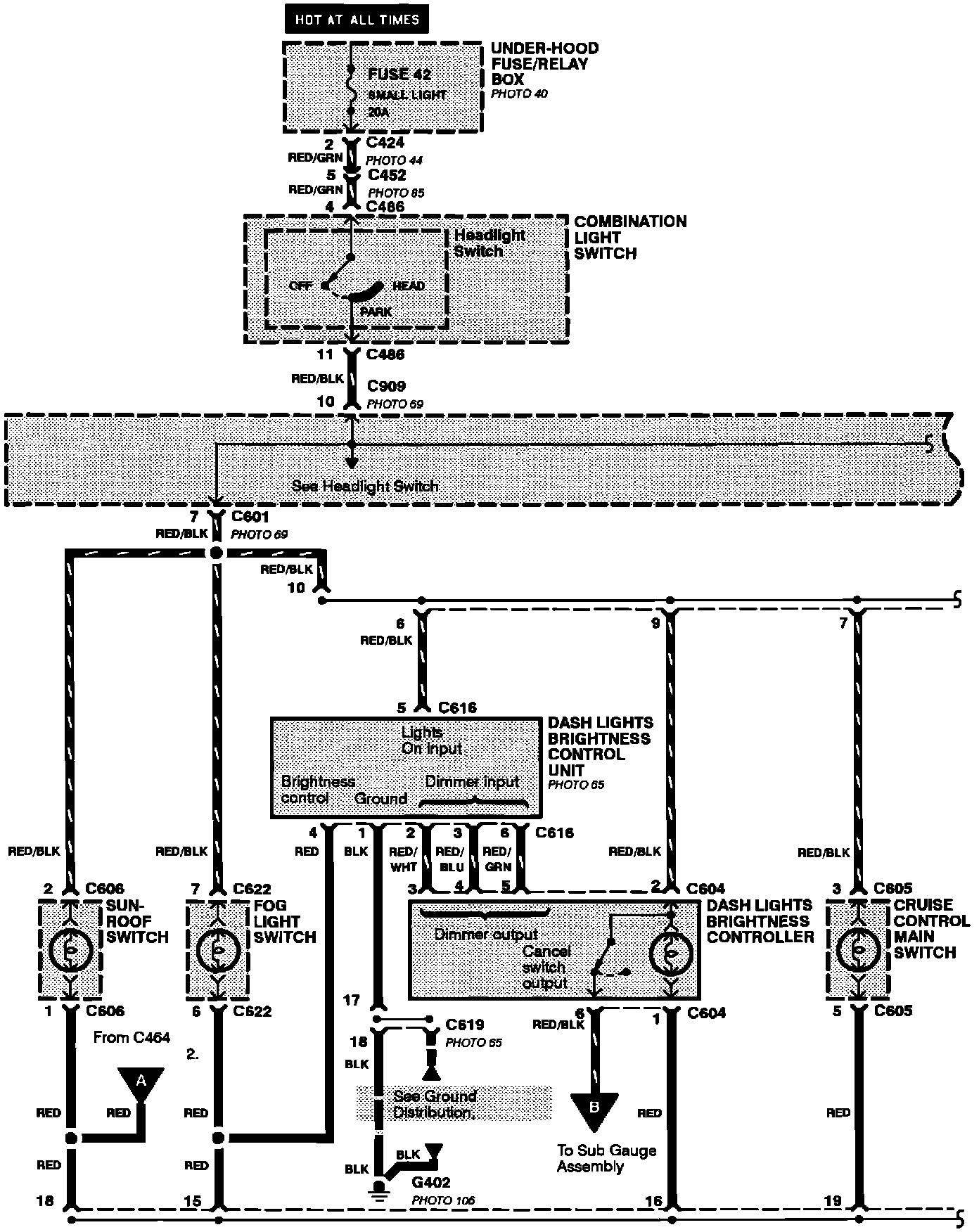

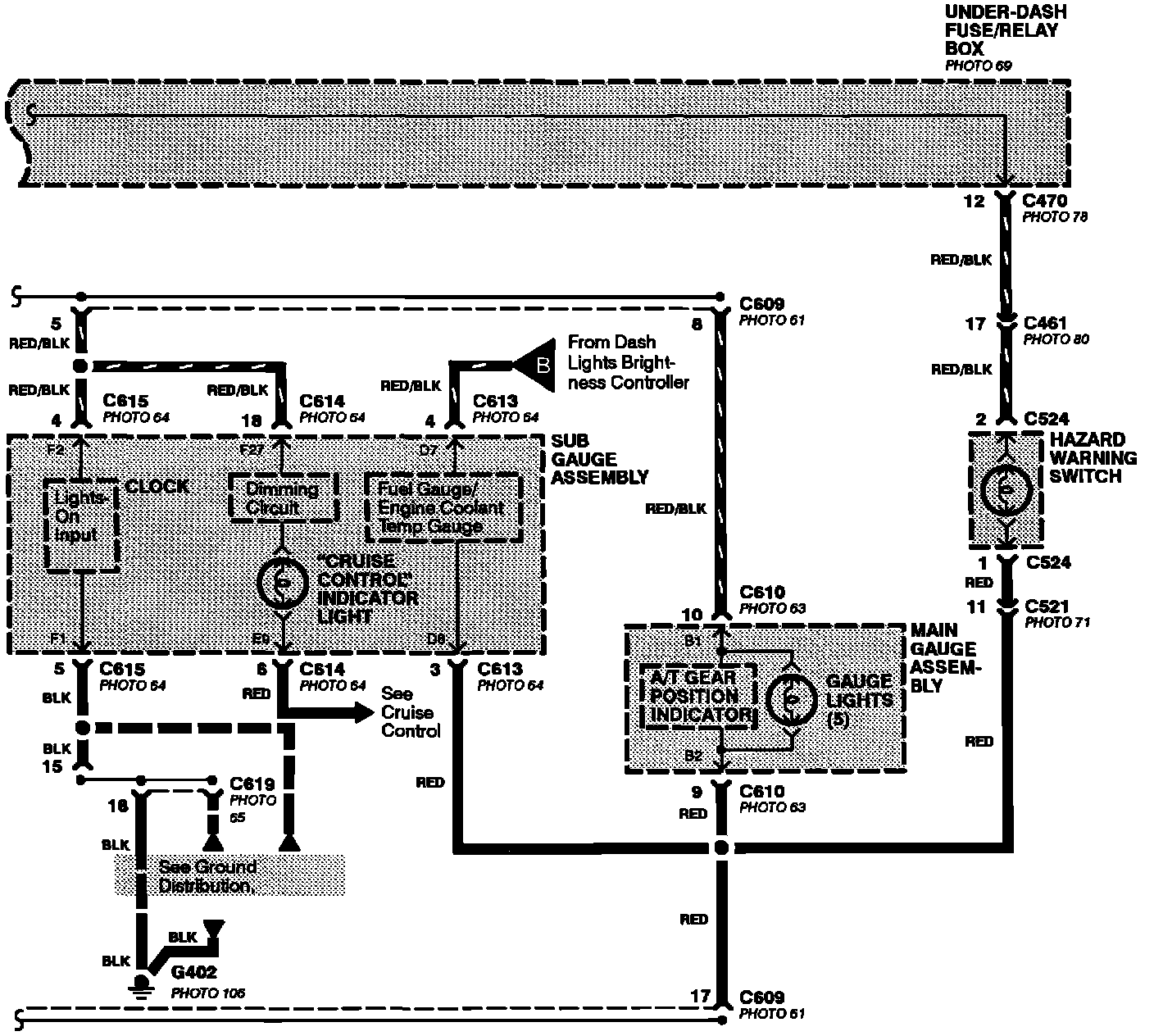

Display Illumination
Display Illumination

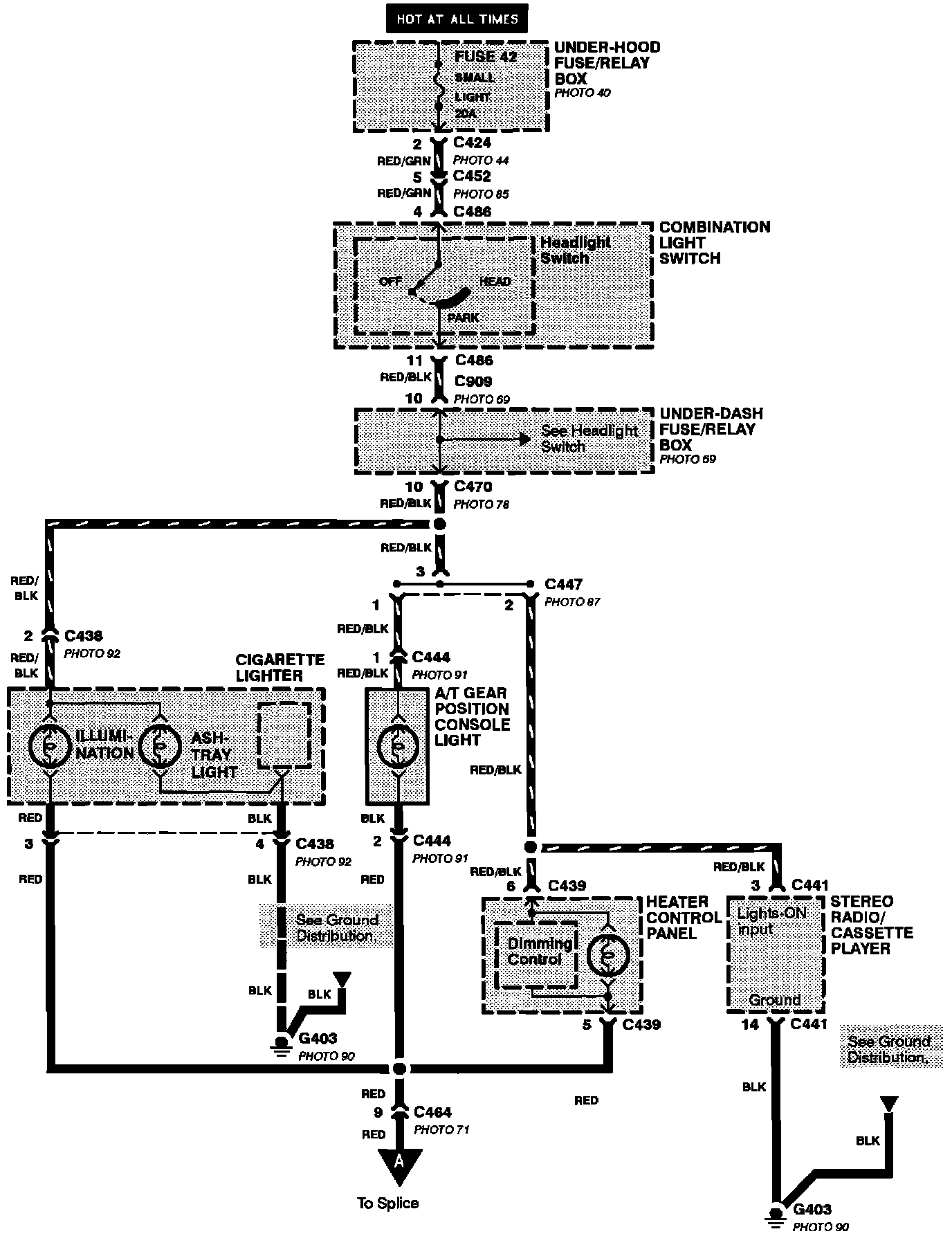

Interior Lights: Dash And Console:
Interior Lights: Dash And Console:
Interior Lights: Dash And Console:
