Home >> Honda >> 1993 >> Prelude L4-2.2L DOHC (VTEC) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Charge Lamp/Indicator >> Testing and Inspection

Charge Lamp/Indicator: Testing and Inspection

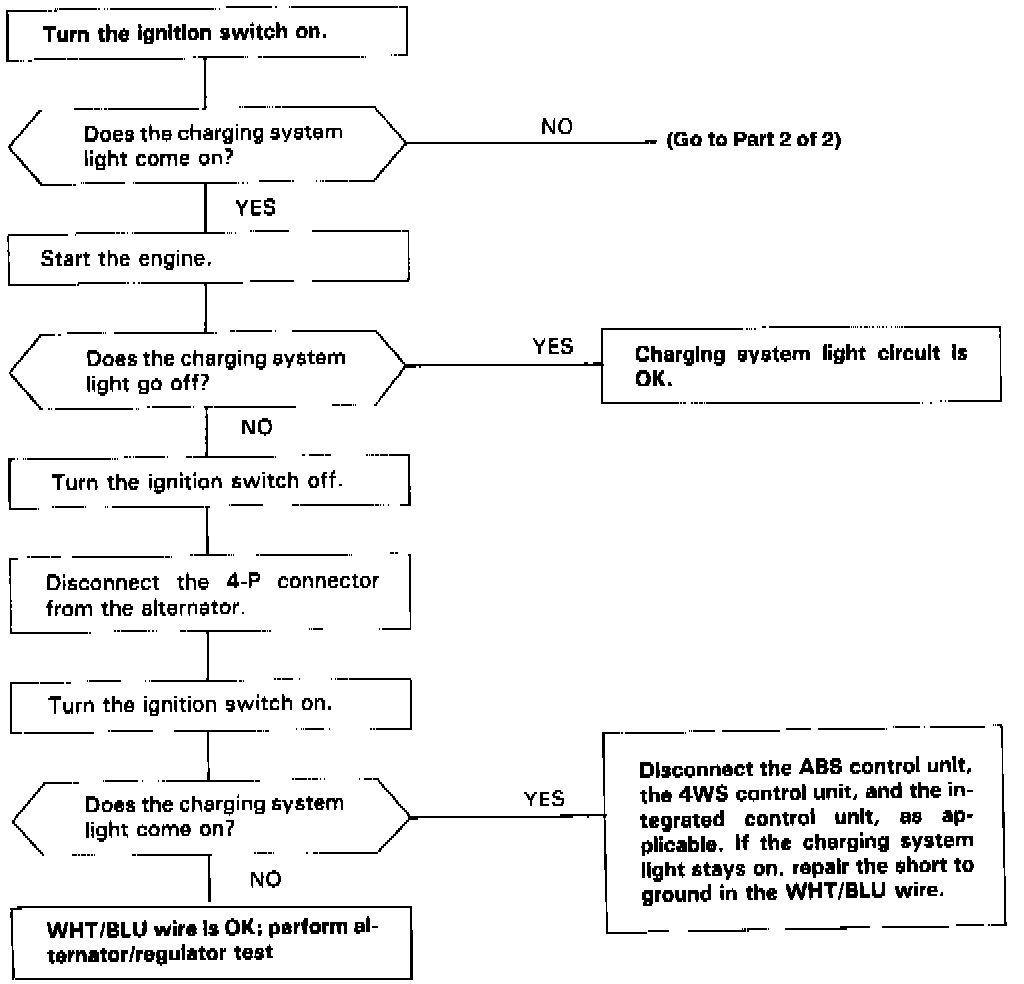

Charging System Light Test (Part 1 Of 2):

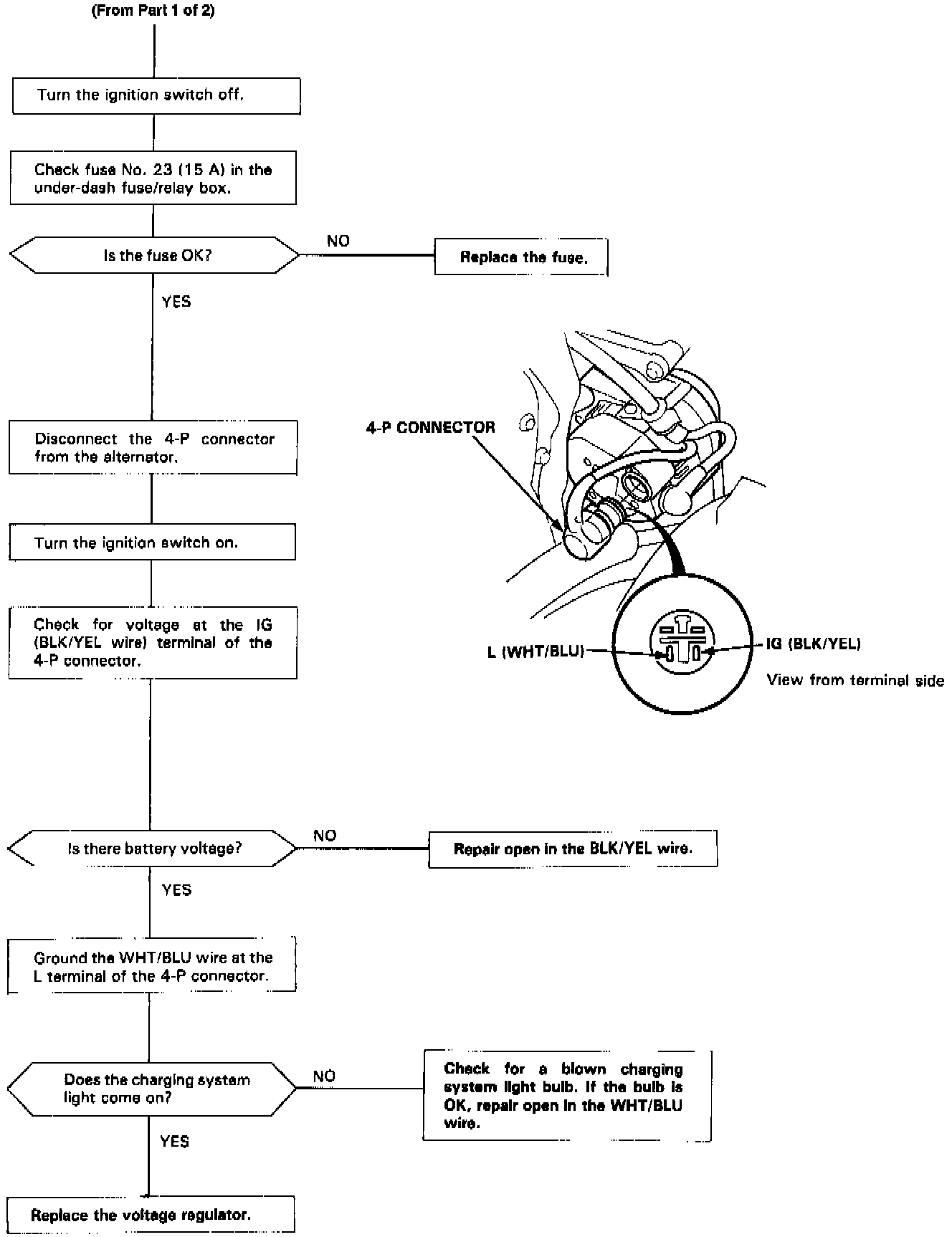

Charging System Light Test (Part 2 Of 2):
